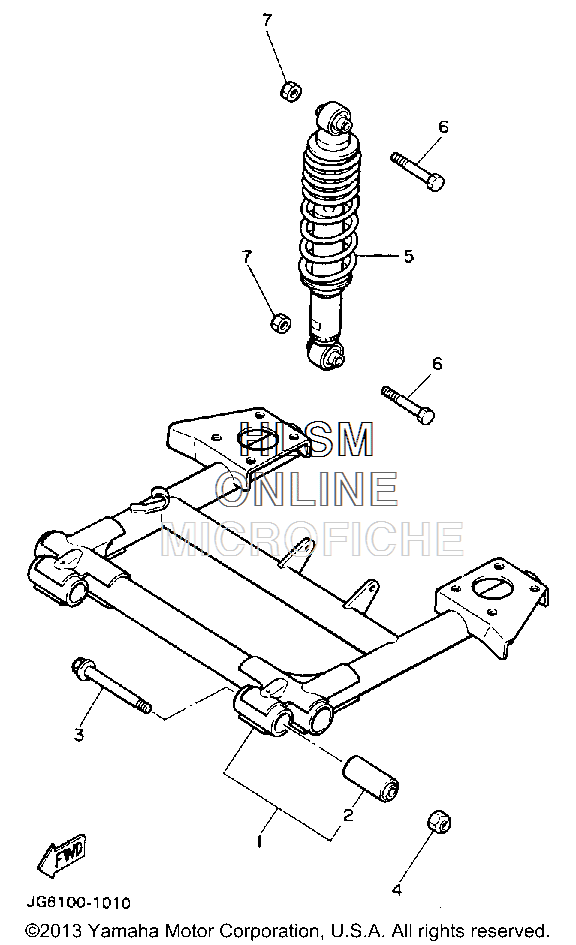

SUSPENSION - REAR SHOCK ABSORBER для Yamaha GOLF CAR ELECTRIC [G9EH1] (JG6) - 1992 года выпуска
-
№АртикулНазвание
-
1J56-F2110-W0-00 REAR ARM COMP. (J56-F2110-00-00)REAR ARM COMP. (J56-F2110-00-00)
-
2J10-22123-00-00 ...BUSH 1...BUSH 1
-
390105-10359-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
490185-10115-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
5JG6-F2210-00-00 SHOCK ABSORBER ASSEMBLY, REARSHOCK ABSORBER ASSEMBLY, REAR
-
697012-10050-00 BOLTBOLT
-
795601-10100-00 NUT, UNUT, U
