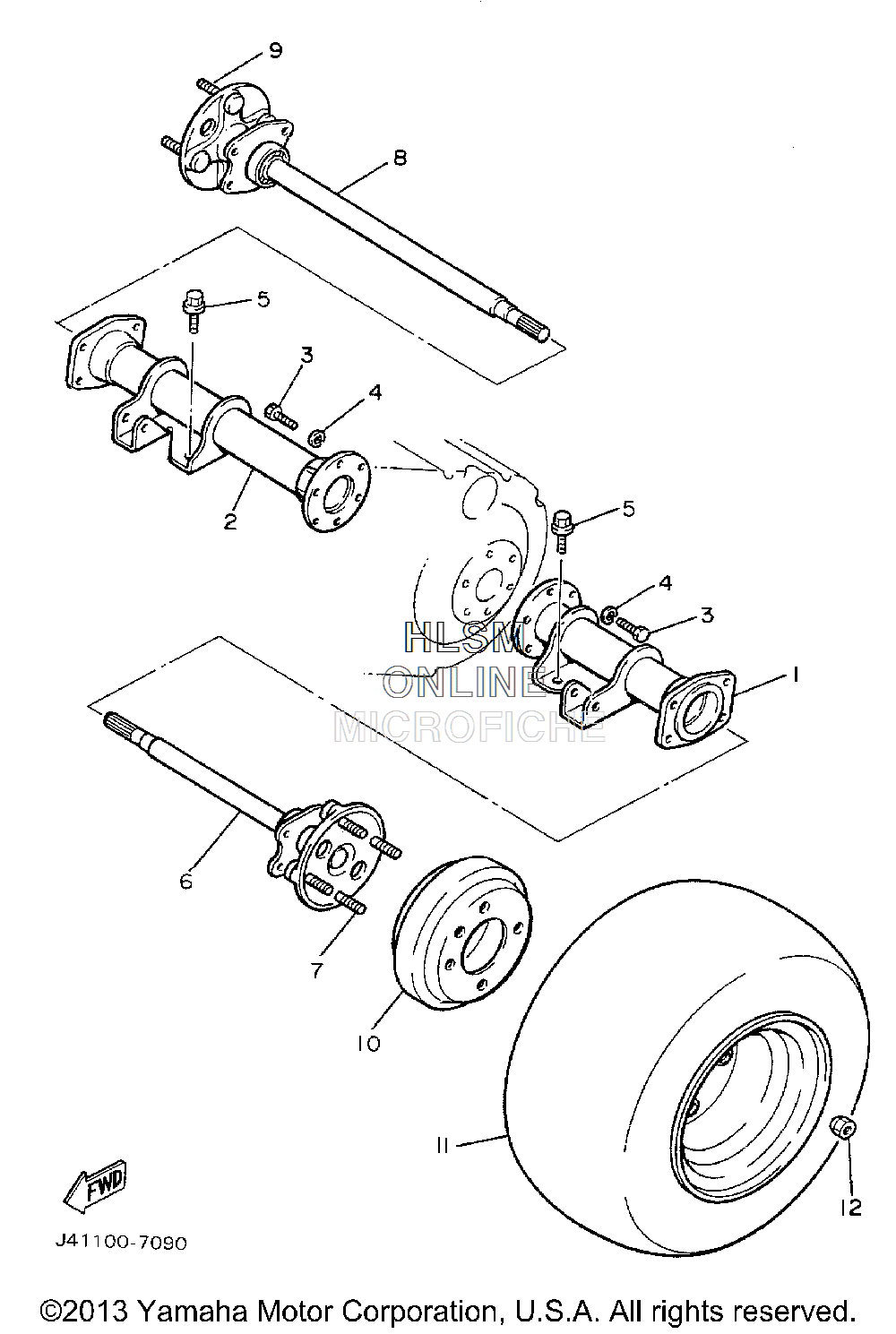

WHEEL - REAR W/ AXLE ASSY для Yamaha GOLF CAR ELECTRIC [G9EH1] (JG6) - 1992 года выпуска
-
№АртикулНазвание
-
1J41-46540-01-00 REAR AXLE HOUSING COMP.REAR AXLE HOUSING COMP.
-
2J41-46550-01-00 REAR AXLE HOUSING COMP. 2REAR AXLE HOUSING COMP. 2
-
397011-08025-00 BOLTBOLT
-
492990-08100-00 WASHER, SPRINGWASHER, SPRING
-
595811-10020-00 BOLT, FLANGE (95822-10020-00)BOLT, FLANGE (95822-10020-00)
-
6J41-46510-00-00 REAR AXLE SHAFT COMP.REAR AXLE SHAFT COMP.
-
790114-12004-00 ...BOLT, SERRATION...BOLT, SERRATION
-
8J41-46520-00-00 REAR AXLE SHAFT COMP. 2REAR AXLE SHAFT COMP. 2
-
990114-12004-00 ...BOLT, SERRATION...BOLT, SERRATION
-
10J55-G6521-00-00 DRUMDRUM
-
11J55-F5100-00-00 FRONT WHEEL ASSEMBLYFRONT WHEEL ASSEMBLY
-
1290179-12262-00 NUTNUT
