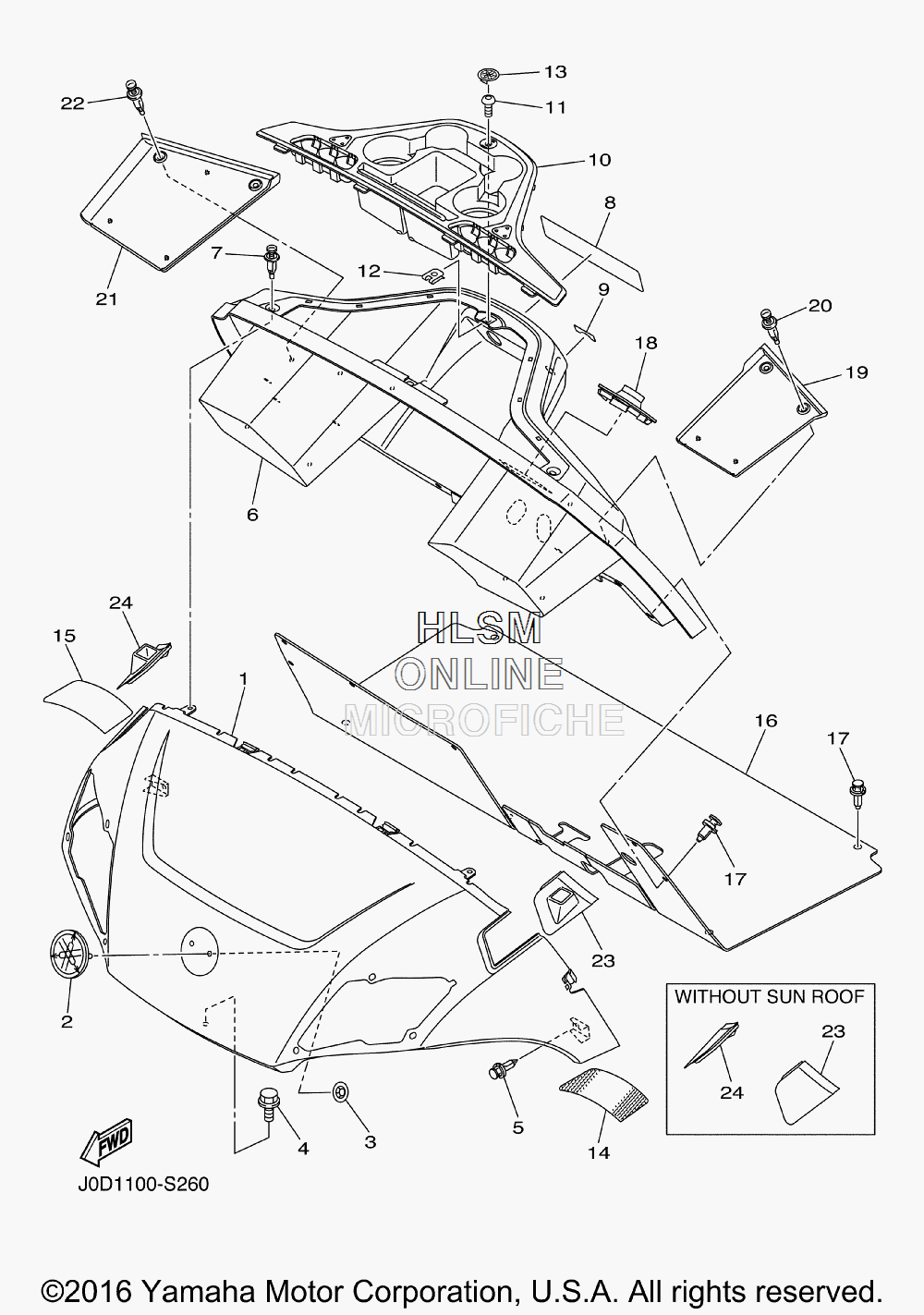

BODY для Yamaha DRIVE2 PTV (DR2A17PTV SERIAL: J0D-000101) - 2017 года выпуска
-
№АртикулНазвание
-
1J0D-K8115-A0-00 COWL, FRONT (FOR BW1 - BLUISH WHITE)COWL, FRONT (FOR BW1 - BLUISH WHITE)
-
1J0D-K8115-00-00 COWL, FRONT (FOR DNBME - GRAYISH BLUE)COWL, FRONT (FOR DNBME - GRAYISH BLUE)
-
1J0D-K8115-20-00 COWL, FRONT (FOR LNYM8 - CHAMPAGNE METALLIC)COWL, FRONT (FOR LNYM8 - CHAMPAGNE METALLIC)
-
1J0D-K8115-30-00 COWL, FRONT (FOR LNMP - SILVER METALLICCOWL, FRONT (FOR LNMP - SILVER METALLIC
-
1J0D-K8115-40-00 COWL, FRONT (FOR DYNM2 - DARK YELLOWISH GRAY)COWL, FRONT (FOR DYNM2 - DARK YELLOWISH GRAY)
-
1J0D-K8115-70-00 COWL, FRONT (FOR DRMV - DEEP RED METALLIC)COWL, FRONT (FOR DRMV - DEEP RED METALLIC)
-
1J0D-K8115-80-00 COWL, FRONT (FOR BMG - BLACK METALLIC)COWL, FRONT (FOR BMG - BLACK METALLIC)
-
1J0D-K8115-90-00 COWL, FRONT (FOR VPBM6 - PURPLISH BLUE METALLIC)COWL, FRONT (FOR VPBM6 - PURPLISH BLUE METALLIC)
-
2J0B-F4161-00-00 EMBLEM 1EMBLEM 1
-
3JU0-K7573-00-00 NUT, SPECIALNUT, SPECIAL
-
490105-06831-00 BOLT, FLANGEBOLT, FLANGE
-
590269-06804-00 RIVETRIVET
-
6J0D-K8114-00-00 PANEL, FRONTPANEL, FRONT
-
790269-07803-00 RIVETRIVET
-
8J0B-K7768-00-00 LABEL, WARNING 8LABEL, WARNING 8
-
9J0D-K8282-00-00 PLATE, SWITCH PANELPLATE, SWITCH PANEL
-
10J0B-K835E-00-00 HOLDER, BEVERAGEHOLDER, BEVERAGE
-
1190111-05805-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
1290183-05008-00 NUT, SPRINGNUT, SPRING
-
13J0B-H2370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
14J0D-H333B-00-00 REFLECTOR 1REFLECTOR 1
-
15J0D-H334B-00-00 REFLECTOR, 2REFLECTOR, 2
-
16J0D-K8233-00-00 MAT, MAIN FLOOR 3MAT, MAIN FLOOR 3
-
1790269-09003-00 RIVETRIVET
-
18J0B-K8273-00-00 COVER, HOLECOVER, HOLE
-
19J0B-K8243-00-00 MAT, REAR BODY SIDE (LH)MAT, REAR BODY SIDE (LH)
-
2090269-07803-00 RIVETRIVET
-
21J0B-K8244-00-00 MAT, REAR BODY SIDE (RH)MAT, REAR BODY SIDE (RH)
-
2290269-07803-00 RIVETRIVET
-
23J0B-K832F-00-00 GROMMET, ROOF SUPPORT 1 (WITHOUT SUN ROOF)GROMMET, ROOF SUPPORT 1 (WITHOUT SUN ROOF)
-
23J0B-K832F-10-00 GROMMET, ROOF SUPPORT 1 (WITH SUN ROOF)GROMMET, ROOF SUPPORT 1 (WITH SUN ROOF)
-
24J0B-K832G-00-00 GROMMET, ROOF SUPPORT 2 (WITHOUT SUN ROOF)GROMMET, ROOF SUPPORT 2 (WITHOUT SUN ROOF)
-
24J0B-K832G-10-00 GROMMET, ROOF SUPPORT 2 (WITH SUN ROOF)GROMMET, ROOF SUPPORT 2 (WITH SUN ROOF)
