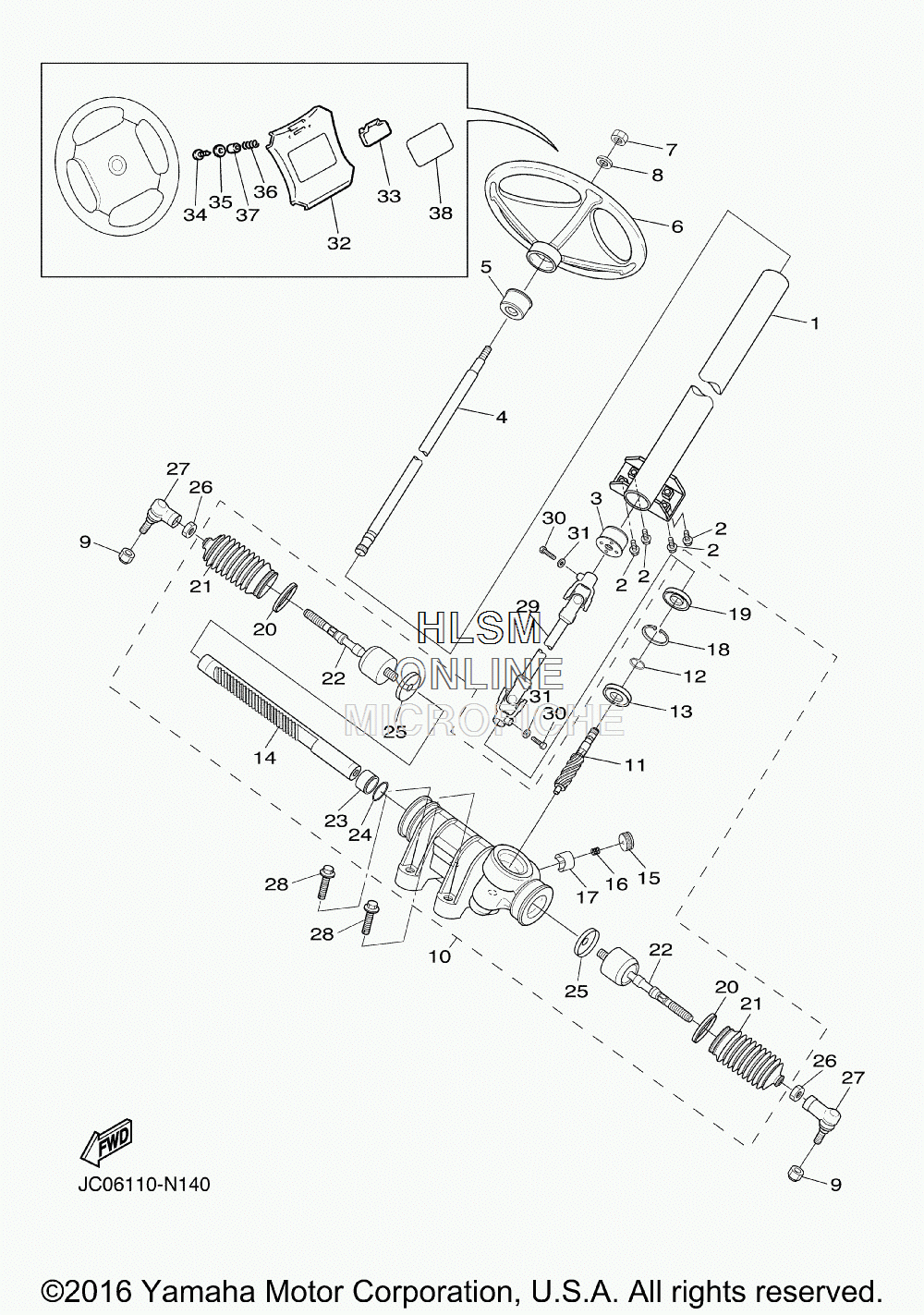

STEERING для Yamaha DRIVE2 PTV (DR2A17PTV SERIAL: J0D-000101) - 2017 года выпуска
-
№АртикулНазвание
-
1JW1-F3811-03-00 COLUMN, STEERINGCOLUMN, STEERING
-
295812-08020-00 BOLT, FLANGEBOLT, FLANGE
-
3JU0-F3857-11-00 HOLDERHOLDER
-
4JU0-F3828-10-00 ROD, STEERINGROD, STEERING
-
5JU0-F3857-11-00 HOLDERHOLDER
-
6JN3-F3838-00-00 WHEEL, STEERINGWHEEL, STEERING
-
790185-12008-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
892902-12200-00 WASHERWASHER
-
995602-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
10JW1-F3400-00-00 STEERING ASSYSTEERING ASSY
-
11JW1-F387A-00-00 ...GEAR,PINION...GEAR,PINION
-
12JW1-F3183-00-00 ...CIRCLIP...CIRCLIP
-
13JW1-F3812-00-00 ...BEARING, STEERING...BEARING, STEERING
-
14JW1-F387E-00-00 ...GEAR, RACK...GEAR, RACK
-
155UG-F387G-00-00 ...COVER, ADJUST...COVER, ADJUST
-
165UG-F387K-00-00 ...SPRING, PRESSURE...SPRING, PRESSURE
-
175UG-F387F-00-00 ...PAD, PRESSURE...PAD, PRESSURE
-
185UG-F387J-00-00 ...RING, STOPPER...RING, STOPPER
-
195UG-F3844-00-00 ...SEAL...SEAL
-
205UG-F3489-00-00 ...BAND...BAND
-
215UG-F3527-00-00 ...SEAL, DUST 1...SEAL, DUST 1
-
22JW1-F3837-00-00 ...ROD, TIE 2...ROD, TIE 2
-
23JW1-F467K-00-00 ...BUSH, CAP...BUSH, CAP
-
24JW1-F3866-00-00 ...CIRCLIP...CIRCLIP
-
25JW1-F3894-00-00 ...WASHER, LOCK 1...WASHER, LOCK 1
-
261P0-F3833-00-00 NUT 1NUT 1
-
27JW8-23841-01-00 JOINT, UNIVERSAL 1JOINT, UNIVERSAL 1
-
2890105-10847-00 BOLT, FLANGEBOLT, FLANGE
-
29JW1-F3822-01-00 JOINT 1JOINT 1
-
3097012-08030-00 BOLTBOLT
-
3192902-08600-00 WASHER, PLATEWASHER, PLATE
-
32JW8-K8357-00-00 HOLDER 1HOLDER 1
-
33JN6-K8358-01-00 HOLDER 2HOLDER 2
-
3497702-40525-00 SCREW, TAPPINGSCREW, TAPPING
-
3590201-04810-00 WASHER, PLATEWASHER, PLATE
-
3690502-10013-00 SPRING, CONICALSPRING, CONICAL
-
3790387-046N7-00 COLLARCOLLAR
-
38JC0-K7762-00-00 LABEL, WARNING 2LABEL, WARNING 2
