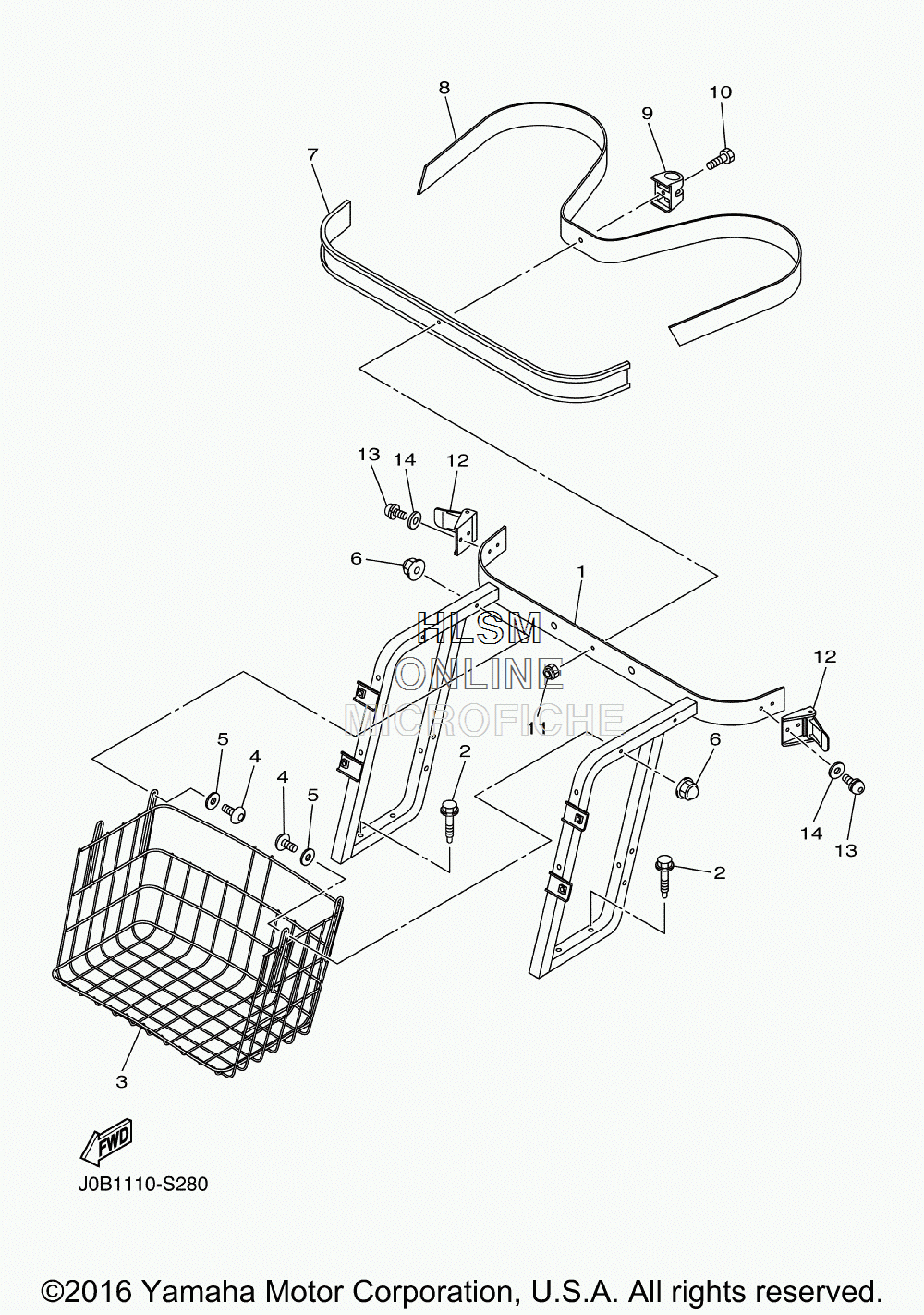

CARRIER для Yamaha DRIVE2 PTV (DR2A17PTV SERIAL: J0D-000101) - 2017 года выпуска
-
№АртикулНазвание
-
1J0B-K8423-00-00 SUPPORT, SEAT BACKSUPPORT, SEAT BACK
-
290109-08002-00 BOLTBOLT
-
3JW1-K8340-00-00 LUGGAGE RACK ASSY., REARLUGGAGE RACK ASSY., REAR
-
492017-06040-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
5J0B-K7389-00-00 WASHERWASHER
-
690176-06008-00 NUT, CROWNNUT, CROWN
-
7JF2-K8356-00-00 PAD, BAG SUPPORTPAD, BAG SUPPORT
-
8JN6-K8355-20-00 BANDBAND
-
9JW1-K834G-00-00 HOLDER, RAKE SANDHOLDER, RAKE SAND
-
109708R-06020-00 BOLTBOLT
-
1190185-06836-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
12JN6-K8380-00-00 LOCK ASSYLOCK ASSY
-
1390159-06845-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
149299R-06200-00 WASHERWASHER
