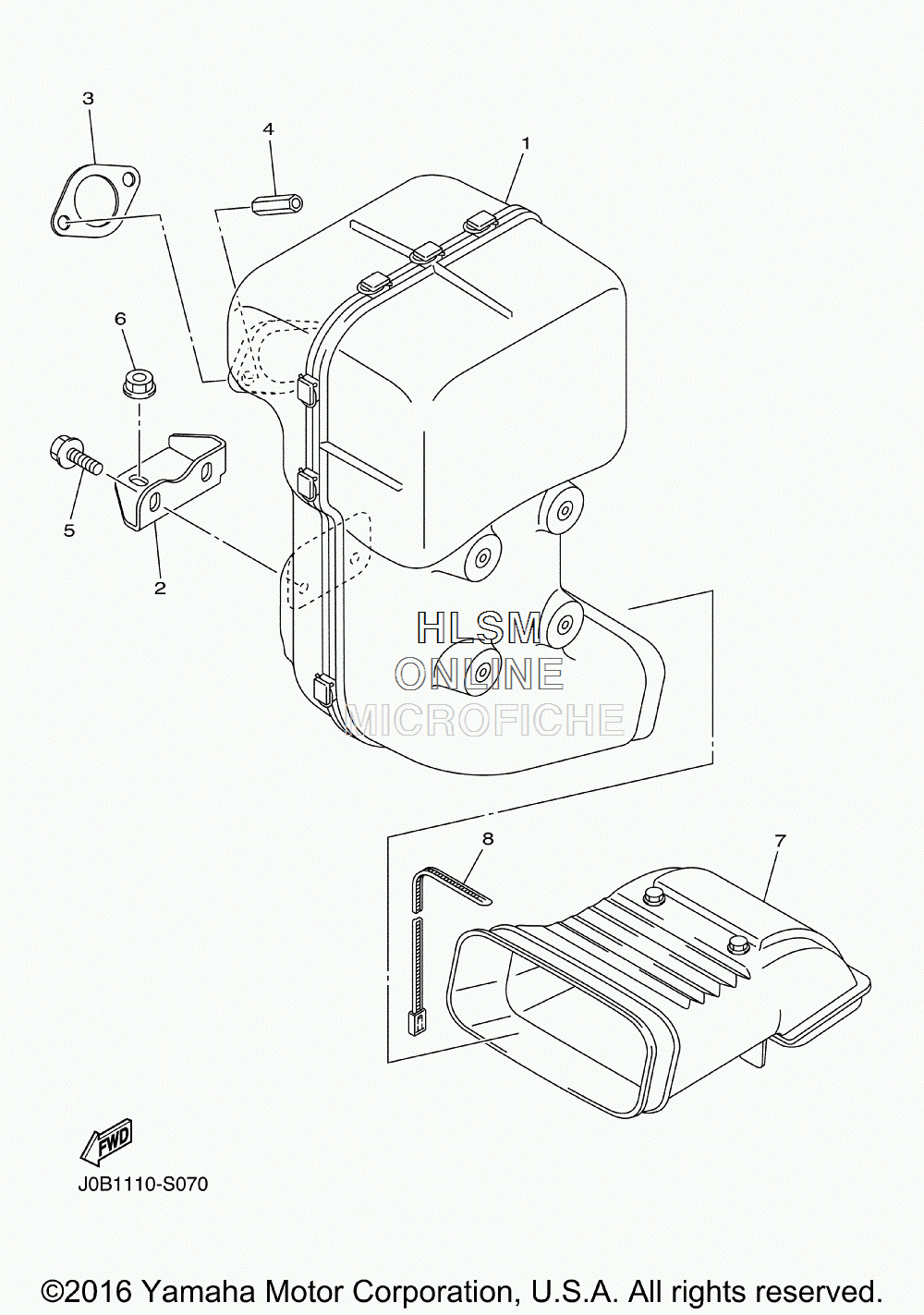

EXHAUST для Yamaha DRIVE2 PTV (DR2A17PTV SERIAL: J0D-000101) - 2017 года выпуска
-
№АртикулНазвание
-
1J0B-E4710-01-00 MUFFLER ASSY 1MUFFLER ASSY 1
-
2J0B-F1436-00-00 BRKT., MUFF. 2BRKT., MUFF. 2
-
37KY-14613-01-00 GASKET, EXHAUST 1GASKET, EXHAUST 1
-
4JW1-E4713-00-00 NUT, MUFFLER JOINTNUT, MUFFLER JOINT
-
595822-08020-00 BOLT, FLANGEBOLT, FLANGE
-
695702-08500-00 NUT, FLANGENUT, FLANGE
-
7J0B-14430-00-00 DUCT ASSYDUCT ASSY
-
890464-09823-00 CLAMPCLAMP
