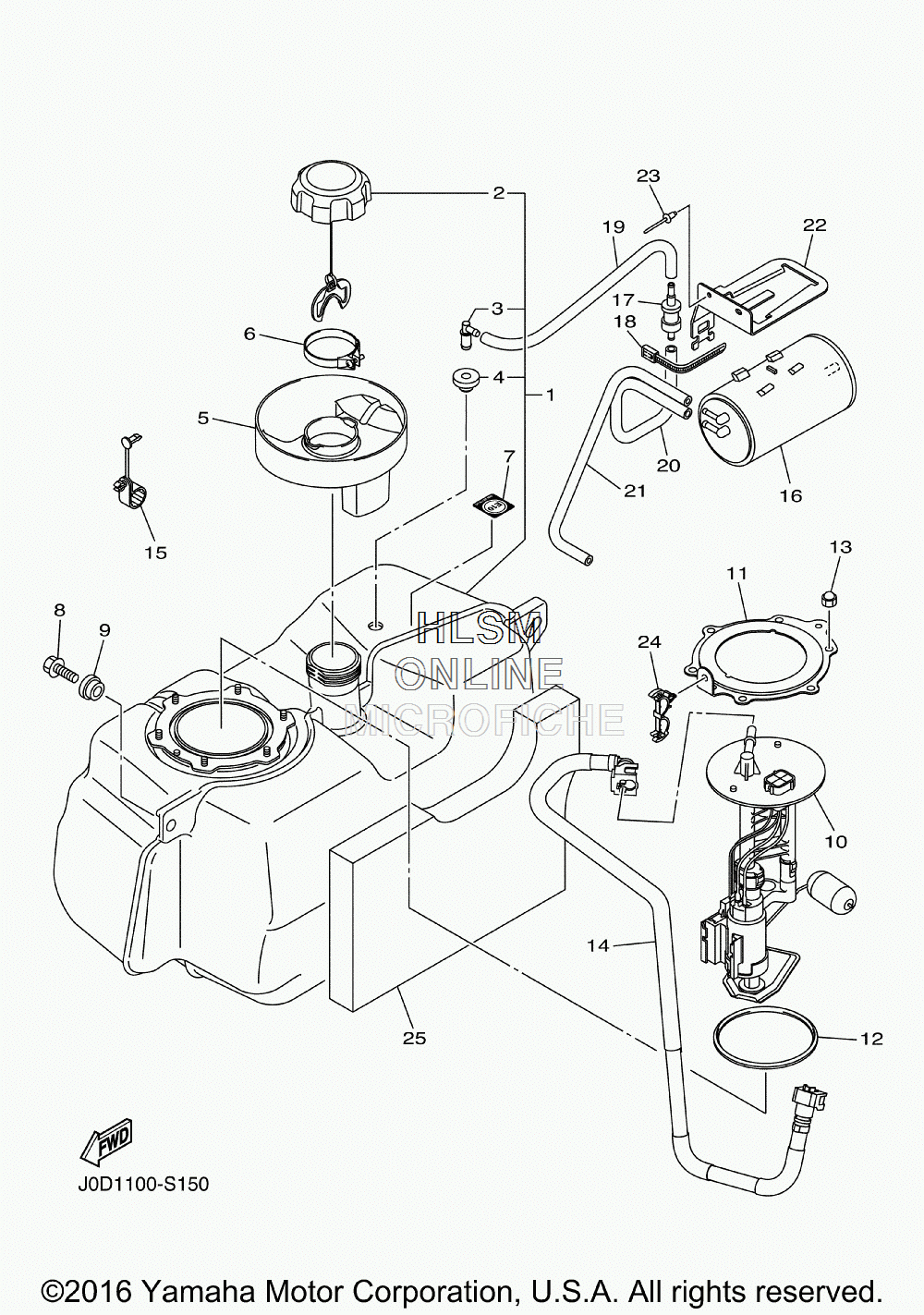

FUEL TANK для Yamaha DRIVE2 PTV (DR2A17PTV SERIAL: J0D-000101) - 2017 года выпуска
-
№АртикулНазвание
-
1JC0-F4111-01-00 TANK, FUELTANK, FUEL
-
2JW1-F4610-00-00 ...CAP ASSY...CAP ASSY
-
3JW1-F4112-00-00 ...PIPE...PIPE
-
4JU5-F4375-00-00 ...GROMMET...GROMMET
-
5J0B-F4217-00-00 COVERCOVER
-
690450-54008-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
7B88-2817K-00-00 LABEL,FUELLABEL,FUEL
-
8JW1-F1738-00-00 BOLTBOLT
-
990560-08251-00 SPACERSPACER
-
10J0D-13907-00-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
11JC0-24491-00-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
121S3-24486-00-00 O-RINGO-RING
-
1395302-06800-00 NUT, CROWNNUT, CROWN
-
14J0D-13971-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
15JW7-F312H-00-00 CLAMPCLAMP
-
167CC-F4170-01-00 CANISTER ASSYCANISTER ASSY
-
174WM-24180-00-00 ROLL OVER VALVE ASSYROLL OVER VALVE ASSY
-
1890464-40825-00 CLAMPCLAMP
-
19J0B-F4314-00-00 PIPE 4PIPE 4
-
20J0B-F4316-00-00 PIPE 6PIPE 6
-
21J0B-F4317-00-00 PIPE 7PIPE 7
-
22J0B-F419A-00-00 HOLDERHOLDER
-
23JW7-K7329-00-00 RIVETRIVET
-
2490464-18246-00 CLAMPCLAMP
-
25J0B-K8253-00-00 PAD, SILENCER 3PAD, SILENCER 3
