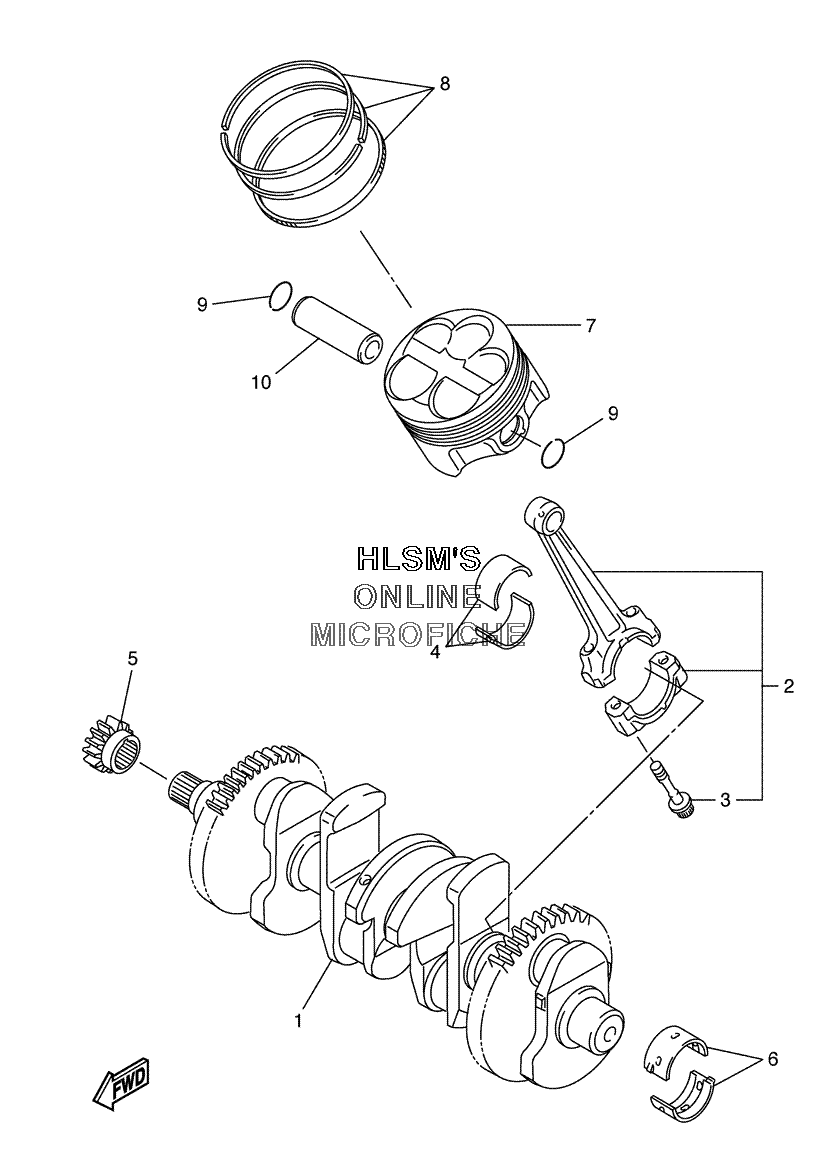

CRANKSHAFT - PISTON для Yamaha YZF-R1 - 2005 года выпуска
-
№АртикулНазвание
-
15VY-11411-01-00 CRANKSHAFTCRANKSHAFT
-
25VY-11650-01-00 CONNECTING ROD ASSY.CONNECTING ROD ASSY.
-
35VY-11654-01-00 ...BOLT, CONNECTING ROD...BOLT, CONNECTING ROD
-
45VY-11656-00-00 PLANE BEARING, CONNECTING ROD (OPT) (BLUE)PLANE BEARING, CONNECTING ROD (OPT) (BLUE)
-
45VY-11656-30-00 PLANE BEARING, CONNECTING ROD (OPT) (GREEN)PLANE BEARING, CONNECTING ROD (OPT) (GREEN)
-
45VY-11656-20-00 PLANE BEARING, CONNECTING ROD (OPT) (BROWN)PLANE BEARING, CONNECTING ROD (OPT) (BROWN)
-
45VY-11656-10-00 PLANE BEARING, CONNECTING ROD (OPT) (BLACK)PLANE BEARING, CONNECTING ROD (OPT) (BLACK)
-
55VY-11549-00-00 SPROCKET, CAM CHAINSPROCKET, CAM CHAIN
-
65VY-11416-A0-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (WHITE)PLANE BEARING, CRANKSHAFT 1 (OPT) (WHITE)
-
65VY-11416-10-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (BLACK)PLANE BEARING, CRANKSHAFT 1 (OPT) (BLACK)
-
65VY-11416-20-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (BROWN)PLANE BEARING, CRANKSHAFT 1 (OPT) (BROWN)
-
65VY-11416-30-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (GREEN)PLANE BEARING, CRANKSHAFT 1 (OPT) (GREEN)
-
65VY-11416-00-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (BLUE)PLANE BEARING, CRANKSHAFT 1 (OPT) (BLUE)
-
75VY-11631-10-00 PISTON (STD)PISTON (STD)
-
85VY-11603-01-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
990468-12069-00 CLIPCLIP
-
105VY-11633-00-00 PIN, PISTONPIN, PISTON
