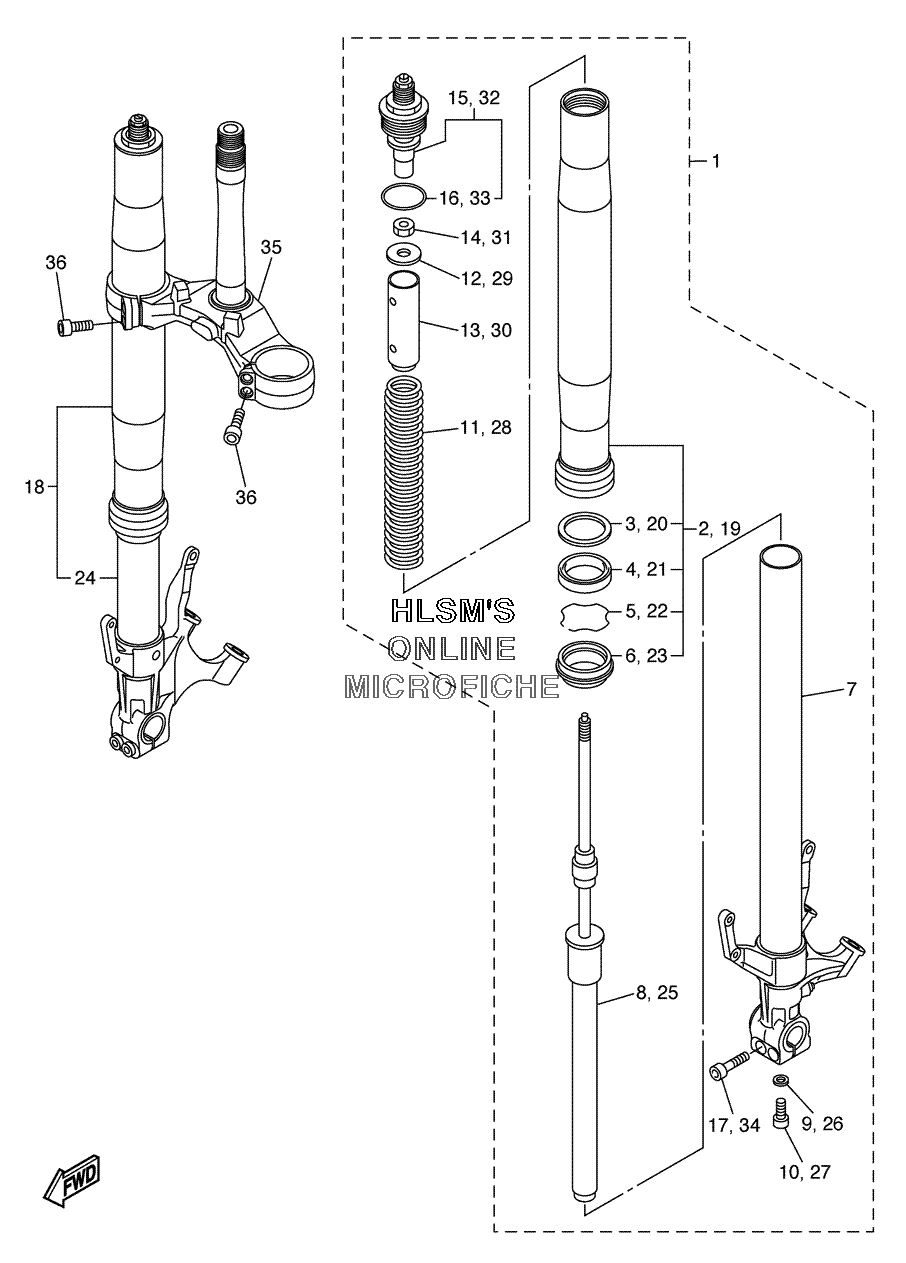

SUSPENSION - FRONT FORK для Yamaha YZF-R1 - 2005 года выпуска
-
№АртикулНазвание
-
15VY-23102-10-00 FRONT FORK ASSY. (L.H) FOR DRMK, DPBMCFRONT FORK ASSY. (L.H) FOR DRMK, DPBMC
-
15VY-23102-20-00 FRONT FORK ASSY. (L.H) FOR SMXFRONT FORK ASSY. (L.H) FOR SMX
-
25VY-23136-10-00 ...TUBE, OUTER...TUBE, OUTER
-
35PW-23146-00-00 ......WASHER, OIL SEAL......WASHER, OIL SEAL
-
44PU-23145-01-00 ......OIL SEAL......OIL SEAL
-
54V4-23153-L0-00 ......RING, SNAP......RING, SNAP
-
64PU-23144-00-00 ......SEAL, DUST......SEAL, DUST
-
75VY-23110-00-00 ......INNER TUBE COMP. 1......INNER TUBE COMP. 1
-
85VY-23170-00-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
9509-23158-L0-00 ...GASKET...GASKET
-
105UX-23181-00-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
115VY-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
125VY-12277-00-00 ...WASHER...WASHER
-
135VY-23118-00-00 ...SPACER...SPACER
-
143LC-23357-00-00 ...NUT...NUT
-
155VY-23111-00-00 ......BOLT, CAP FOR DRMK, DPBMC......BOLT, CAP FOR DRMK, DPBMC
-
155VY-23111-20-00 ...BOLT, CAP FOR SMX...BOLT, CAP FOR SMX
-
163XJ-23147-L0-00 ......O-RING......O-RING
-
1791314-08040-00 ...BOLT...BOLT
-
185VY-23103-10-00 FRONT FORK ASSY. (R.H) FOR DRMK, DPBMCFRONT FORK ASSY. (R.H) FOR DRMK, DPBMC
-
185VY-23103-20-00 FRONT FORK ASSY. (R.H) FOR SMXFRONT FORK ASSY. (R.H) FOR SMX
-
195VY-23136-10-00 ...TUBE, OUTER...TUBE, OUTER
-
205PW-23146-00-00 ......WASHER, OIL SEAL......WASHER, OIL SEAL
-
214PU-23145-01-00 ......OIL SEAL......OIL SEAL
-
224V4-23153-L0-00 ......RING, SNAP......RING, SNAP
-
234PU-23144-00-00 ......SEAL, DUST......SEAL, DUST
-
245VY-23120-00-00 ......INNER TUBE COMP. 2......INNER TUBE COMP. 2
-
255VY-23170-00-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
26509-23158-L0-00 ...GASKET...GASKET
-
275UX-23181-00-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
285VY-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
295VY-12277-00-00 ...WASHER...WASHER
-
305VY-23118-00-00 ...SPACER...SPACER
-
313LC-23357-00-00 ...NUT...NUT
-
325VY-23111-00-00 ......BOLT, CAP FOR DRMK, DPBMC......BOLT, CAP FOR DRMK, DPBMC
-
325VY-23111-20-00 ...BOLT, CAP FOR SMX...BOLT, CAP FOR SMX
-
333XJ-23147-L0-00 ......O-RING......O-RING
-
3491314-08040-00 ...BOLT...BOLT
-
355VY-23340-00-00 UNDER BRACKET COMP.UNDER BRACKET COMP.
-
3691314-08030-00 BOLTBOLT
