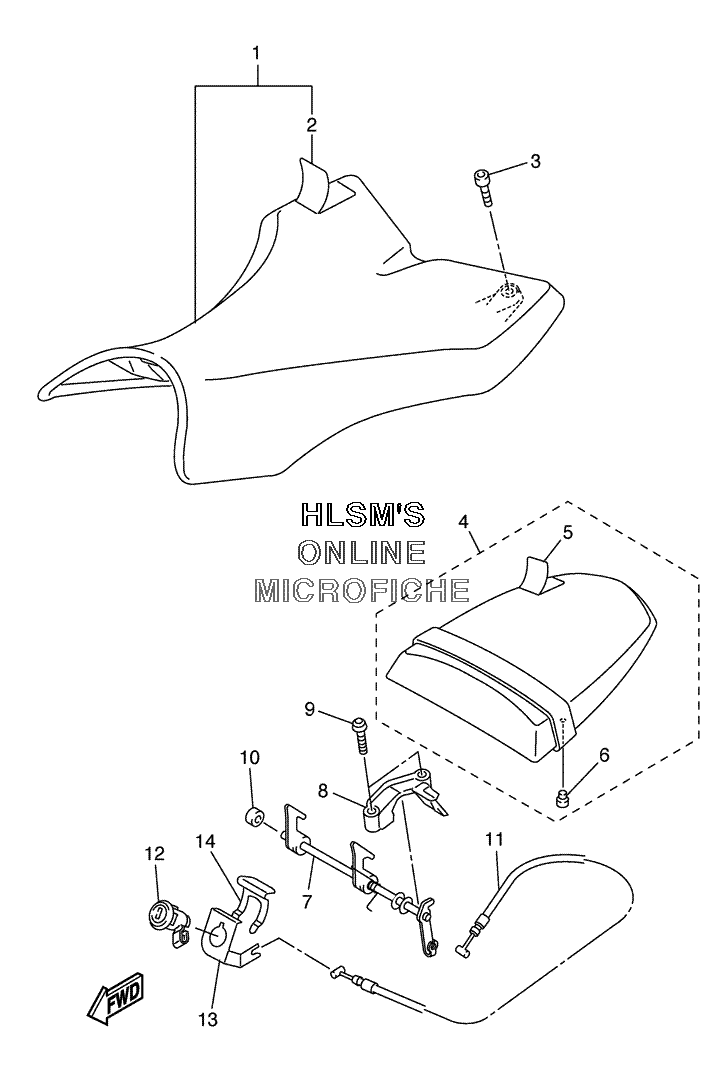

SEAT для Yamaha YZF-R1 - 2005 года выпуска
-
№АртикулНазвание
-
15VY-24710-00-00 SINGLE SEAT ASSY.SINGLE SEAT ASSY.
-
25VY-2470F-00-00 ...SEAT COVER COMP....SEAT COVER COMP.
-
390110-06258-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
45VY-24750-00-00 TANDEM SEAT ASSY.TANDEM SEAT ASSY.
-
55VY-24751-00-00 ...COVER, TANDEM SEAT...COVER, TANDEM SEAT
-
65SL-24723-00-00 ...DAMPER, SEAT...DAMPER, SEAT
-
75VY-24780-00-00 SEAT LOCK ASSY.SEAT LOCK ASSY.
-
85VY-24792-00-00 PLATEPLATE
-
992017-06025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
105VY-24729-00-00 SPACER 2SPACER 2
-
115VY-2478E-00-00 CABLE, SEAT LOCKCABLE, SEAT LOCK
-
125VY-W2470-00-00 SEAT LOCK ASSY.SEAT LOCK ASSY.
-
135VY-2117K-01-00 STAY, LOCKSTAY, LOCK
-
145VY-2176V-00-00 SPRING, LOCK 2SPRING, LOCK 2
