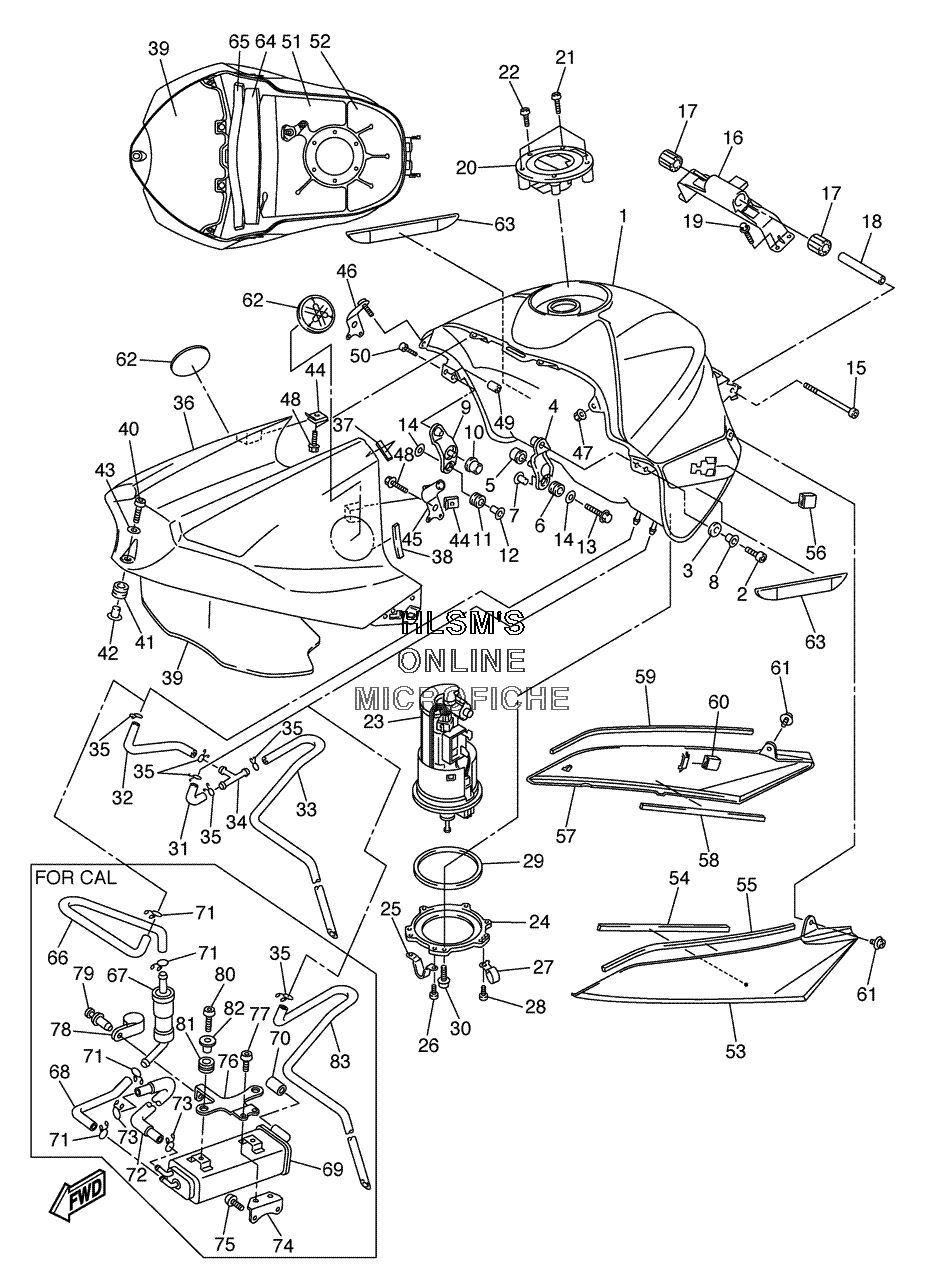

FUEL TANK для Yamaha YZF-R1 - 2005 года выпуска
-
№АртикулНазвание
-
15VY-YK241-30-P0 FUEL TANK COMP. (DRMK)FUEL TANK COMP. (DRMK)
-
15VY-YK241-30-P1 FUEL TANK COMP. (DPBMC)FUEL TANK COMP. (DPBMC)
-
15VY-YK241-30-P2 FUEL TANK COMP. (SMX)FUEL TANK COMP. (SMX)
-
291317-06016-00 BOLTBOLT
-
35VY-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
45VY-24191-00-00 BRACKET, FUEL TANK 1BRACKET, FUEL TANK 1
-
55VY-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
690480-10542-00 GROMMETGROMMET
-
790387-066Y6-00 COLLARCOLLAR
-
890387-061U9-00 COLLARCOLLAR
-
95VY-24192-00-00 BRACKET, FUEL TANK 2BRACKET, FUEL TANK 2
-
105VY-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
1190480-10542-00 GROMMETGROMMET
-
1290387-066Y6-00 COLLARCOLLAR
-
1395027-06030-00 BOLT, FLANGEBOLT, FLANGE
-
1490201-06063-00 WASHER, PLATEWASHER, PLATE
-
1591317-06090-00 BOLTBOLT
-
165VY-2413Y-00-00 BRACKET, TANK FITTINGBRACKET, TANK FITTING
-
175SL-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
1890387-06055-00 COLLARCOLLAR
-
1995027-06020-00 BOLT, FLANGEBOLT, FLANGE
-
205JJ-24602-00-00 CAP ASSY.CAP ASSY.
-
2190110-05112-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2291317-05010-00 BOLTBOLT
-
235PW-13907-01-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
245VY-24491-00-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
255PW-24192-00-00 BRACKET, FUEL TANK 2BRACKET, FUEL TANK 2
-
2698907-05008-00 SCREW, BINDSCREW, BIND
-
2790461-10010-00 CLAMPCLAMP
-
2890154-05012-00 SCREW, BINDINGSCREW, BINDING
-
295JW-24486-00-00 O-RINGO-RING
-
3090110-05014-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
315VY-24315-00-00 PIPE 5PIPE 5
-
325VY-24316-00-00 PIPE 6PIPE 6
-
335VY-24317-00-00 PIPE 7PIPE 7
-
3490413-07007-00 WAY 3WAY 3
-
3590467-09006-00 CLIP, SCISSORCLIP, SCISSOR
-
365VY-2171A-01-P0 COVER, TOP (DRMK)COVER, TOP (DRMK)
-
365VY-2171A-01-P1 COVER, TOP (DPBMC)COVER, TOP (DPBMC)
-
365VY-2171A-01-P4 COVER, TOP (SMX)COVER, TOP (SMX)
-
375VY-2414J-00-00 DAMPER, PLATE 2DAMPER, PLATE 2
-
384XV-2834E-00-00 DAMPER 1DAMPER 1
-
395VY-24145-00-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
4091314-06025-00 BOLTBOLT
-
4190480-12314-00 GROMMETGROMMET
-
4290387-065J6-00 COLLARCOLLAR
-
4390201-06M30-00 WASHER, PLATEWASHER, PLATE
-
4490183-05074-00 NUT, SPRINGNUT, SPRING
-
455VY-24117-00-00 STAY, FUEL TANK 3STAY, FUEL TANK 3
-
465VY-24118-00-00 STAY, FUEL TANK 4STAY, FUEL TANK 4
-
4795707-05500-00 NUT, FLANGENUT, FLANGE
-
4890105-05002-00 BOLT, FLANGEBOLT, FLANGE
-
4990179-05523-00 NUTNUT
-
5098907-05014-00 SCREW, BINDSCREW, BIND
-
515VY-2414N-00-00 DAMPER, PLATE 4DAMPER, PLATE 4
-
525VY-2414P-00-00 DAMPER, PLATE 5DAMPER, PLATE 5
-
535VY-24129-01-00 COVER, SIDE 1COVER, SIDE 1
-
545PW-2414J-00-00 DAMPER, PLATE 2DAMPER, PLATE 2
-
555PW-2414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
-
565PW-2411J-01-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
575VY-24139-01-00 COVER, SIDE 2COVER, SIDE 2
-
585PW-2414J-00-00 DAMPER, PLATE 2DAMPER, PLATE 2
-
595PW-2414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
-
605PW-2411J-01-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
6190159-05015-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
625PW-2413B-00-00 EMBLEMEMBLEM
-
635VY-2414K-00-00 DAMPER, PLATE 3DAMPER, PLATE 3
-
645VY-2414R-00-00 DAMPER, PLATE 6DAMPER, PLATE 6
-
655VY-2414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
-
665VY-24313-00-00 PIPE 3PIPE 3
-
675RB-24180-00-00 ROLL OVER VALVE ASSY.ROLL OVER VALVE ASSY.
-
685VY-24314-00-00 PIPE 4PIPE 4
-
695VY-24170-00-00 CANISTER ASSY.CANISTER ASSY.
-
7090445-11418-00 HOSEHOSE
-
7190467-09006-00 CLIP, SCISSORCLIP, SCISSOR
-
725VY-1443J-00-00 PIPEPIPE
-
7390467-09006-00 CLIP, SCISSORCLIP, SCISSOR
-
745VY-2419F-00-00 BRACKET, CANISTORBRACKET, CANISTOR
-
7592017-06016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
765VY-24216-00-00 STAYSTAY
-
7792017-06010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
7890461-15139-00 CLAMPCLAMP
-
7990269-05001-00 RIVETRIVET
-
8092017-06016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
8190480-13018-00 GROMMETGROMMET
-
8290387-062L2-00 COLLARCOLLAR
-
835VY-24312-00-00 PIPE 2PIPE 2
