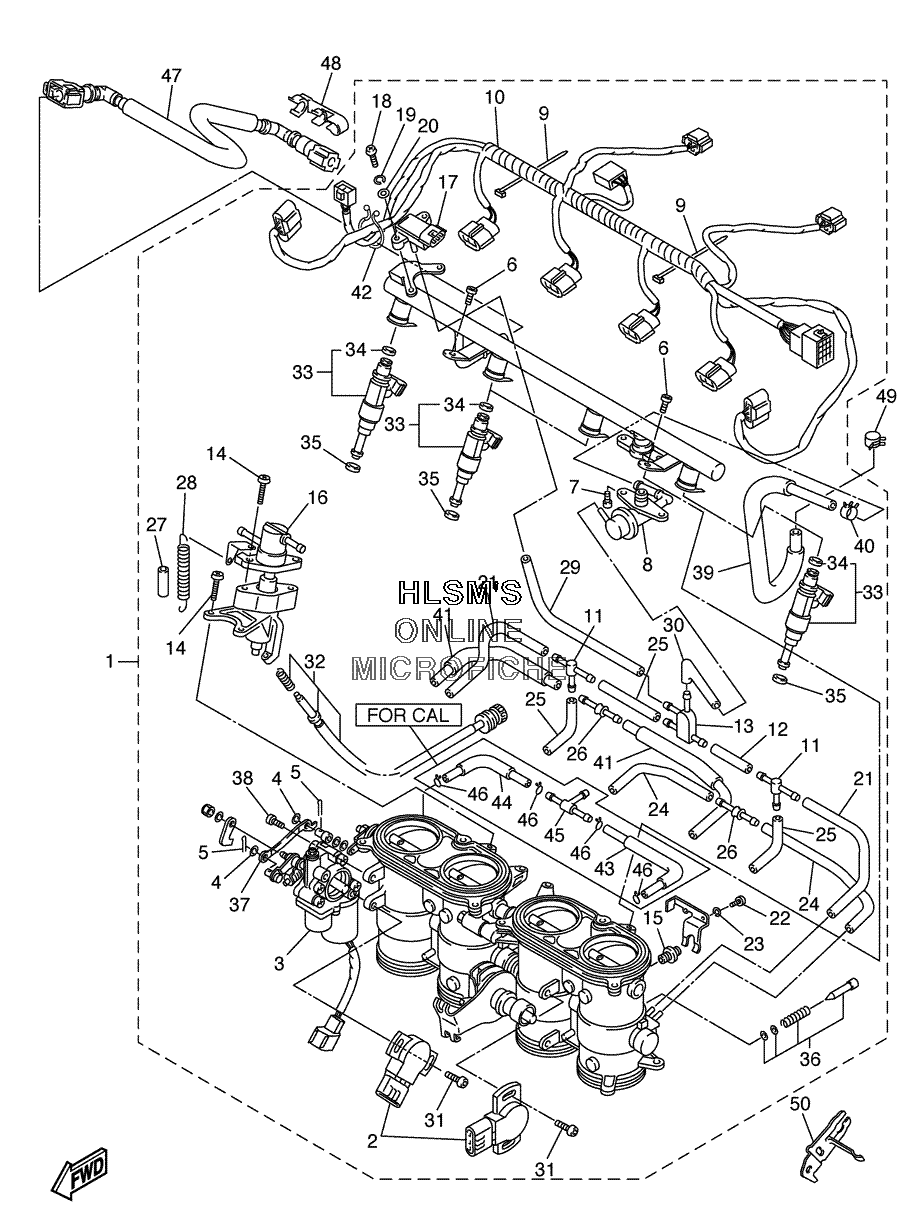

THROTTLE BODY ASSY. для Yamaha YZF-R1 - 2005 года выпуска
-
№АртикулНазвание
-
15VY-13750-00-00 THROTTLE BODY ASSY. (EXCEPT CALIF.)THROTTLE BODY ASSY. (EXCEPT CALIF.)
-
15VY-13750-10-00 THROTTLE BODY ASSY. (CALIF. ONLY)THROTTLE BODY ASSY. (CALIF. ONLY)
-
25FL-85885-01-00 ...THROTTLE SENSOR ASSY....THROTTLE SENSOR ASSY.
-
35VY-85850-00-00 ...GEARED MOTOR COMP....GEARED MOTOR COMP.
-
422U-14952-00-00 ...WASHER...WASHER
-
591492-12010-00 ...PIN, COTTER...PIN, COTTER
-
698507-06012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
798507-05008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
85VY-13906-00-00 ...REGULATOR, PRESSURE...REGULATOR, PRESSURE
-
94KM-14137-00-00 ...CLIP, PIPE...CLIP, PIPE
-
105VY-82386-00-00 ...EXTENSION, WIRE HARNESS...EXTENSION, WIRE HARNESS
-
1168V-24376-00-00 ...PIPE, JOINT 1...PIPE, JOINT 1
-
125JW-14396-00-00 ...PIPE...PIPE
-
135PW-1410F-00-00 ...CONNECTOR...CONNECTOR
-
1498507-05014-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
155VY-14171-00-00 ...PLUNGER, STARTER...PLUNGER, STARTER
-
165VY-14204-00-00 ...CASE, STARTER...CASE, STARTER
-
175VX-82380-00-00 ...SENSOR, PRESSURE...SENSOR, PRESSURE
-
1898507-05016-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1992907-05100-00 ...WASHER, SPRING...WASHER, SPRING
-
2092907-05600-00 ...WASHER, PLATE...WASHER, PLATE
-
215FL-14349-10-00 ...PIPE...PIPE
-
2298507-03016-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
2392990-03100-00 ...WASHER, SPRING...WASHER, SPRING
-
245PW-14349-00-00 ...PIPE...PIPE
-
255PS-14987-00-00 ...HOSE...HOSE
-
265PW-14251-00-00 ...NIPPLE...NIPPLE
-
275DM-14936-00-00 ...SEAT, SPRING...SEAT, SPRING
-
285JW-14589-00-00 ...SPRING...SPRING
-
295SL-14349-00-00 ...PIPE...PIPE
-
305VY-14348-00-00 ...PIPE 1...PIPE 1
-
318CC-14216-10-00 ...SCREW...SCREW
-
325PW-14103-00-00 ...THROTTLE SCREW SET...THROTTLE SCREW SET
-
335VY-13761-00-00 ...INJECTOR ASSY....INJECTOR ASSY.
-
345PS-14147-00-00 ......O-RING......O-RING
-
3590430-09002-00 ...GASKET...GASKET
-
365JW-14104-00-00 ...AIR SCREW SET...AIR SCREW SET
-
375VY-14905-00-00 ...LEVER, STARTER...LEVER, STARTER
-
3898507-06020-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
395VY-13972-00-00 ...PIPE, FUEL 2...PIPE, FUEL 2
-
4090467-120A1-00 ...CLIP...CLIP
-
415VY-13543-00-00 ...HOSE, AIR...HOSE, AIR
-
4290464-30040-00 ...CLAMP...CLAMP
-
435VY-14465-00-00 ...PIPE...PIPE
-
445VY-14466-00-00 ...PIPE...PIPE
-
4590413-08012-00 ...WAY 3...WAY 3
-
4690467-09006-00 ...CLIP, SCISSOR...CLIP, SCISSOR
-
475VY-13971-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
4890464-16005-00 CLAMPCLAMP
-
4990467-12003-00 CLIPCLIP
-
505VY-14413-00-00 STAYSTAY
