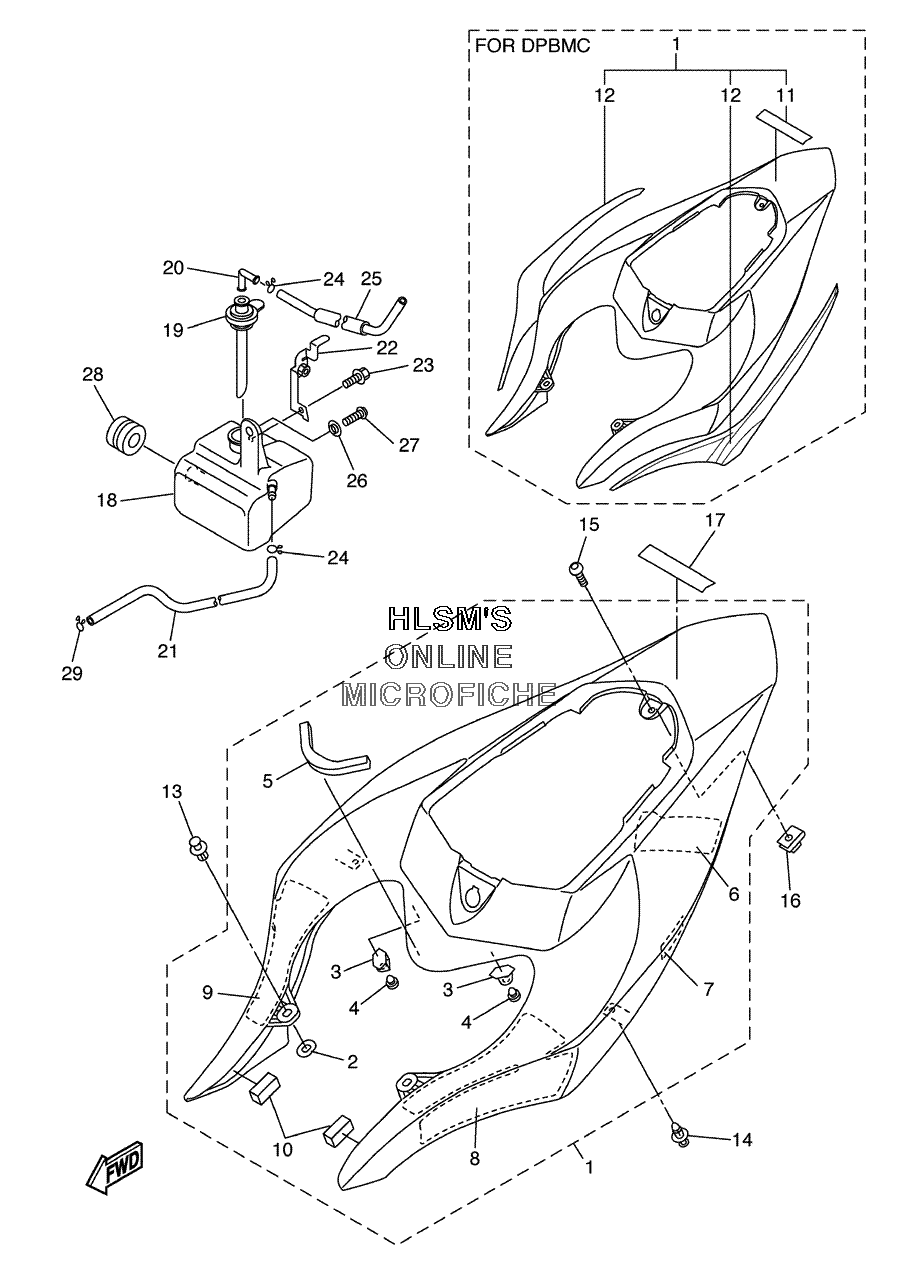

SIDE COVER для Yamaha YZF-R1 - 2005 года выпуска
-
№АртикулНазвание
-
15VY-21710-01-P0 SIDE COVER ASSY. 1 (DRMK)SIDE COVER ASSY. 1 (DRMK)
-
15VY-Y2171-11-P1 COVER, SIDE 1 (DPBMC)COVER, SIDE 1 (DPBMC)
-
15VY-21710-01-P4 SIDE COVER ASSY. 1 (SMX)SIDE COVER ASSY. 1 (SMX)
-
25PW-2174X-00-00 ...DAMPER...DAMPER
-
35VY-2172E-00-00 ...STAY, SIDE COVER 1...STAY, SIDE COVER 1
-
490338-06018-00 ...PLUG...PLUG
-
55VY-21747-00-00 ...DAMPER...DAMPER
-
61JK-21735-00-00 ...SEAL 2...SEAL 2
-
75PW-21732-00-00 ...SEAL 1...SEAL 1
-
85VY-2172P-00-00 ...SEAT, 1...SEAT, 1
-
95VY-2173P-00-00 ...SEAT, 2...SEAT, 2
-
101UJ-21717-00-00 ...DAMPER...DAMPER
-
1199241-00080-00 ...EMBLEM, YAMAHA FOR DPBMC...EMBLEM, YAMAHA FOR DPBMC
-
125VY-2173L-00-00 ...GRAPHIC SET 1 FOR DPBMC...GRAPHIC SET 1 FOR DPBMC
-
1390269-07076-00 RIVETRIVET
-
1490269-06011-00 RIVETRIVET
-
1590111-05007-00 BOLTBOLT
-
1690183-05076-00 NUT, SPRINGNUT, SPRING
-
1799244-00080-00 EMBLEM, YAMAHA FOR DRMKEMBLEM, YAMAHA FOR DRMK
-
1799247-00080-00 EMBLEM, YAMAHA FOR SMXEMBLEM, YAMAHA FOR SMX
-
185VY-21871-00-00 TANK, RECOVERYTANK, RECOVERY
-
195VY-21875-00-00 CAPCAP
-
2026H-21828-00-00 ELBOWELBOW
-
2190445-08022-00 HOSEHOSE
-
225VY-21843-00-00 STAY, 4STAY, 4
-
2390105-06052-00 BOLT, FLANGEBOLT, FLANGE
-
2490467-08075-00 CLIP, SCISSORCLIP, SCISSOR
-
2590445-087K6-00 HOSEHOSE
-
2690387-062M9-00 COLLARCOLLAR
-
2792017-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2890480-20001-00 GROMMETGROMMET
-
2990467-08075-00 CLIP, SCISSORCLIP, SCISSOR
