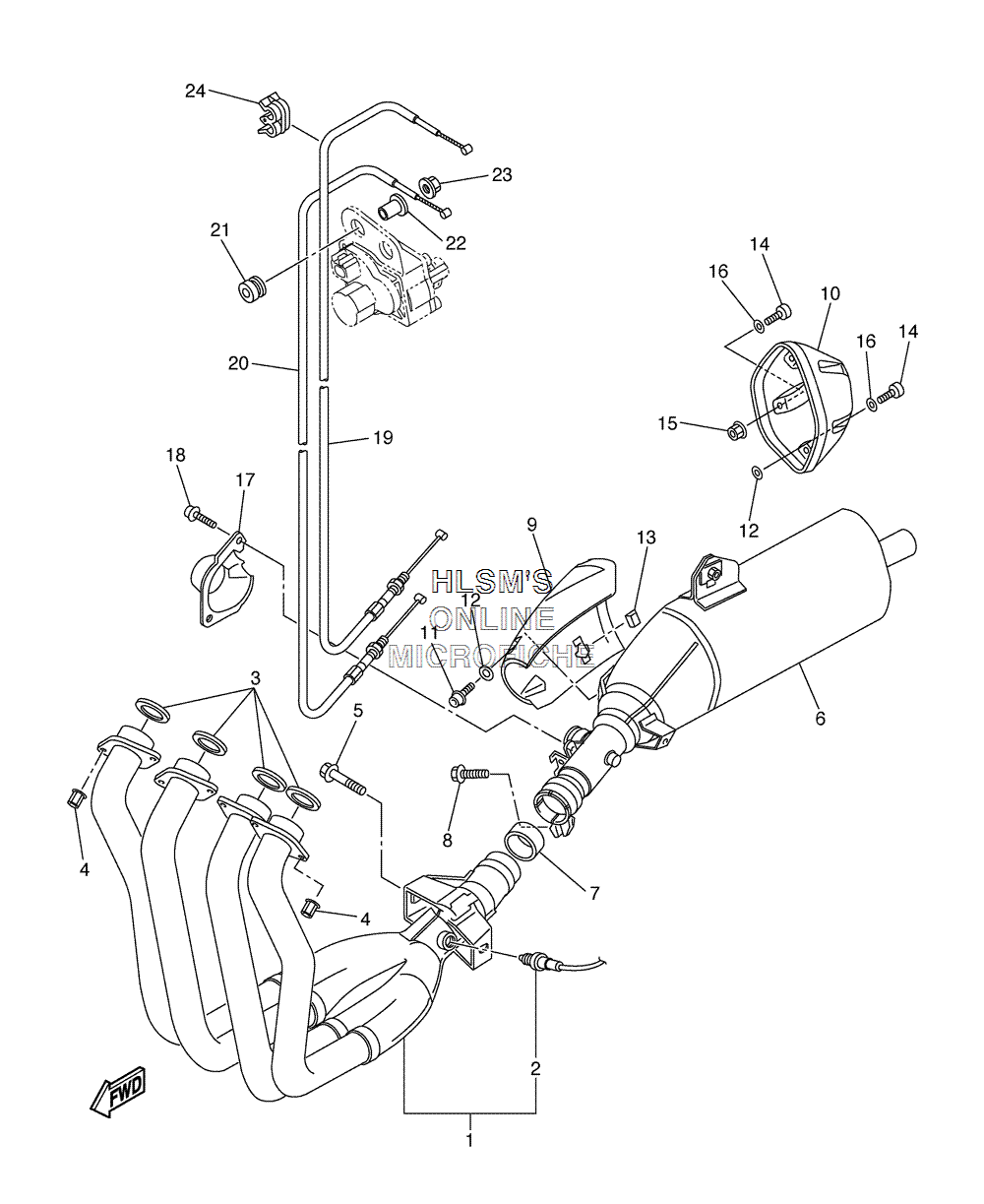

EXHAUST для Yamaha FZS10 - 2006 года выпуска
-
№АртикулНазвание
-
12D1-14602-00-00 EXHAUST PIPE COMP.EXHAUST PIPE COMP.
-
22D1-8592A-00-00 ...SENSOR, OXYGEN...SENSOR, OXYGEN
-
34FM-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
490179-08410-00 NUTNUT
-
590109-08170-00 BOLTBOLT
-
62D1-14703-00-00 MUFFLER COMP. 1MUFFLER COMP. 1
-
75VY-14755-00-00 GASKET, SILENCERGASKET, SILENCER
-
895814-08030-00 BOLT, FLANGEBOLT, FLANGE
-
92D1-14718-00-00 PROTECTOR, MUFFLER 1PROTECTOR, MUFFLER 1
-
102D1-14799-00-00 CAPCAP
-
1190111-06060-00 BOLT HEX. SOCKET BUTTONBOLT HEX. SOCKET BUTTON
-
1290201-05017-00 WASHER, PLATEWASHER, PLATE
-
133MA-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
1491380-06014-00 BOLTBOLT
-
1595702-06500-00 NUT, FLANGENUT, FLANGE
-
1692990-06600-00 WASHER, PLATEWASHER, PLATE
-
172D1-14826-00-00 PROTECTOR, EXHAUSTPROTECTOR, EXHAUST
-
1890110-06110-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
192D1-1133E-00-00 CABLE, PULLEY 1CABLE, PULLEY 1
-
202D1-1133F-00-00 CABLE, PULLEY 2CABLE, PULLEY 2
-
2190480-14604-00 GROMMETGROMMET
-
2290387-06M60-00 COLLARCOLLAR
-
2395702-06500-00 NUT, FLANGENUT, FLANGE
-
2490464-04001-00 CLAMPCLAMP
