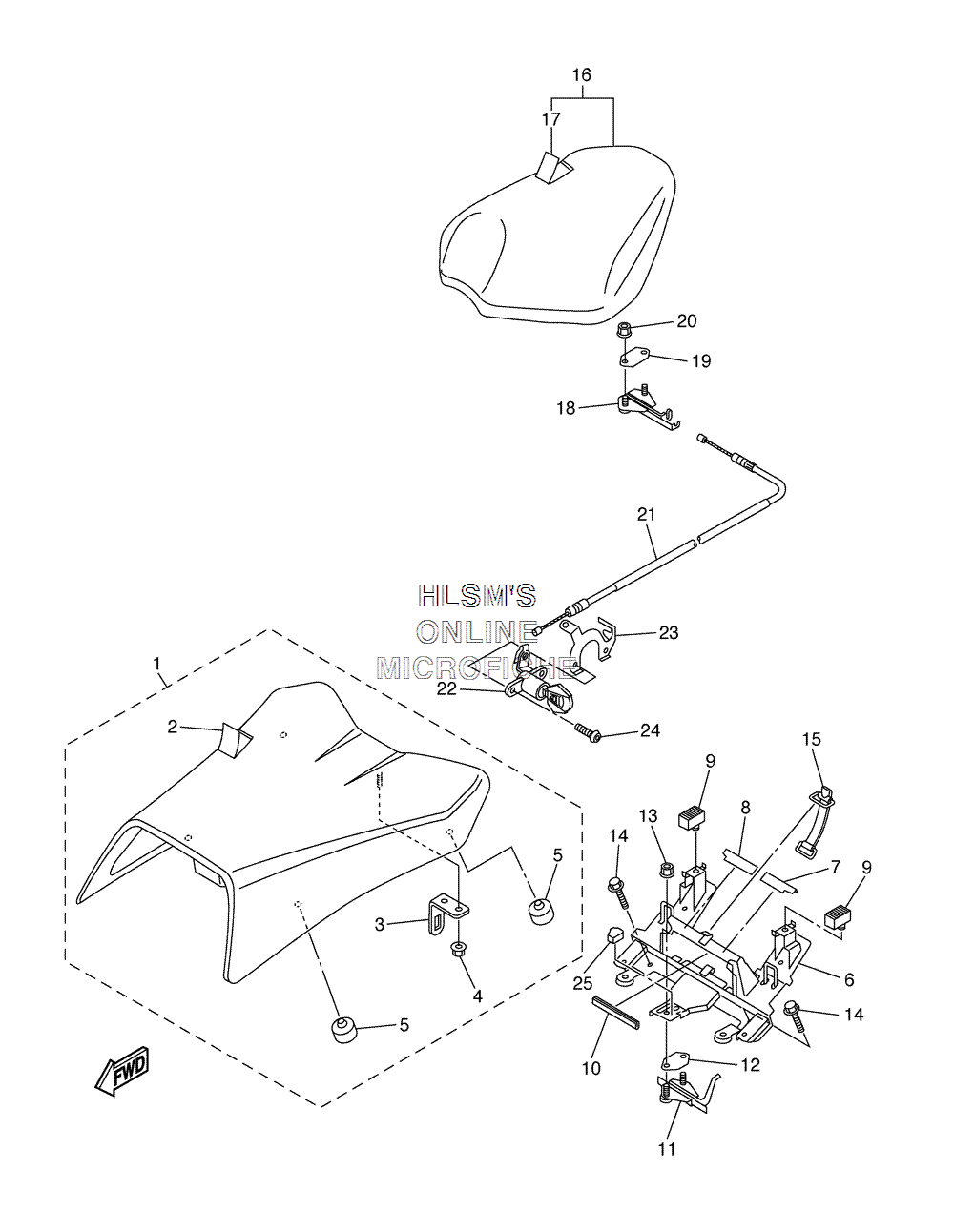

SEAT для Yamaha FZS10 - 2006 года выпуска
-
№АртикулНазвание
-
12D1-24710-00-00 SINGLE SEAT ASSYSINGLE SEAT ASSY
-
22D1-24711-00-00 ...COVER, SINGLE SEAT...COVER, SINGLE SEAT
-
34HM-24728-00-00 ...BRACKET, SEAT...BRACKET, SEAT
-
495607-06200-00 ...NUT, SELF U-FLANGE...NUT, SELF U-FLANGE
-
5278-27114-00-00 ...STOPPER, MAIN STAND...STOPPER, MAIN STAND
-
63C3-21341-01-00 BRACKET, SEAT 1BRACKET, SEAT 1
-
72D1-2476U-00-00 PROTECTOR 1PROTECTOR 1
-
82D1-2476V-00-00 PROTECTOR 2PROTECTOR 2
-
93C3-24741-00-00 PAD, SEATPAD, SEAT
-
102D1-24785-00-00 MOLD, SEATMOLD, SEAT
-
112D1-24780-00-00 SEAT LOCK ASSYSEAT LOCK ASSY
-
124BP-24792-00-00 PLATEPLATE
-
1395702-06500-00 NUT, FLANGENUT, FLANGE
-
1495827-06020-00 BOLT, FLANGEBOLT, FLANGE
-
1518G-82131-00-00 BAND, BATTERYBAND, BATTERY
-
163C3-24750-00-00 TANDEM SEAT ASSYTANDEM SEAT ASSY
-
173C3-24751-00-00 ...COVER, TANDEM SEAT...COVER, TANDEM SEAT
-
184BP-24780-00-00 SEAT LOCK ASSYSEAT LOCK ASSY
-
194BP-24792-00-00 PLATEPLATE
-
2095702-06500-00 NUT, FLANGENUT, FLANGE
-
212D1-2478E-00-00 CABLE, SEAT LOCKCABLE, SEAT LOCK
-
222TV-W2470-00-00 ROTOR SETROTOR SET
-
234XV-2117K-00-00 STAY, LOCKSTAY, LOCK
-
2490149-06006-00 SCREWSCREW
-
252D1-24665-00-00 DAMPERDAMPER
