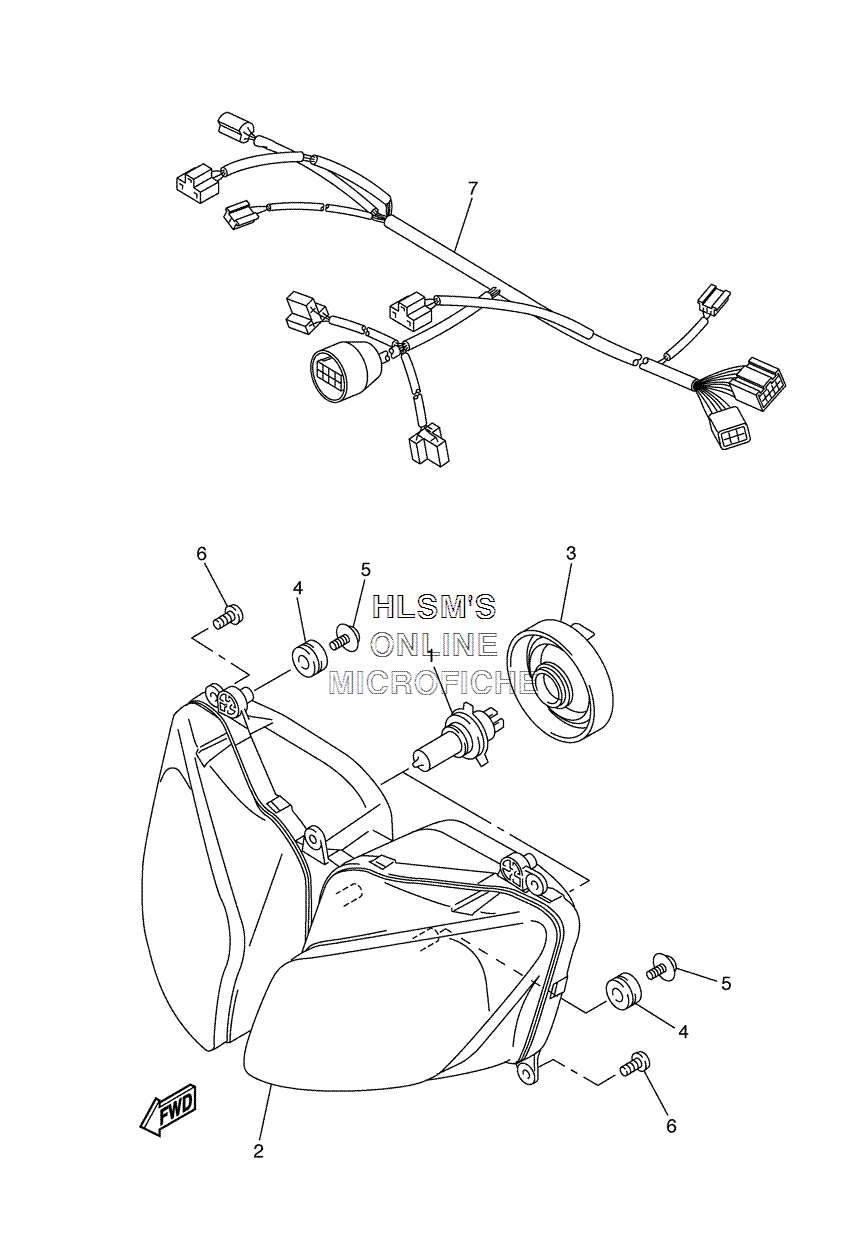

HEADLIGHT для Yamaha FZS10 - 2006 года выпуска
-
№АртикулНазвание
-
18V0-84314-00-00 BULB (12V-60/55W)BULB (12V-60/55W)
-
23C3-84310-20-00 HEADLIGHT UNIT ASSYHEADLIGHT UNIT ASSY
-
35LV-84397-00-00 COVER, SOCKETCOVER, SOCKET
-
490480-14229-00 GROMMETGROMMET
-
590164-05014-00 SCREW, TAPPINGSCREW, TAPPING
-
697707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
73C3-84359-10-00 CORD, HEADLIGHTCORD, HEADLIGHT
