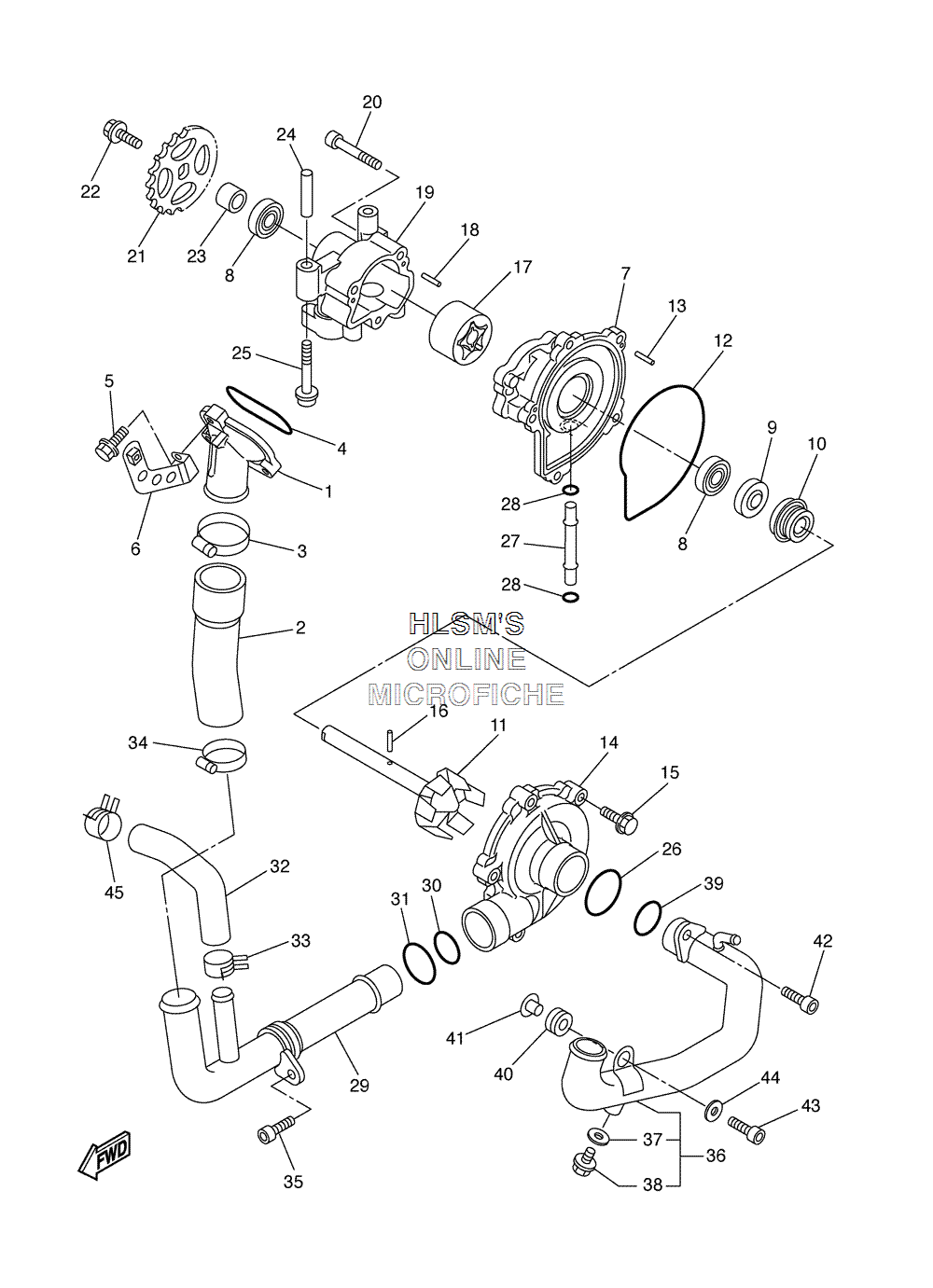

WATER PUMP для Yamaha FZS10 - 2006 года выпуска
-
№АртикулНазвание
-
15VY-12469-00-00 JOINT 1JOINT 1
-
25VY-12576-00-00 HOSE 1HOSE 1
-
390450-38040-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
493210-47675-00 O-RINGO-RING
-
595024-06025-00 BOLT, FLANGE (SMALL HEAD)BOLT, FLANGE (SMALL HEAD)
-
62D1-12637-00-00 STAY 1STAY 1
-
75VY-12421-00-00 HOUSING, WATER PUMPHOUSING, WATER PUMP
-
893306-00106-00 BEARINGBEARING
-
993102-12372-00 OIL SEALOIL SEAL
-
1011H-12438-10-00 SEAL, MECHANICALSEAL, MECHANICAL
-
115VY-12450-10-00 IMPELLER SHAFT ASSYIMPELLER SHAFT ASSY
-
124XV-12439-00-00 O-RINGO-RING
-
1393603-12007-00 PIN, DOWELPIN, DOWEL
-
145VY-12422-00-00 COVER, HOUSINGCOVER, HOUSING
-
1590105-06065-00 BOLT, FLANGEBOLT, FLANGE
-
1693603-17070-00 PIN, DOWELPIN, DOWEL
-
175VY-13310-10-00 ROTOR ASSY 1ROTOR ASSY 1
-
1893603-12007-00 PIN, DOWELPIN, DOWEL
-
195VY-13336-00-00 HOUSING, ROTORHOUSING, ROTOR
-
2091312-06040-00 BOLTBOLT
-
215VY-13355-00-00 SPROCKET, DRIVENSPROCKET, DRIVEN
-
2290105-06066-00 BOLT, FLANGEBOLT, FLANGE
-
235VY-12456-10-00 WASHERWASHER
-
2491808-30031-00 PIN, DOWELPIN, DOWEL
-
2590110-06167-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2693210-357A2-00 O-RINGO-RING
-
274XV-12485-00-00 PIPE 5PIPE 5
-
2893210-06667-00 O-RINGO-RING
-
295VY-12481-10-00 PIPE 1PIPE 1
-
3093210-235A1-00 O-RINGO-RING
-
3193210-27370-00 O-RINGO-RING
-
325VY-12588-00-00 HOSE 5HOSE 5
-
3390467-200A0-00 CLIPCLIP
-
3490450-32001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
3590110-06161-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
362D1-12484-00-00 PIPE 4PIPE 4
-
3790430-06014-00 ...GASKET...GASKET
-
3890153-06002-00 ...SCREW, HEXAGON...SCREW, HEXAGON
-
3993210-235A1-00 O-RINGO-RING
-
4090480-12010-00 GROMMETGROMMET
-
4190387-06112-00 COLLARCOLLAR
-
4290110-06161-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
4390110-06174-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
4490201-06079-00 WASHER, PLATEWASHER, PLATE
-
4590467-200A0-00 CLIPCLIP
