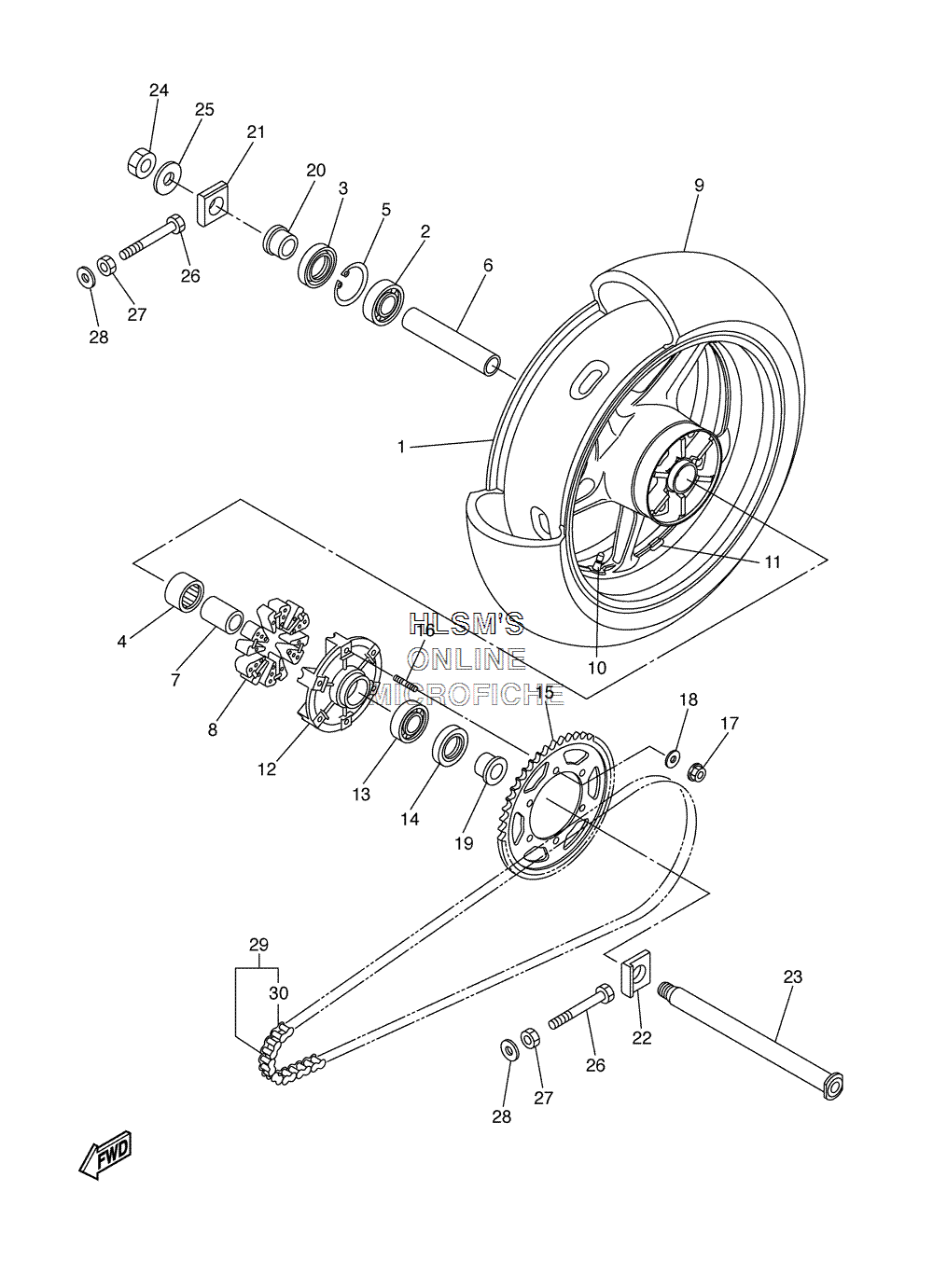

WHEEL - REAR для Yamaha FZS10 - 2006 года выпуска
-
№АртикулНазвание
-
15VY-25338-00-98 CAST WHEEL, REARCAST WHEEL, REAR
-
293306-20531-00 BEARINGBEARING
-
393106-40013-00 OIL SEALOIL SEAL
-
493317-33590-00 BEARINGBEARING
-
593420-61M07-00 CIRCLIPCIRCLIP
-
65PW-25317-00-00 SPACER, BEARINGSPACER, BEARING
-
72D1-25377-00-00 COLLAR, WHEELCOLLAR, WHEEL
-
85VX-25364-00-00 DAMPERDAMPER
-
994119-17062-00 TIRE (190/50 ZR17M/C 73W D221) (OPT) (DUNLOP)TIRE (190/50 ZR17M/C 73W D221) (OPT) (DUNLOP)
-
1093900-00030-00 VALVE, RIM (TR412) (TAIHEIYO)VALVE, RIM (TR412) (TAIHEIYO)
-
115MT-25398-10-00 BALANCER, WHEEL (20G) (OPT)BALANCER, WHEEL (20G) (OPT)
-
115MT-25398-20-00 BALANCER, WHEEL (30G) (OPT)BALANCER, WHEEL (30G) (OPT)
-
115MT-25398-00-00 BALANCER, WHEEL (10G) (OPT)BALANCER, WHEEL (10G) (OPT)
-
122D1-25366-00-00 CLUTCH, HUBCLUTCH, HUB
-
1393306-20531-00 BEARINGBEARING
-
1493106-40013-00 OIL SEALOIL SEAL
-
152D1-25445-20-00 SPROCKET, DRIVEN (45T)SPROCKET, DRIVEN (45T)
-
1690116-10485-00 BOLT, STUDBOLT, STUD
-
1790185-10009-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1890201-10021-00 WASHER, PLATEWASHER, PLATE
-
1990387-28001-00 COLLARCOLLAR
-
202D1-25383-00-00 COLLAR, WHEELCOLLAR, WHEEL
-
215VY-25388-00-00 PULLER, CHAIN 1PULLER, CHAIN 1
-
225VY-25389-00-00 PULLER, CHAIN 2PULLER, CHAIN 2
-
232D1-25381-00-00 AXLE, WHEELAXLE, WHEEL
-
2490185-24007-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2590201-25020-00 WASHER, PLATEWASHER, PLATE
-
2690101-08013-00 BOLTBOLT
-
2795302-08600-00 NUT, HEXAGONNUT, HEXAGON
-
2890201-08057-00 WASHER, PLATEWASHER, PLATE
-
2994582-10122-00 CHAIN (DID50VA8-122LL)CHAIN (DID50VA8-122LL)
-
3094682-05031-00 ...JOINT, CHAIN (DID 50VA8-ZJ)...JOINT, CHAIN (DID 50VA8-ZJ)
