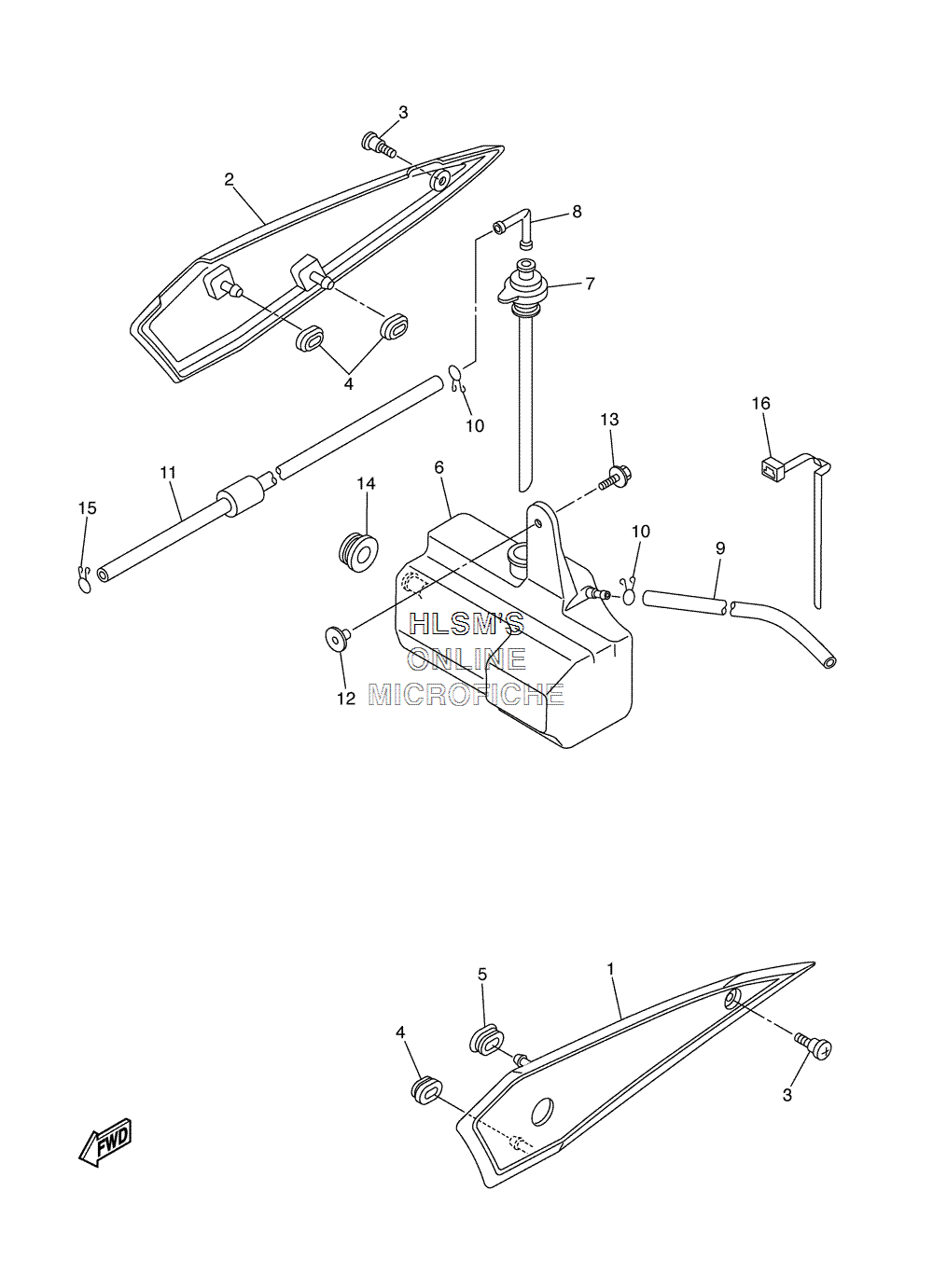

SIDE COVER для Yamaha FZS10 - 2006 года выпуска
-
№АртикулНазвание
-
12D1-21711-00-00 COVER, SIDE 1COVER, SIDE 1
-
22D1-21721-00-00 COVER, SIDE 2COVER, SIDE 2
-
390149-06165-00 SCREWSCREW
-
490480-01559-00 GROMMETGROMMET
-
52D1-21719-00-00 GROMMETGROMMET
-
62D1-21871-00-00 TANK, RECOVERYTANK, RECOVERY
-
75VY-21875-00-00 CAPCAP
-
826H-21828-00-00 ELBOWELBOW
-
990445-08022-00 HOSEHOSE
-
1090467-08075-00 CLIPCLIP
-
1190445-087K6-00 HOSE (L700)HOSE (L700)
-
1290387-062M9-00 COLLARCOLLAR
-
1390119-06228-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1490480-20001-00 GROMMETGROMMET
-
1590467-08075-00 CLIPCLIP
-
1690464-07M40-00 CLAMPCLAMP
