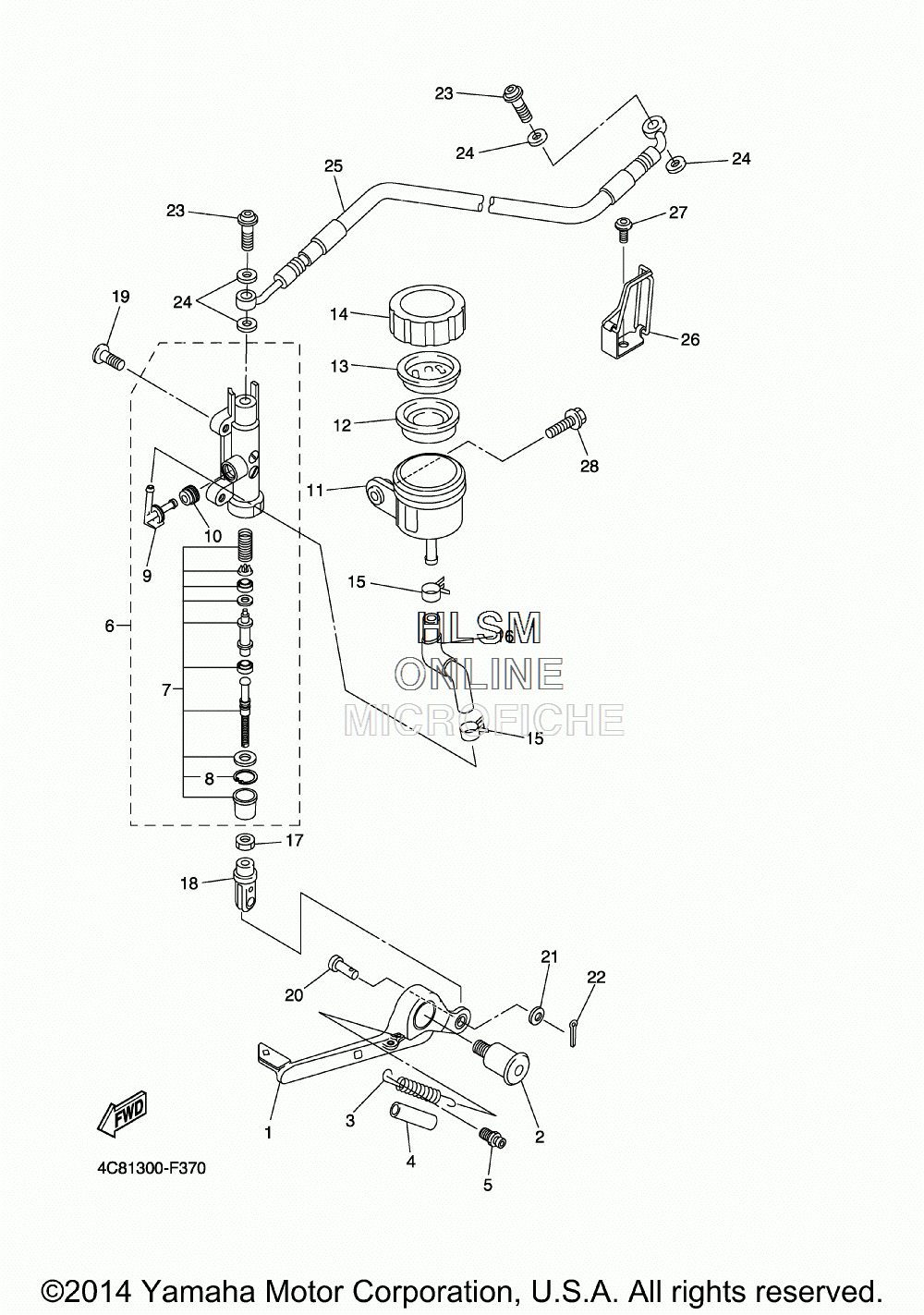

BRAKE - REAR MASTER CYLINDER для Yamaha R1 (4C84/4C85) [YZFR1W/C] - 2007 года выпуска
-
№АртикулНазвание
-
14C8-27211-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
24C8-27434-00-00 BOLTBOLT
-
390506-20193-00 SPRING, TENSIONSPRING, TENSION
-
490446-15386-00 HOSEHOSE
-
54C8-27813-00-00 PIN, PEDAL CRANKPIN, PEDAL CRANK
-
64C8-2583V-00-00 RR. MASTER CYLINDER ASSY.RR. MASTER CYLINDER ASSY.
-
75VX-W0042-60-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
83LN-2585G-00-00 ......CIRCLIP......CIRCLIP
-
92D1-2582A-00-00 ...JOINT...JOINT
-
104BP-2585F-00-00 ...BUSH...BUSH
-
112D1-25894-00-00 TANK, RESERVOIRTANK, RESERVOIR
-
125SL-25854-00-00 DIAPHRAGM, RESERVOIRDIAPHRAGM, RESERVOIR
-
135SL-25855-00-00 BUSH, DIAPHRAGMBUSH, DIAPHRAGM
-
145SL-25852-00-00 CAP, RESERVOIRCAP, RESERVOIR
-
1590467-120A3-00 CLIPCLIP
-
164C8-25895-00-00 HOSE, RESERVOIRHOSE, RESERVOIR
-
1795307-08700-00 NUTNUT
-
185SL-27222-00-00 JOINTJOINT
-
1990111-08038-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2091702-06018-00 PIN, CLEVISPIN, CLEVIS
-
2192902-06200-00 WASHERWASHER
-
2291402-16012-00 PIN, COTTERPIN, COTTER
-
2390401-10172-00 BOLT, UNIONBOLT, UNION
-
2490430-10005-00 GASKETGASKET
-
254C8-25874-00-00 HOSE, BRAKEHOSE, BRAKE
-
264C8-2588F-00-00 HOLDER, BRAKE HOSE 5HOLDER, BRAKE HOSE 5
-
2790111-06038-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2890119-05019-00 BOLT, WITH WASHERBOLT, WITH WASHER
