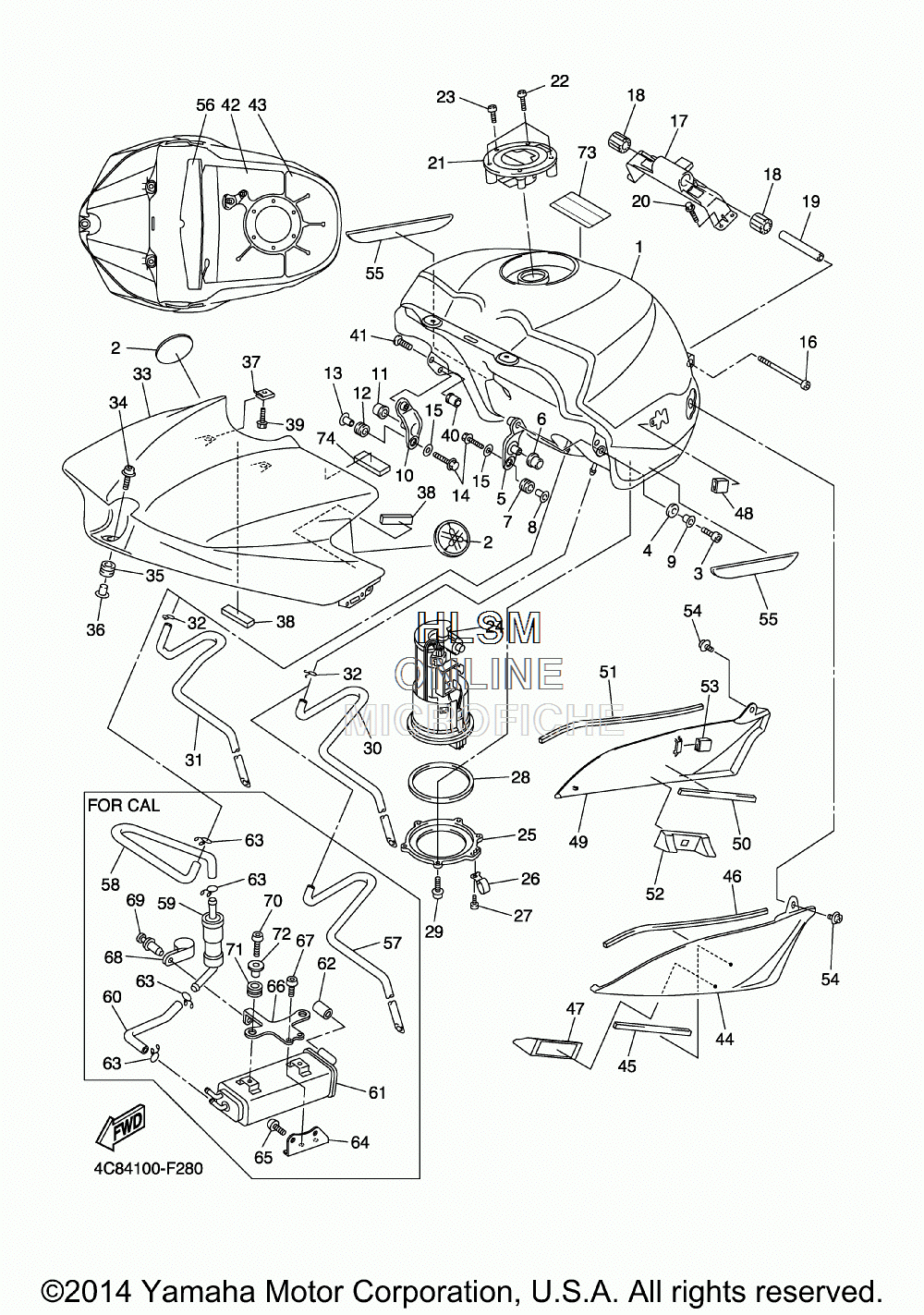

FUEL TANK для Yamaha R1 (4C84/4C85) [YZFR1W/C] - 2007 года выпуска
-
№АртикулНазвание
-
14C8-YK241-00-P0 FUEL TANK COMP. (OPT) (FOR DPBMC)FUEL TANK COMP. (OPT) (FOR DPBMC)
-
14C8-YK241-00-P3 FUEL TANK COMP. (OPT) (FOR DRMK)FUEL TANK COMP. (OPT) (FOR DRMK)
-
14C8-YK241-00-P4 FUEL TANK COMP. (OPT) (FOR DBNM8)FUEL TANK COMP. (OPT) (FOR DBNM8)
-
25SL-2413B-00-00 EMBLEMEMBLEM
-
391312-06016-00 BOLTBOLT
-
45VY-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
55VY-24191-00-00 BRACKET, FUEL TANK 1BRACKET, FUEL TANK 1
-
65VY-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
790480-10542-00 GROMMETGROMMET
-
890387-066Y6-00 COLLARCOLLAR
-
990387-061U9-00 COLLARCOLLAR
-
105VY-24192-00-00 BRACKET, FUEL TANK 2BRACKET, FUEL TANK 2
-
115VY-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
1290480-10542-00 GROMMETGROMMET
-
1390387-066Y6-00 COLLARCOLLAR
-
1495022-06030-00 BOLT, FLANGEBOLT, FLANGE
-
1590201-06095-00 WASHER, PLATEWASHER, PLATE
-
1691312-06090-00 BOLTBOLT
-
174C8-2413Y-00-00 BRACKET, TANK FITTINGBRACKET, TANK FITTING
-
185SL-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
1990387-06055-00 COLLARCOLLAR
-
2095022-06020-00 BOLT, FLANGEBOLT, FLANGE
-
215JJ-24602-00-00 CAP ASSYCAP ASSY
-
2290110-05112-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2391317-05010-00 BOLTBOLT
-
244C8-13907-00-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
254C8-24491-00-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
2690461-08003-00 CLAMPCLAMP
-
2790154-05012-00 SCREW, BINDINGSCREW, BINDING
-
285JW-24486-00-00 O-RINGO-RING
-
2990110-05014-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
305VY-24312-00-00 PIPE 2PIPE 2
-
314C8-24316-00-00 PIPE 6PIPE 6
-
3290467-09006-00 CLIPCLIP
-
334C8-2171A-00-P0 COVER, TOP (OPT) (FOR DPBMC)COVER, TOP (OPT) (FOR DPBMC)
-
334C8-2171A-00-P3 COVER, TOP (OPT) (FOR DRMK)COVER, TOP (OPT) (FOR DRMK)
-
334C8-2171A-00-P5 COVER, TOP (OPT) (MBL2 FOR DBNM8)COVER, TOP (OPT) (MBL2 FOR DBNM8)
-
3490110-06233-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3590480-12314-00 GROMMETGROMMET
-
3690387-06194-00 COLLARCOLLAR
-
3790183-05074-00 NUT, SPRINGNUT, SPRING
-
384C8-24182-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
3990105-05002-00 BOLT, FLANGEBOLT, FLANGE
-
4090179-05523-00 NUTNUT
-
4198907-05014-00 SCREW, BINDSCREW, BIND
-
425VY-2414N-00-00 DAMPER, PLATE 4DAMPER, PLATE 4
-
435VY-2414P-00-00 DAMPER, PLATE 5DAMPER, PLATE 5
-
444C8-24129-00-00 COVER, SIDE 1COVER, SIDE 1
-
454C8-2414J-00-00 DAMPER, PLATE 2DAMPER, PLATE 2
-
464C8-2414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
-
474C8-2414N-00-00 DAMPER, PLATE 4DAMPER, PLATE 4
-
485PW-2411J-01-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
494C8-24139-00-00 COVER, SIDE 2COVER, SIDE 2
-
504C8-2414J-00-00 DAMPER, PLATE 2DAMPER, PLATE 2
-
514C8-2414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
-
524C8-2414P-00-00 DAMPER, PLATE 5DAMPER, PLATE 5
-
535PW-2411J-01-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
5490159-05015-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
554C8-2414K-00-00 DAMPER, PLATE 3DAMPER, PLATE 3
-
565VY-2414R-00-00 DAMPER, PLATE 6DAMPER, PLATE 6
-
575VY-24312-00-00 PIPE 2PIPE 2
-
585VY-24313-00-00 PIPE 3PIPE 3
-
595RB-24180-00-00 ROLL OVER VALVE ASSYROLL OVER VALVE ASSY
-
605VY-24314-00-00 PIPE 4PIPE 4
-
615VY-24170-00-00 CANISTER ASSYCANISTER ASSY
-
6290445-11418-00 HOSE (L18)HOSE (L18)
-
6390467-09006-00 CLIPCLIP
-
644C8-2419F-00-00 BRACKET, CANISTORBRACKET, CANISTOR
-
6592012-06016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
664C8-24216-00-00 STAYSTAY
-
6792012-06010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
6890461-15139-00 CLAMPCLAMP
-
6990269-05001-00 RIVETRIVET
-
7092017-06016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
7190480-13018-00 GROMMETGROMMET
-
7290387-062L2-00 COLLARCOLLAR
-
734C8-2118K-00-00 LABEL, CAUTIONLABEL, CAUTION
-
744C8-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
