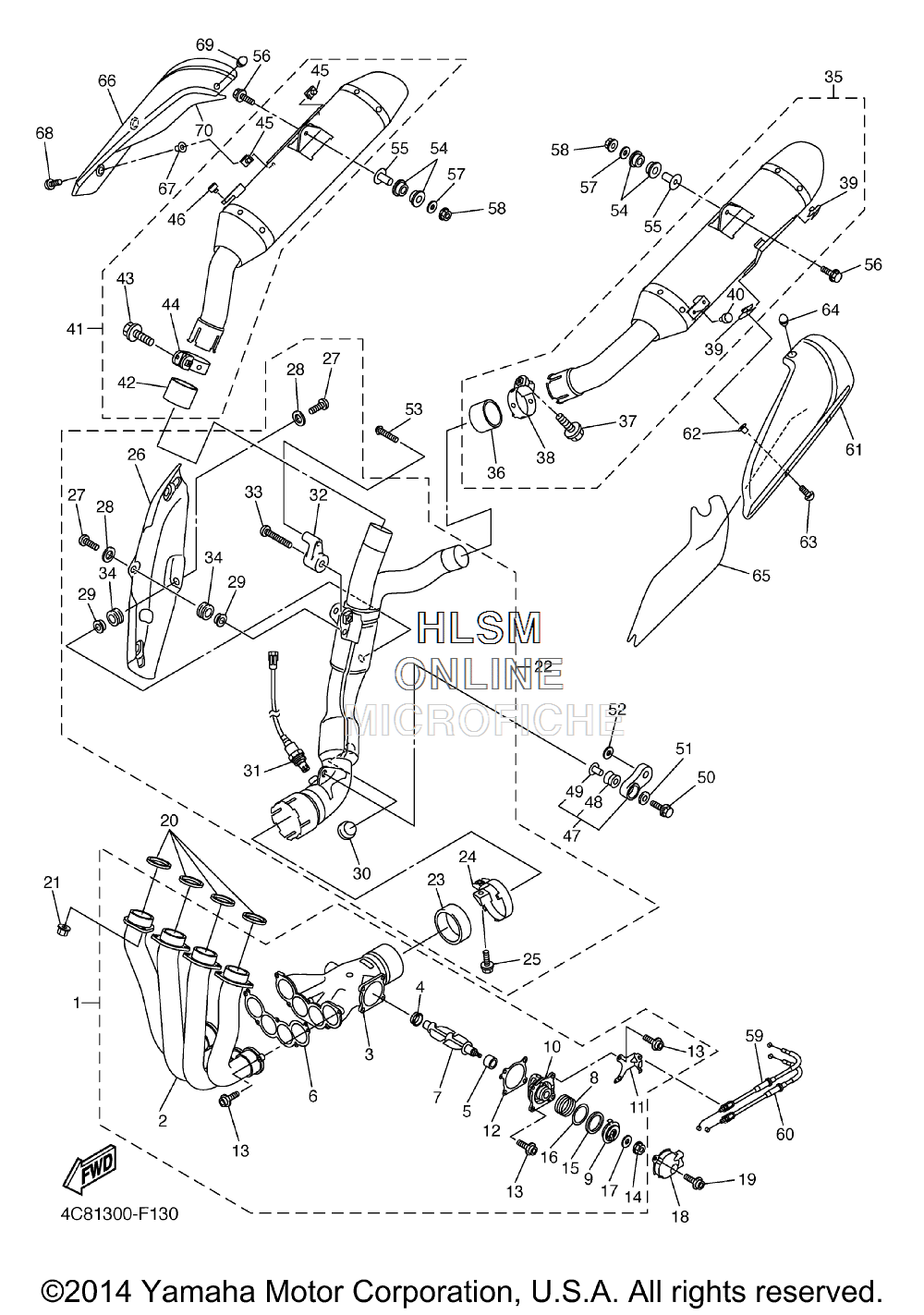

EXHAUST для Yamaha R1 (4C84/4C85) [YZFR1W/C] - 2007 года выпуска
-
№АртикулНазвание
-
14C8-14610-00-00 EXHAUST PIPE ASSY 1EXHAUST PIPE ASSY 1
-
24C8-14602-00-00 ...EXHAUST PIPE COMP....EXHAUST PIPE COMP.
-
34C8-14615-00-00 ...JOINT, EXHAUST 1...JOINT, EXHAUST 1
-
45VY-14816-00-00 ...PLUG, BLIND...PLUG, BLIND
-
55VY-14638-00-00 ...COLLAR...COLLAR
-
65VY-14623-00-00 ...GASKET, EXHAUST PIPE...GASKET, EXHAUST PIPE
-
75VY-14821-00-00 ...ARM, SHAFT (VALVE)...ARM, SHAFT (VALVE)
-
85VY-14811-00-00 ...HOUSING...HOUSING
-
95VY-14865-10-00 ...PULLEY...PULLEY
-
105VY-14856-00-00 ...SPRING...SPRING
-
115VY-14867-00-00 ...BRACKET...BRACKET
-
125VY-14643-00-00 ...GASKET 3...GASKET 3
-
1390110-06110-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
1490179-06M28-00 ...NUT...NUT
-
155VY-14648-00-00 ...COLLAR 2...COLLAR 2
-
165VY-14674-00-00 ...VALVE, PLATE...VALVE, PLATE
-
1792990-06200-00 ...WASHER, PLAIN...WASHER, PLAIN
-
185VY-14826-00-00 PROTECTOR, EXHAUSTPROTECTOR, EXHAUST
-
1990110-06110-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
204FM-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
2190179-08410-00 NUTNUT
-
224C8-14740-00-00 CATALYST ASSY.CATALYST ASSY.
-
234C8-14755-00-00 ...GASKET, SILENCER...GASKET, SILENCER
-
244C8-14715-00-00 ...BAND, MUFFLER...BAND, MUFFLER
-
2595814-08030-00 ...BOLT, FLANGE...BOLT, FLANGE
-
264C8-14738-00-00 ...PROTECTOR, MUFFLER 3...PROTECTOR, MUFFLER 3
-
2792014-06012-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
2890201-06079-00 ...WASHER, PLATE...WASHER, PLATE
-
2990387-06188-00 ...COLLAR...COLLAR
-
304FM-24181-00-00 ...DAMPER, LOCATING 1...DAMPER, LOCATING 1
-
314C8-8592A-00-00 ...SENSOR, OXYGEN...SENSOR, OXYGEN
-
324C8-21880-00-00 ...STAY ASSY, 1...STAY ASSY, 1
-
3390111-08021-00 ...BOLT, HEX. SOCKET BUTTON...BOLT, HEX. SOCKET BUTTON
-
3490480-12021-00 ...GROMMET...GROMMET
-
354C8-14710-10-00 MUFFLER ASSY 1MUFFLER ASSY 1
-
365VY-14714-00-00 ...GASKET, MUFFLER...GASKET, MUFFLER
-
3790105-08063-00 ...BOLT, FLANGE...BOLT, FLANGE
-
385VY-14715-00-00 ...BAND, MUFFLER...BAND, MUFFLER
-
3990183-060A2-00 ...NUT, SPRING...NUT, SPRING
-
4090338-06007-00 ...PLUG...PLUG
-
414C8-14720-10-00 MUFFLER ASSY 2MUFFLER ASSY 2
-
425VY-14714-00-00 ...GASKET, MUFFLER...GASKET, MUFFLER
-
4390105-08063-00 ...BOLT, FLANGE...BOLT, FLANGE
-
443D8-14715-00-00 ...BAND, MUFFLER...BAND, MUFFLER
-
4590183-060A2-00 ...NUT, SPRING...NUT, SPRING
-
4690338-06007-00 ...PLUG...PLUG
-
474C8-21890-00-00 STAY ASSY, 2STAY ASSY, 2
-
485VY-14747-00-00 ...DAMPER, MUFFLER...DAMPER, MUFFLER
-
4990387-08021-00 ...COLLAR...COLLAR
-
5095812-08040-00 BOLT, FLANGEBOLT, FLANGE
-
5190201-087G2-00 WASHER, PLATEWASHER, PLATE
-
5290201-10054-00 WASHER, PLATEWASHER, PLATE
-
5390111-08058-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
545VY-27424-00-00 DAMPER, FOOTREST 2DAMPER, FOOTREST 2
-
5590387-08020-00 COLLARCOLLAR
-
5695814-08045-00 BOLT, FLANGEBOLT, FLANGE
-
5790201-08034-00 WASHER, PLATEWASHER, PLATE
-
5895604-08200-00 NUT, U FLANGENUT, U FLANGE
-
594C8-1133E-00-00 CABLE, PULLEY 1CABLE, PULLEY 1
-
604C8-1133F-00-00 CABLE, PULLEY 2CABLE, PULLEY 2
-
614C8-14718-00-P0 PROTECTOR, MUFFLER 1 (MBL2)PROTECTOR, MUFFLER 1 (MBL2)
-
6290387-062L2-00 COLLARCOLLAR
-
6390111-06038-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
644C8-14757-00-00 DAMPER, MUFFLER 2DAMPER, MUFFLER 2
-
654C8-1475P-00-00 SEATSEAT
-
664C8-14728-00-P0 PROTECTOR, MUFFLER 2 (MBL2)PROTECTOR, MUFFLER 2 (MBL2)
-
6790387-062L2-00 COLLARCOLLAR
-
6890111-06038-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
694C8-14757-00-00 DAMPER, MUFFLER 2DAMPER, MUFFLER 2
-
704C8-1476P-00-00 SEATSEAT
