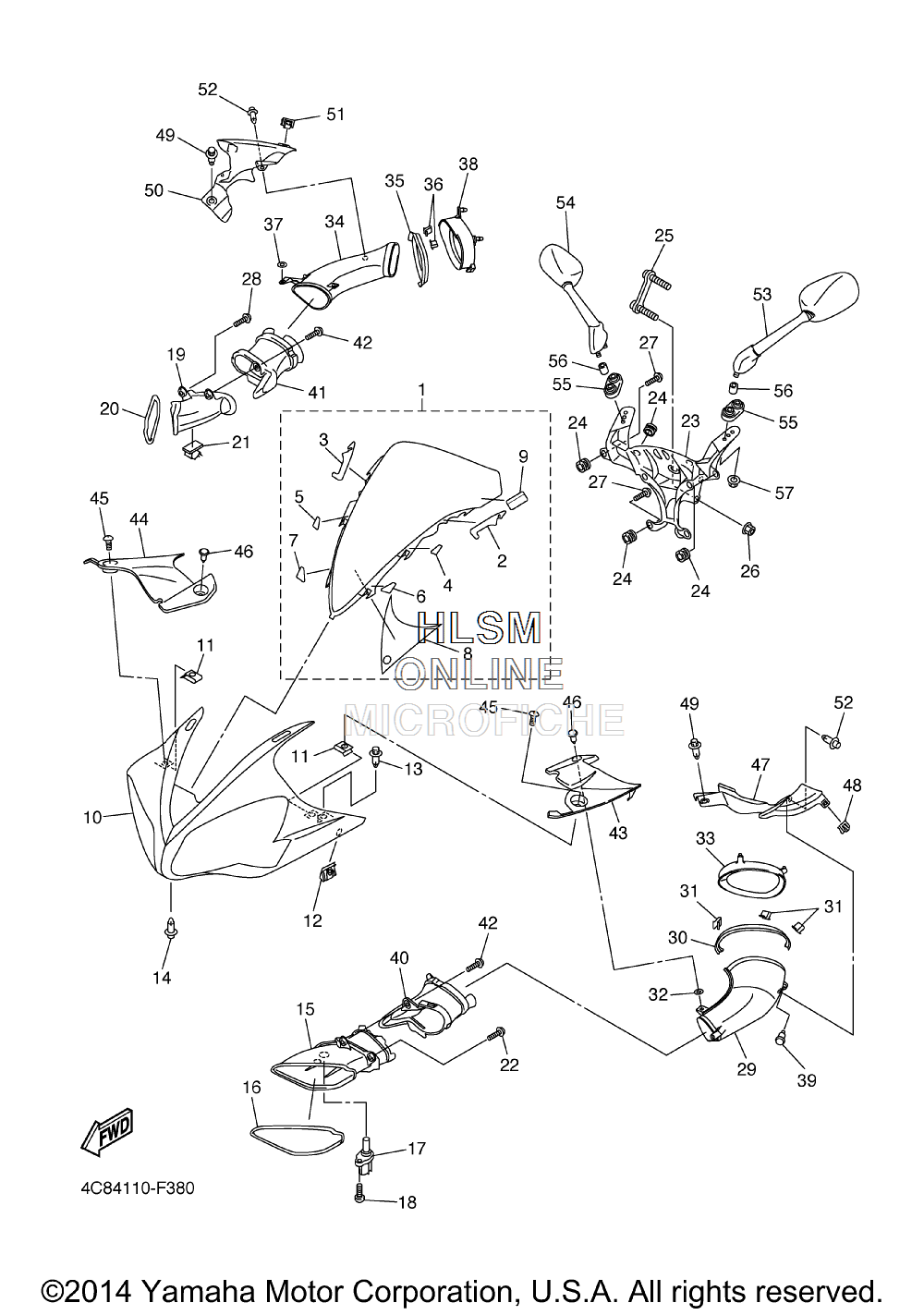

COWLING для Yamaha R1 (4C84/4C85) [YZFR1W/C] - 2007 года выпуска
-
№АртикулНазвание
-
14C8-Y2881-10-00 WINDSHIELDWINDSHIELD
-
24C8-28428-00-00 ...SEAL 1...SEAL 1
-
34C8-28429-00-00 ...SEAL 2...SEAL 2
-
44C8-2844E-00-00 ...SEAL 3...SEAL 3
-
54C8-2846F-00-00 ...SEAL 4...SEAL 4
-
64C8-2847F-00-00 ...SEAL 5...SEAL 5
-
74C8-2848F-00-00 ...SEAL 6...SEAL 6
-
84C8-2832P-00-00 ...GRAPHIC 18...GRAPHIC 18
-
95JW-2835Y-00-00 ...LABEL, CAUTION...LABEL, CAUTION
-
104C8-2835G-00-P4 BODY, FRONT UPPER 1 (OPT) (FOR DBNM8)BODY, FRONT UPPER 1 (OPT) (FOR DBNM8)
-
104C8-2835G-00-P3 BODY, FRONT UPPER 1 (OPT) (FOR DRMK)BODY, FRONT UPPER 1 (OPT) (FOR DRMK)
-
104C8-2835G-00-P0 BODY, FRONT UPPER 1 (OPT) (FOR DPBMC)BODY, FRONT UPPER 1 (OPT) (FOR DPBMC)
-
1190183-05076-00 NUT, SPRINGNUT, SPRING
-
125PW-2177L-00-00 PLATE, SPRINGPLATE, SPRING
-
1390269-06008-00 RIVETRIVET
-
1490269-06008-00 RIVETRIVET
-
154C8-2837N-00-00 GRILL, AIR INTAKE 1GRILL, AIR INTAKE 1
-
164C8-28345-00-00 MOLE 1MOLE 1
-
178FP-85886-00-00 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
-
1897707-50116-00 SCREW, TAPPINGSCREW, TAPPING
-
194C8-2837R-00-00 GRILL, AIR INTAKE 2GRILL, AIR INTAKE 2
-
204C8-28346-00-00 MOLE 2MOLE 2
-
2190464-25160-00 CLAMPCLAMP
-
2290160-05007-00 SCREW, ROUND TAPPINGSCREW, ROUND TAPPING
-
234C8-28356-00-00 STAY 1STAY 1
-
244XV-83513-00-00 DAMPERDAMPER
-
254C8-28336-00-00 PLATEPLATE
-
2695607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2790160-05006-00 SCREW, ROUND TAPPINGSCREW, ROUND TAPPING
-
2890160-05007-00 SCREW, ROUND TAPPINGSCREW, ROUND TAPPING
-
294C8-2838N-00-P0 DUCT 1 (OPT) (FOR DPBMC)DUCT 1 (OPT) (FOR DPBMC)
-
294C8-2838N-00-P3 DUCT 1 (OPT) (FOR DRMK)DUCT 1 (OPT) (FOR DRMK)
-
294C8-2838N-00-P4 DUCT 1 (OPT) (FOR DBNM8)DUCT 1 (OPT) (FOR DBNM8)
-
304C8-2834E-00-00 DAMPER 3DAMPER 3
-
311FK-2171H-00-00 GUIDEGUIDE
-
325VY-2834V-00-00 PROTECTOR 1PROTECTOR 1
-
334C8-28371-00-00 DAMPERDAMPER
-
344C8-2838R-00-P0 DUCT 2 (OPT) (FOR DPBMC)DUCT 2 (OPT) (FOR DPBMC)
-
344C8-2838R-00-P3 DUCT 2 (OPT) (FOR DRMK)DUCT 2 (OPT) (FOR DRMK)
-
344C8-2838R-00-P4 DUCT 2 (OPT) (FOR DBNM8)DUCT 2 (OPT) (FOR DBNM8)
-
354C8-2834F-00-00 DAMPERDAMPER
-
361FK-2171H-00-00 GUIDEGUIDE
-
375VY-2834V-00-00 PROTECTOR 1PROTECTOR 1
-
384C8-28372-00-00 DAMPERDAMPER
-
3990269-07007-00 RIVETRIVET
-
404C8-2838T-00-00 DUCT 3DUCT 3
-
414C8-2838U-00-00 DUCT 4DUCT 4
-
4290160-05007-00 SCREW, ROUND TAPPINGSCREW, ROUND TAPPING
-
434C8-2837L-00-00 PANEL, CONSOLE 1PANEL, CONSOLE 1
-
444C8-2837M-00-00 PANEL, CONSOLE 2PANEL, CONSOLE 2
-
4590154-05013-00 SCREW, BINDINGSCREW, BINDING
-
4690269-06008-00 RIVETRIVET
-
474C8-2837V-00-00 GRILL, AIR OUTLET 1GRILL, AIR OUTLET 1
-
485PW-2177L-00-00 PLATE, SPRINGPLATE, SPRING
-
4990269-06001-00 RIVETRIVET
-
504C8-2837W-00-00 GRILL, AIR OUTLET 2GRILL, AIR OUTLET 2
-
515PW-2177L-00-00 PLATE, SPRINGPLATE, SPRING
-
5290269-06001-00 RIVETRIVET
-
534C8-26280-00-00 REAR VIEW MIRROR ASSY (LEFT)REAR VIEW MIRROR ASSY (LEFT)
-
544C8-26290-00-00 REAR VIEW MIRROR ASSY (RIGHT)REAR VIEW MIRROR ASSY (RIGHT)
-
554C8-26298-00-00 PLATE, MIRROR FITTING 1PLATE, MIRROR FITTING 1
-
5690387-064T3-00 COLLARCOLLAR
-
5790176-06055-00 NUT, CROWNNUT, CROWN
