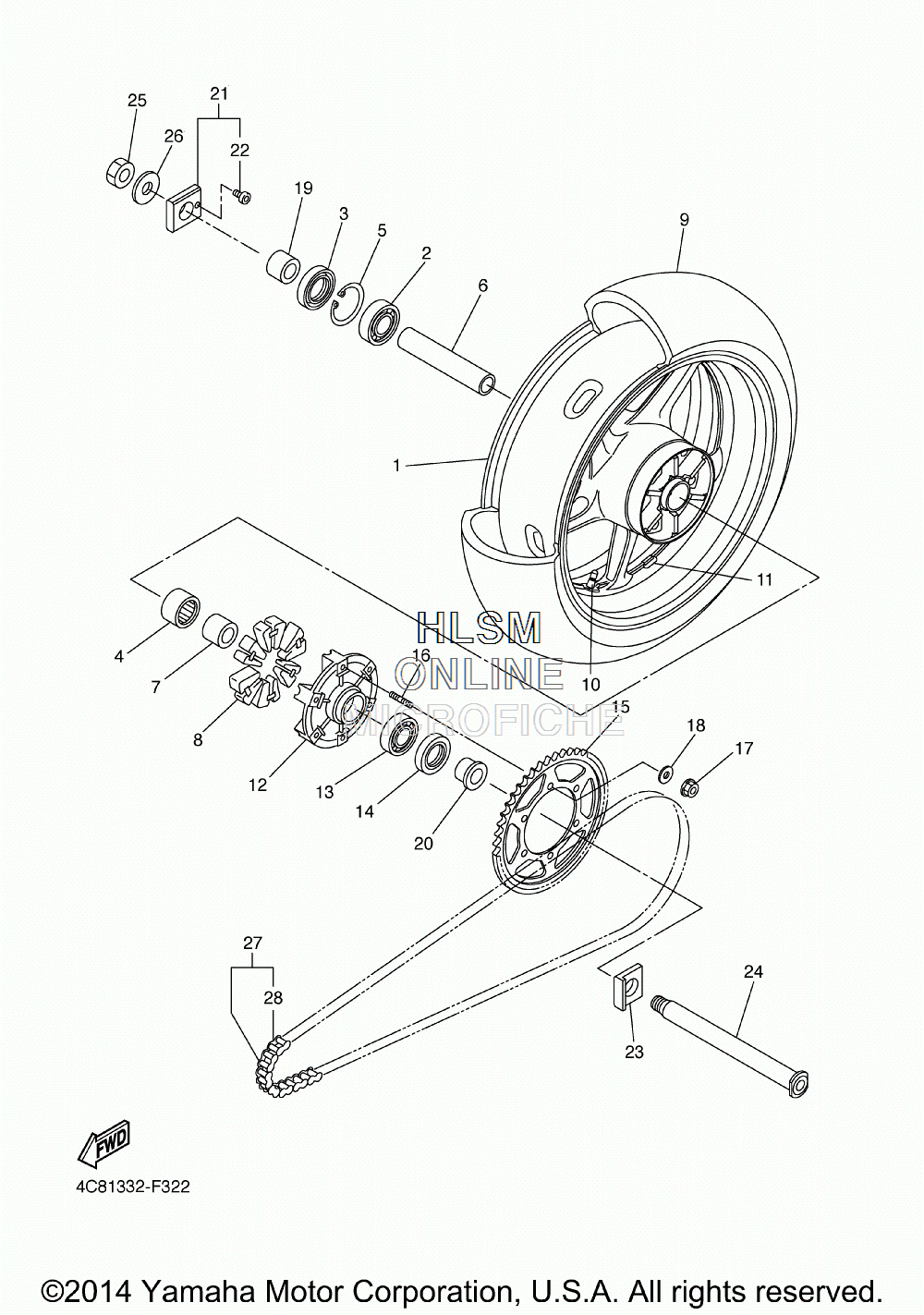

WHEEL - REAR для Yamaha R1 (4C84/4C85) [YZFR1W/C] - 2007 года выпуска
-
№АртикулНазвание
-
15VY-25338-00-98 CAST WHEEL, REAR (FOR DPBMC)CAST WHEEL, REAR (FOR DPBMC)
-
15VY-25338-00-0X CAST WHEEL, REAR (FOR DRMK, DBNM8)CAST WHEEL, REAR (FOR DRMK, DBNM8)
-
293306-20531-00 BEARINGBEARING
-
393106-40013-00 OIL SEALOIL SEAL
-
493317-43580-00 BEARINGBEARING
-
593420-61M07-00 CIRCLIPCIRCLIP
-
65PW-25317-00-00 SPACER, BEARINGSPACER, BEARING
-
74XV-25383-00-00 COLLAR, WHEELCOLLAR, WHEEL
-
82C0-25364-00-00 DAMPERDAMPER
-
994119-17065-00 TIRE (190/50 ZR17 M/C 73W) (OPT) (CALIF ONLY) (UR LM PIRELLI - OBTAIN LOCALLY)TIRE (190/50 ZR17 M/C 73W) (OPT) (CALIF ONLY) (UR LM PIRELLI - OBTAIN LOCALLY)
-
994119-17066-00 TIRE (190/50 ZR17M/C 73W PILOT) (OPT) (LM MICHELIN - OBTAIN LOCALLY)TIRE (190/50 ZR17M/C 73W PILOT) (OPT) (LM MICHELIN - OBTAIN LOCALLY)
-
1093900-00030-00 VALVE, RIM (TR412) (TAIHEIYO)VALVE, RIM (TR412) (TAIHEIYO)
-
115MT-25398-00-00 BALANCER, WHEEL (10G) (OPT)BALANCER, WHEEL (10G) (OPT)
-
115MT-25398-20-00 BALANCER, WHEEL (30G) (OPT)BALANCER, WHEEL (30G) (OPT)
-
115MT-25398-10-00 BALANCER, WHEEL (20G) (OPT)BALANCER, WHEEL (20G) (OPT)
-
125SL-25366-00-00 CLUTCH, HUBCLUTCH, HUB
-
1393306-20531-00 BEARINGBEARING
-
1493106-40013-00 OIL SEALOIL SEAL
-
155VY-25445-20-00 SPROCKET, DRIVEN (45T)SPROCKET, DRIVEN (45T)
-
1690116-10485-00 BOLT, STUDBOLT, STUD
-
1790185-10009-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1890201-10021-00 WASHER, PLATEWASHER, PLATE
-
1990387-28016-00 COLLARCOLLAR
-
2090387-28019-00 COLLARCOLLAR
-
214C8-25388-00-00 PULLER, CHAIN 1PULLER, CHAIN 1
-
2290110-05030-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
235VY-25389-00-00 PULLER, CHAIN 2PULLER, CHAIN 2
-
244C8-25381-00-00 AXLE, WHEELAXLE, WHEEL
-
2590185-24007-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2690201-25020-00 WASHER, PLATEWASHER, PLATE
-
2794582-10118-00 CHAIN (DID50VA8-118LL)CHAIN (DID50VA8-118LL)
-
2894682-05031-00 ...JOINT, CHAIN (DID 50VA8-ZJ)...JOINT, CHAIN (DID 50VA8-ZJ)
