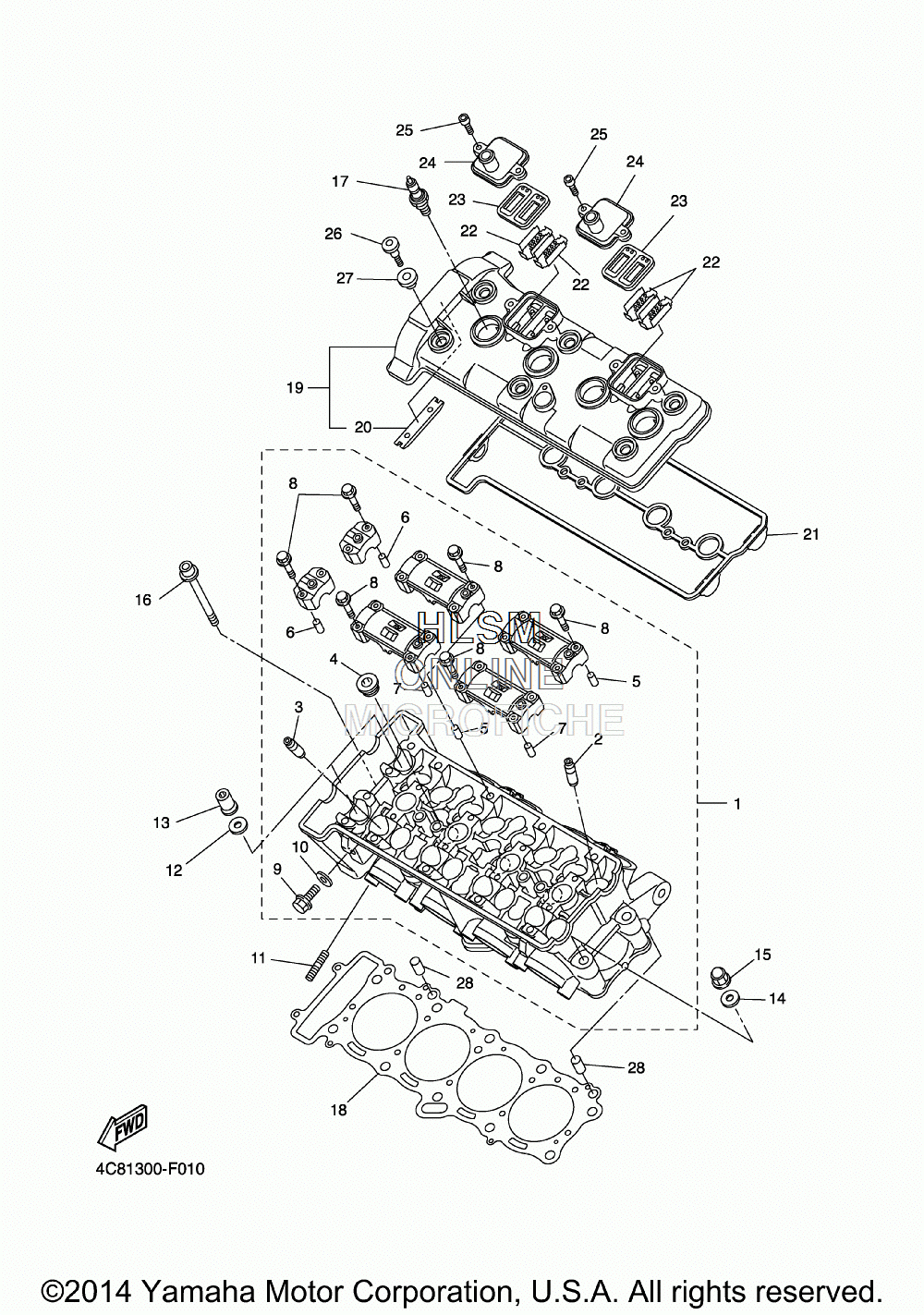

CYLINDER HEAD для Yamaha R1 (4C84/4C85) [YZFR1W/C] - 2007 года выпуска
-
№АртикулНазвание
-
14C8-11101-00-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
24C8-11133-10-00 ...GUIDE, VALVE 1...GUIDE, VALVE 1
-
34C8-11134-10-00 ...GUIDE, VALVE 2...GUIDE, VALVE 2
-
490340-18002-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
591808-16023-00 ...PIN, DOWEL...PIN, DOWEL
-
691808-16023-00 ...PIN, DOWEL...PIN, DOWEL
-
791808-16023-00 ...PIN, DOWEL...PIN, DOWEL
-
890105-06027-00 ...BOLT, FLANGE...BOLT, FLANGE
-
995024-06012-00 ...BOLT, FLANGE (SMALL HEAD)...BOLT, FLANGE (SMALL HEAD)
-
1090430-06014-00 ...GASKET...GASKET
-
1195612-08625-00 BOLT, STUDBOLT, STUD
-
1290201-10050-00 WASHER, PLATEWASHER, PLATE
-
1390179-10414-00 NUTNUT
-
1490201-10050-00 WASHER, PLATEWASHER, PLATE
-
1590176-10075-00 NUT, CROWNNUT, CROWN
-
1690110-06212-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
17NGK-CR9EK-00-00 PLUG, SPARK (NGK CR9EK)PLUG, SPARK (NGK CR9EK)
-
184C8-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
194C8-11191-00-00 COVER, CYLINDER HEAD 1COVER, CYLINDER HEAD 1
-
205BE-12241-00-00 ...GUIDE, STOPPER 2...GUIDE, STOPPER 2
-
214C8-11193-00-00 GASKET, HEAD COVER 1GASKET, HEAD COVER 1
-
225VY-1482K-00-00 PLATEPLATE
-
235SL-14890-10-00 REED VALVE ASSYREED VALVE ASSY
-
245VY-14899-00-00 CAP, CASECAP, CASE
-
2590110-06175-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2690109-066F0-00 BOLTBOLT
-
275VY-1111G-00-00 RUBBER, MOUNT 1RUBBER, MOUNT 1
-
2899530-10114-00 PIN, DOWELPIN, DOWEL
