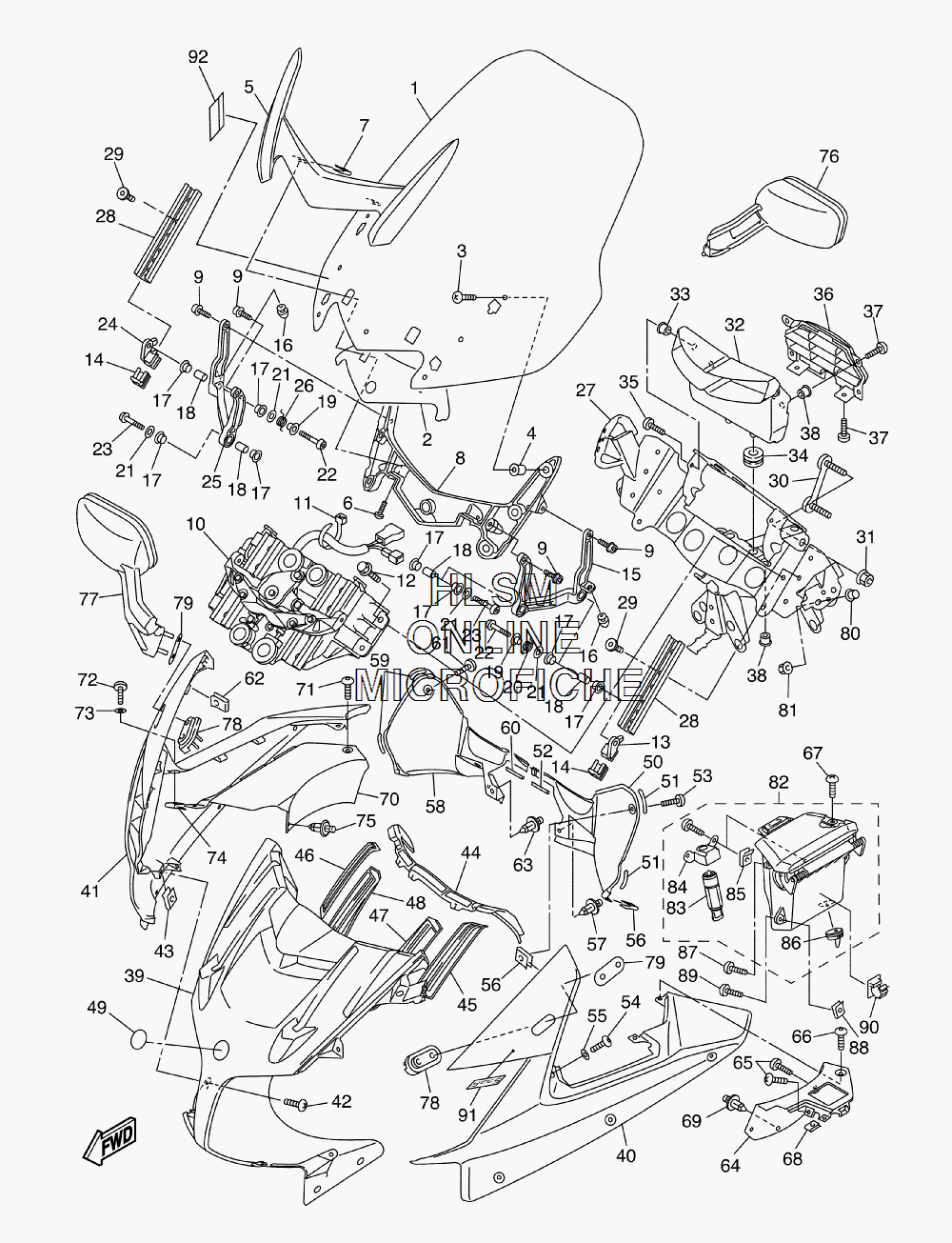

COWLING для Yamaha FJR1300AE - 2008 года выпуска
-
№АртикулНазвание
-
13P6-28381-20-00 WINDSHIELDWINDSHIELD
-
23P6-2838G-00-00 SEAT 1SEAT 1
-
390150-05024-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
490179-05523-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
53P6-28323-00-P9 WASHER, LEG SHIELD (DNMG)WASHER, LEG SHIELD (DNMG)
-
692012-05012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
790183-050A7-00 NUT, SPRINGNUT, SPRING
-
83P6-28322-10-00 STAY 2STAY 2
-
990110-06215-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
103P6-83306-00-00 DRIVE UNIT ASSYDRIVE UNIT ASSY
-
115Y9-12491-00-00 CLAMP 1CLAMP 1
-
1295822-06012-00 BOLT, FLANGEBOLT, FLANGE
-
133P6-28444-00-00 HINGE 1HINGE 1
-
143P6-28396-10-00 PLATE 1PLATE 1
-
153P6-2833C-10-00 LINK 1LINK 1
-
164G0-21639-00-00 DAMPER 2DAMPER 2
-
175JW-28329-00-00 SPACERSPACER
-
1890387-06131-00 COLLARCOLLAR
-
1990387-06150-00 COLLARCOLLAR
-
2090508-18134-00 SPRING, TORSIONSPRING, TORSION
-
2190201-06088-00 WASHER, PLATEWASHER, PLATE
-
2292012-06035-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2392012-06025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
243P6-2845E-00-00 HINGE 2HINGE 2
-
253P6-2833D-10-00 LINK 2LINK 2
-
2690508-18135-00 SPRING, TORSIONSPRING, TORSION
-
273P6-28356-10-00 STAY 1STAY 1
-
283P6-2831E-10-00 STAY, GUIDE 1STAY, GUIDE 1
-
2990110-06284-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
305JW-28336-00-00 PLATEPLATE
-
3195707-10500-00 NUT, FLANGE (8AB)NUT, FLANGE (8AB)
-
323P6-2838N-00-00 DUCT 1DUCT 1
-
3390179-05523-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
3490480-12003-00 GROMMETGROMMET
-
3598902-05014-00 SCREW, BINDSCREW, BIND
-
363P6-2837V-00-00 GRILL, AIR OUTLET 1GRILL, AIR OUTLET 1
-
3790154-05005-00 SCREW, BINDINGSCREW, BINDING
-
3890179-05523-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
393P6-28351-00-P9 BODY, COWLING (DNMG)BODY, COWLING (DNMG)
-
403P6-W283G-00-P9 UPPER COWLING ASSY 1 (DNMG)UPPER COWLING ASSY 1 (DNMG)
-
413P6-W283H-00-P9 UPPER COWLING ASSY 2 (DNMG)UPPER COWLING ASSY 2 (DNMG)
-
4290154-05013-00 SCREW, BINDINGSCREW, BINDING
-
4390183-050A6-00 NUT, SPRINGNUT, SPRING
-
443P6-28428-10-00 SEAL 1SEAL 1
-
453P6-28429-00-00 SEAL 2SEAL 2
-
463P6-2844E-00-00 SEAL 3SEAL 3
-
473P6-2846F-00-00 SEAL 4SEAL 4
-
483P6-2847F-00-00 SEAL 5SEAL 5
-
495LV-2836B-01-00 TUNING FORK MARKTUNING FORK MARK
-
503P6-2837L-00-00 PANEL, CONSOLE 1PANEL, CONSOLE 1
-
513P6-28218-00-00 SEAL 1SEAL 1
-
523P6-28228-00-00 SEAL 2SEAL 2
-
5390111-05021-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
5490111-05007-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
5590202-05180-00 WASHER, PLATEWASHER, PLATE
-
5690183-050A6-00 NUT, SPRINGNUT, SPRING
-
5790269-06001-00 RIVETRIVET
-
583P6-2837M-00-00 PANEL, CONSOLE 2PANEL, CONSOLE 2
-
593P6-28218-00-00 SEAL 1SEAL 1
-
603P6-28228-00-00 SEAL 2SEAL 2
-
6190111-05021-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
6290183-050A6-00 NUT, SPRINGNUT, SPRING
-
6390269-06001-00 RIVETRIVET
-
643P6-2836M-00-00 PANEL, INNER 3PANEL, INNER 3
-
6590154-05007-00 SCREW, BINDINGSCREW, BINDING
-
6690111-05021-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
6790154-05007-00 SCREW, BINDINGSCREW, BINDING
-
6890183-050A6-00 NUT, SPRINGNUT, SPRING
-
6990269-06001-00 RIVETRIVET
-
703P6-2836N-00-00 PANEL, INNER 4PANEL, INNER 4
-
7190111-05021-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
7290111-05007-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
7390202-05180-00 WASHER, PLATEWASHER, PLATE
-
7490183-050A6-00 NUT, SPRINGNUT, SPRING
-
7590269-06001-00 RIVETRIVET
-
763P6-26280-00-P9 REAR VIEW MIRROR ASSY (LEFT) (DNMG)REAR VIEW MIRROR ASSY (LEFT) (DNMG)
-
773P6-26290-00-P9 REAR VIEW MIRROR ASSY (RIGHT) (DNMG)REAR VIEW MIRROR ASSY (RIGHT) (DNMG)
-
785JW-26298-00-00 PLATE, MIRROR FITTING 1PLATE, MIRROR FITTING 1
-
793P6-26299-00-00 PLATE, MIRROR FITTING 2PLATE, MIRROR FITTING 2
-
8090387-0602X-00 COLLARCOLLAR
-
8195702-06500-00 NUT, FLANGENUT, FLANGE
-
823P6-2830N-00-P9 BOX SUB ASSY (DNMG)BOX SUB ASSY (DNMG)
-
835VS-28470-00-00 ...LOCK ASSY...LOCK ASSY
-
845VS-28367-00-00 ...BRACKET...BRACKET
-
8590183-051A0-00 ...NUT, SPRING...NUT, SPRING
-
863P6-28187-00-00 ...GROMMET...GROMMET
-
8790167-05080-00 SCREW, TAPPINGSCREW, TAPPING
-
8890183-050A6-00 NUT, SPRINGNUT, SPRING
-
8990149-05299-00 SCREW (3YF)SCREW (3YF)
-
9090464-13185-00 CLAMPCLAMP
-
912D2-28315-60-00 EMBLEMEMBLEM
-
925JW-2835Y-00-00 LABEL, CAUTIONLABEL, CAUTION
