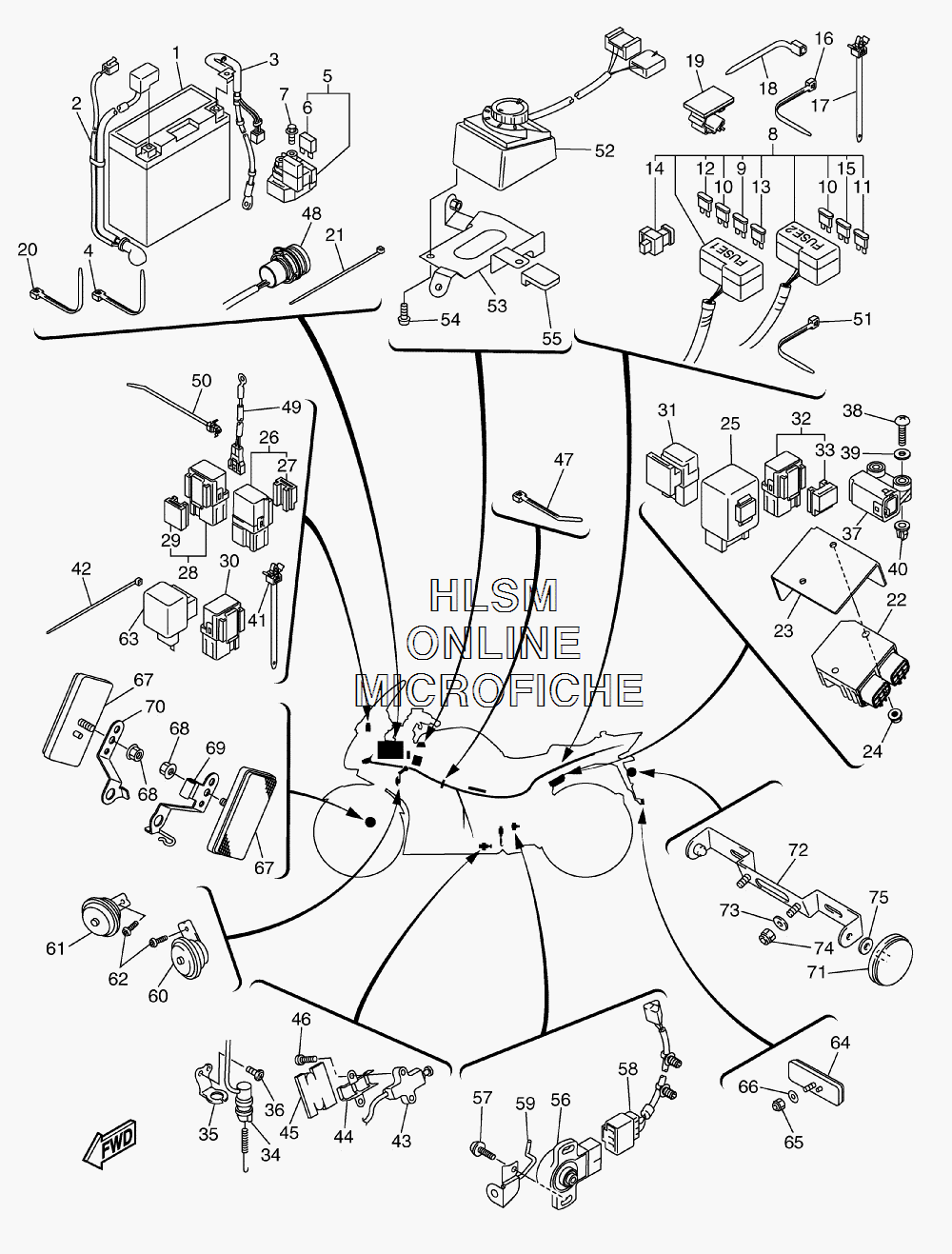

ELECTRICAL 2 для Yamaha FJR1300AE - 2008 года выпуска
-
№АртикулНазвание
-
1BTY-YT14B-40-00 BATTERY (YT14B-4 YUASA)BATTERY (YT14B-4 YUASA)
-
23P6-82115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
33P6-82116-10-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
41UA-82591-00-00 BANDBAND
-
53P6-81940-00-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
61AE-82151-00-00 ...FUSE (30 AMP, BLADE)...FUSE (30 AMP, BLADE)
-
795022-06008-00 BOLT, FLANGEBOLT, FLANGE
-
82D2-82590-40-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
95JJ-82151-50-00 ...FUSE (3A-BL)...FUSE (3A-BL)
-
105JJ-82151-30-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
115JJ-82151-10-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
125JJ-82151-70-00 ...FUSE (25A-BL)...FUSE (25A-BL)
-
135JJ-82151-60-00 ...FUSE (30A-BL)...FUSE (30A-BL)
-
145JW-82151-10-00 ...FUSE (50A)...FUSE (50A)
-
155JJ-82151-20-00 ...FUSE (20A-BL)...FUSE (20A-BL)
-
1690465-10098-00 CLAMPCLAMP
-
1790464-12036-00 CLAMPCLAMP
-
1890464-13073-00 CLAMPCLAMP
-
1990464-13185-00 CLAMPCLAMP
-
2090465-13275-00 CLAMPCLAMP
-
215Y9-12491-00-00 CLAMP 1CLAMP 1
-
221D7-81960-00-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
233P6-81975-00-00 PLATE, RECTIFIER FITTINGPLATE, RECTIFIER FITTING
-
2495602-06200-00 NUT-UNUT-U
-
255VK-81950-30-00 RELAY ASSYRELAY ASSY
-
265EA-81950-20-00 RELAY ASSYRELAY ASSY
-
275EA-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
-
285EA-81950-20-00 RELAY ASSYRELAY ASSY
-
295EA-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
-
305JJ-81950-10-00 RELAY ASSYRELAY ASSY
-
315DM-81950-00-00 RELAY ASSYRELAY ASSY
-
325EA-81950-20-00 RELAY ASSYRELAY ASSY
-
335EA-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
-
343P6-82530-00-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
355JW-2144G-00-00 STAY, STOP SWITCHSTAY, STOP SWITCH
-
3698902-05008-00 SCREW, BINDSCREW, BIND
-
375PS-82576-01-00 LEAN ANGLE SENSORLEAN ANGLE SENSOR
-
3897702-40025-00 SCREW, TAPPINGSCREW, TAPPING
-
3990201-04030-00 WASHER, PLATEWASHER, PLATE
-
404B4-84334-00-00 NUT, ADJUSTINGNUT, ADJUSTING
-
4190464-12036-00 CLAMPCLAMP
-
4290465-13152-00 BANDBAND
-
435PX-82566-51-00 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
443P6-82388-00-00 PLATEPLATE
-
453P6-82176-00-00 DAMPERDAMPER
-
4690157-05008-00 SCREW, PAN HEADSCREW, PAN HEAD
-
4790465-10098-00 CLAMPCLAMP
-
483P6-8254B-00-00 TERMINAL COMP.TERMINAL COMP.
-
495RU-85700-00-00 THERMISTOR ASSYTHERMISTOR ASSY
-
5090464-24001-00 CLAMPCLAMP
-
5190465-10098-00 BANDBAND
-
522D2-85590-00-00 CONTROL UNIT ASSYCONTROL UNIT ASSY
-
532D2-85542-00-00 BRACKETBRACKET
-
5497702-30510-00 SCREW, TAPPINGSCREW, TAPPING
-
555PW-2411J-01-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
562D2-85888-10-00 SENSOR ANGLESENSOR ANGLE
-
5790159-05041-00 SCREW WITH WASHERSCREW WITH WASHER
-
582D2-82583-00-00 BANDBAND
-
592D2-82119-10-00 COVER, LEAD WIRECOVER, LEAD WIRE
-
605PS-83371-00-00 HORNHORN
-
613P6-83371-00-00 HORNHORN
-
6292012-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
633GM-83350-01-00 FLASHER RELAY ASSYFLASHER RELAY ASSY
-
643Y6-85130-02-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
6595602-05100-00 NUT, UNUT, U
-
6690201-05043-00 WASHER, PLATEWASHER, PLATE
-
6711H-85110-01-00 REFLECTOR ASSYREFLECTOR ASSY
-
6895702-05500-00 NUT, FLANGE (SILVER)NUT, FLANGE (SILVER)
-
693P6-85112-10-00 BRACKET, REFLECTOR 1BRACKET, REFLECTOR 1
-
703P6-85122-00-00 BRACKET, REFLECTOR 2BRACKET, REFLECTOR 2
-
71449-85131-02-00 REFLECTOR, REAR 1REFLECTOR, REAR 1
-
725JW-84751-00-00 BRACKET, LICENSEBRACKET, LICENSE
-
7390201-06076-00 WASHER, PLATEWASHER, PLATE
-
7495602-06100-00 NUT, UNUT, U
-
7590201-05036-00 WASHER, PLATEWASHER, PLATE
