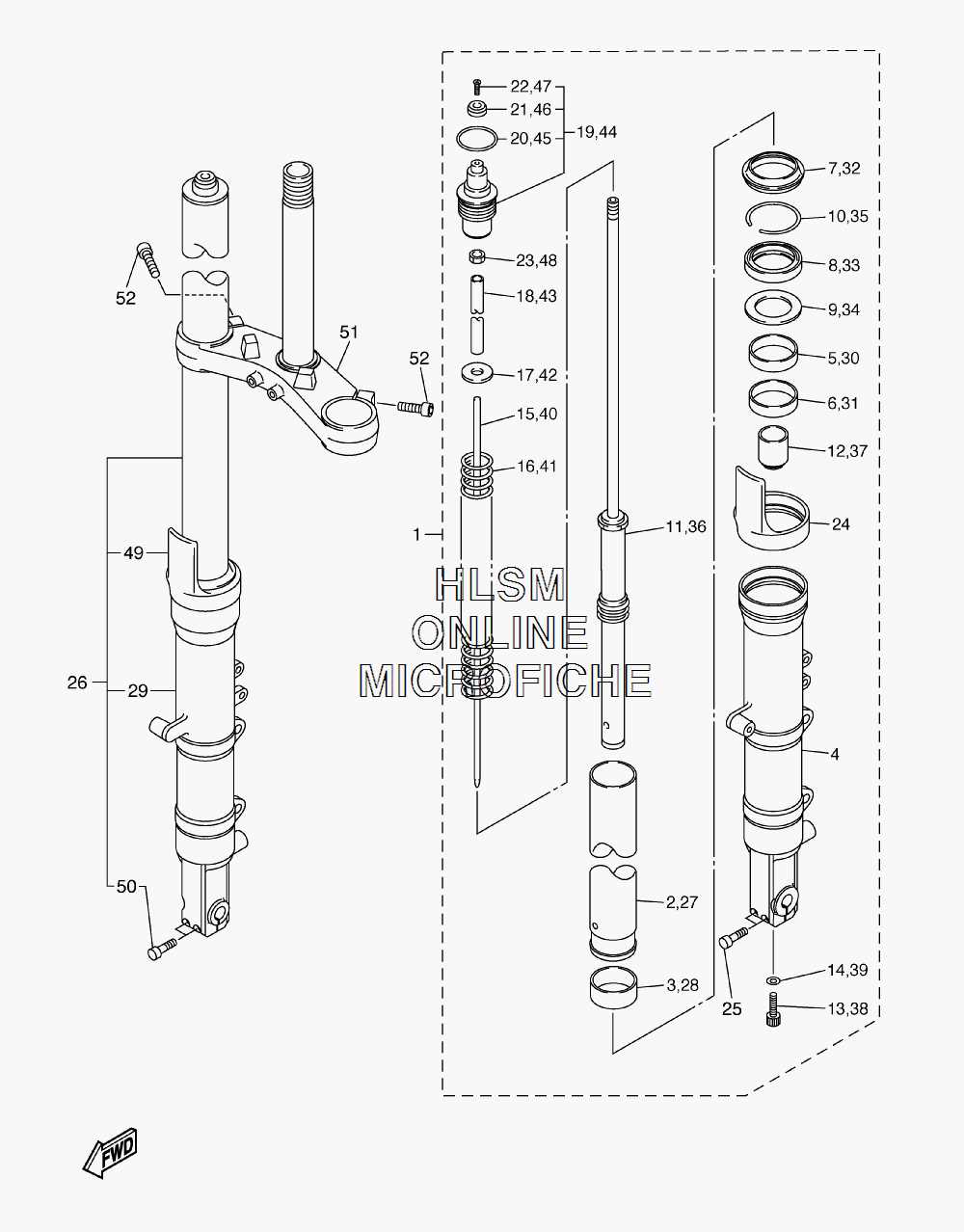

SUSPENSION - FRONT FORK для Yamaha FJR1300AE - 2008 года выпуска
-
№АртикулНазвание
-
13P6-23102-01-00 FRONT FORK ASSY (L.H)FRONT FORK ASSY (L.H)
-
23P6-23110-00-00 ...INNER TUBE COMP. 1...INNER TUBE COMP. 1
-
34SV-23135-10-00 ...METAL, SLIDE 2...METAL, SLIDE 2
-
43P6-23106-01-00 ...OUTER TUBE COMP. (L.H)...OUTER TUBE COMP. (L.H)
-
54SV-23125-10-00 ...METAL, SLIDE 1...METAL, SLIDE 1
-
63P6-23135-00-00 ...METAL, SLIDE 2...METAL, SLIDE 2
-
74SV-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
84SV-23145-01-00 ...OIL SEAL...OIL SEAL
-
94SV-23115-00-00 ...GUIDE, COVER UPPER...GUIDE, COVER UPPER
-
104SV-23156-00-00 ...CLIP, OIL SEAL...CLIP, OIL SEAL
-
113P6-23170-00-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
125LV-23173-00-00 ...SPINDLE, TAPER...SPINDLE, TAPER
-
1390110-10N52-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
1490430-10171-00 ...GASKET...GASKET
-
155JW-2318Y-00-00 ...PLUNGER...PLUNGER
-
163P6-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
1790201-10321-00 ...WASHER, PLATE...WASHER, PLATE
-
185JW-23118-00-00 ...SPACER...SPACER
-
195JW-23111-01-00 ...BOLT, CAP...BOLT, CAP
-
2093210-40N50-00 ...O-RING...O-RING
-
215JW-2319W-00-00 ...CAP...CAP
-
2290142-03N01-00 ...SCREW, COUNTERSUNK...SCREW, COUNTERSUNK
-
2395302-10600-00 ...NUT...NUT
-
244SV-2331G-00-00 ...COVER...COVER
-
2591314-08045-00 ...BOLT (36X)...BOLT (36X)
-
263P6-23103-01-00 FRONT FORK ASSY (R.H)FRONT FORK ASSY (R.H)
-
273P6-23110-00-00 ...INNER TUBE COMP. 1...INNER TUBE COMP. 1
-
284SV-23135-10-00 ...METAL, SLIDE 2...METAL, SLIDE 2
-
293P6-23107-01-00 ...OUTER TUBE COMP. (R.H)...OUTER TUBE COMP. (R.H)
-
304SV-23125-10-00 ...METAL, SLIDE 1...METAL, SLIDE 1
-
313P6-23135-00-00 ...METAL, SLIDE 2...METAL, SLIDE 2
-
324SV-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
334SV-23145-01-00 ...OIL SEAL...OIL SEAL
-
344SV-23115-00-00 ...GUIDE, COVER UPPER...GUIDE, COVER UPPER
-
354SV-23156-00-00 ...CLIP, OIL SEAL...CLIP, OIL SEAL
-
363P6-23170-00-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
375LV-23173-00-00 ...SPINDLE, TAPER...SPINDLE, TAPER
-
3890110-10N52-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
3990430-10171-00 ...GASKET...GASKET
-
405JW-2318Y-00-00 ...PLUNGER...PLUNGER
-
413P6-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
4290201-10321-00 ...WASHER, PLATE...WASHER, PLATE
-
435JW-23118-00-00 ...SPACER...SPACER
-
445JW-23111-01-00 ...BOLT, CAP...BOLT, CAP
-
4593210-40N50-00 ...O-RING...O-RING
-
465JW-2319W-00-00 ...CAP...CAP
-
4790142-03N01-00 ...SCREW, COUNTERSUNK...SCREW, COUNTERSUNK
-
4895302-10600-00 ...NUT...NUT
-
494SV-2331G-00-00 ...COVER...COVER
-
5091314-08045-00 ...BOLT (36X)...BOLT (36X)
-
513P6-23340-00-00 UNDER BRACKET COMP.UNDER BRACKET COMP.
-
5291312-08025-00 BOLTBOLT
