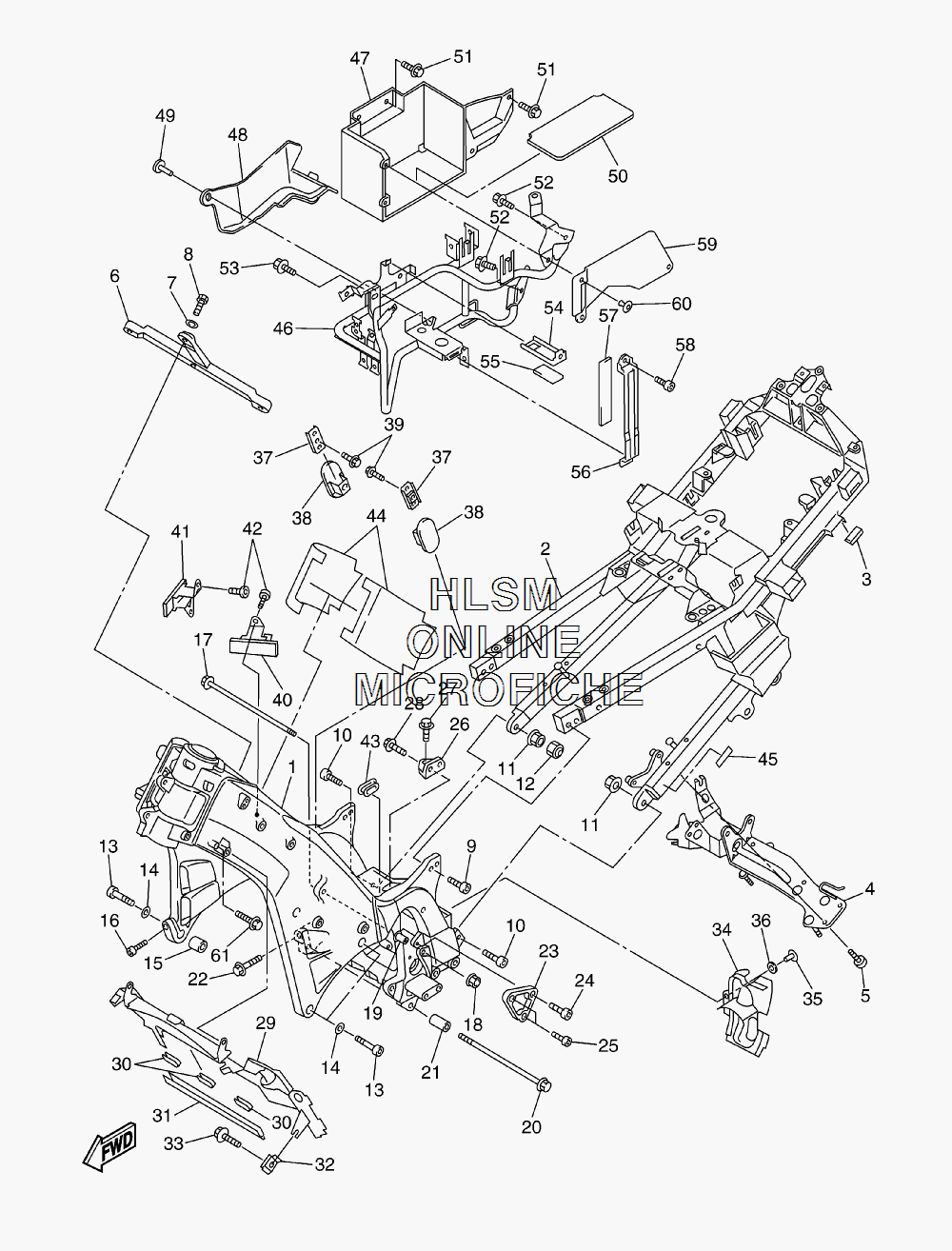

FRAME для Yamaha FJR1300AE - 2008 года выпуска
-
№АртикулНазвание
-
13P6-21110-00-00 FRAME COMP.FRAME COMP.
-
22D2-21190-20-00 REAR FRAME COMP.REAR FRAME COMP.
-
33P6-21652-00-00 PROTECTORPROTECTOR
-
43P6-2115A-10-00 MEMBER 1MEMBER 1
-
590149-06022-00 SCREWSCREW
-
63P6-21119-00-00 CROSS-TUBECROSS-TUBE
-
790201-100L3-00 WASHER, PLATEWASHER, PLATE
-
895812-10030-00 BOLT, FLANGEBOLT, FLANGE
-
990110-08076-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1091314-10035-00 BOLTBOLT
-
1195602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
125YU-2143A-00-00 CAPCAP
-
1391314-12055-00 BOLTBOLT
-
1492902-12600-00 WASHER, PLATEWASHER, PLATE
-
1590387-1312P-00 COLLARCOLLAR
-
1691314-08030-00 BOLT (3BM)BOLT (3BM)
-
1790105-10416-00 BOLT, FLANGEBOLT, FLANGE
-
1890179-10696-00 NUTNUT
-
194C8-21495-00-00 BOLT, ENGINE ADJUSTINGBOLT, ENGINE ADJUSTING
-
2090105-10730-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
2190560-10364-00 SPACER (3LN)SPACER (3LN)
-
2295022-08035-00 BOLT, FLANGEBOLT, FLANGE
-
233P6-21315-00-00 STAY, ENGINE 2STAY, ENGINE 2
-
2491314-10020-00 BOLT, SOCKET HEADBOLT, SOCKET HEAD
-
2591314-08016-00 BOLT, SOCKETBOLT, SOCKET
-
265JW-21316-00-00 STAY, ENGINE 3STAY, ENGINE 3
-
2790101-10M05-00 BOLT (6TC)BOLT (6TC)
-
2890105-08307-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
293P6-2137Y-00-00 GUIDE, AIRGUIDE, AIR
-
303P6-21269-00-00 SEALSEAL
-
313P6-21469-00-00 SEAL, AIRSEAL, AIR
-
3290183-06053-00 NUT, SPRING (4ES)NUT, SPRING (4ES)
-
3390119-06172-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
342D2-2147J-00-00 COVER, SHAFT 1COVER, SHAFT 1
-
3590269-07008-00 RIVETRIVET
-
3690202-06058-00 WASHER, PLATEWASHER, PLATE
-
375JW-2118U-00-00 BRACKET 3BRACKET 3
-
385JW-2113N-00-00 BRACKET, INNER 1BRACKET, INNER 1
-
3995022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
405JW-2113R-00-00 BRACKET, INNER 2BRACKET, INNER 2
-
415JW-2113R-10-00 BRACKET, INNER 2BRACKET, INNER 2
-
4290149-06304-00 BOLT, BUTTONBOLT, BUTTON
-
435JW-2143A-00-00 CAPCAP
-
445JW-21852-00-00 DAMPERDAMPER
-
455JW-2151A-02-00 LABEL 1LABEL 1
-
463P6-28321-00-00 STAY 1STAY 1
-
473P6-2177G-00-00 BOX, BATTERYBOX, BATTERY
-
483P6-2137K-00-00 GUIDE, AIR 3GUIDE, AIR 3
-
4990269-05074-00 RIVET (4KM)RIVET (4KM)
-
505VX-82122-00-00 SEAT, BATTERYSEAT, BATTERY
-
5190119-06209-00 BOLT WITH WASHERBOLT WITH WASHER
-
5295022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
5395822-06014-00 BOLT, FLANGEBOLT, FLANGE
-
545JW-28357-00-00 STAY 2STAY 2
-
555JW-28425-00-00 DAMPER 3DAMPER 3
-
565JW-28358-00-00 STAY 3STAY 3
-
575JW-28435-00-00 DAMPER 4DAMPER 4
-
5891312-06012-00 BOLT (4MY)BOLT (4MY)
-
595JW-2172W-00-00 COVERCOVER
-
6090269-06001-00 RIVETRIVET
-
6195022-06010-00 BOLT, FLANGEBOLT, FLANGE
