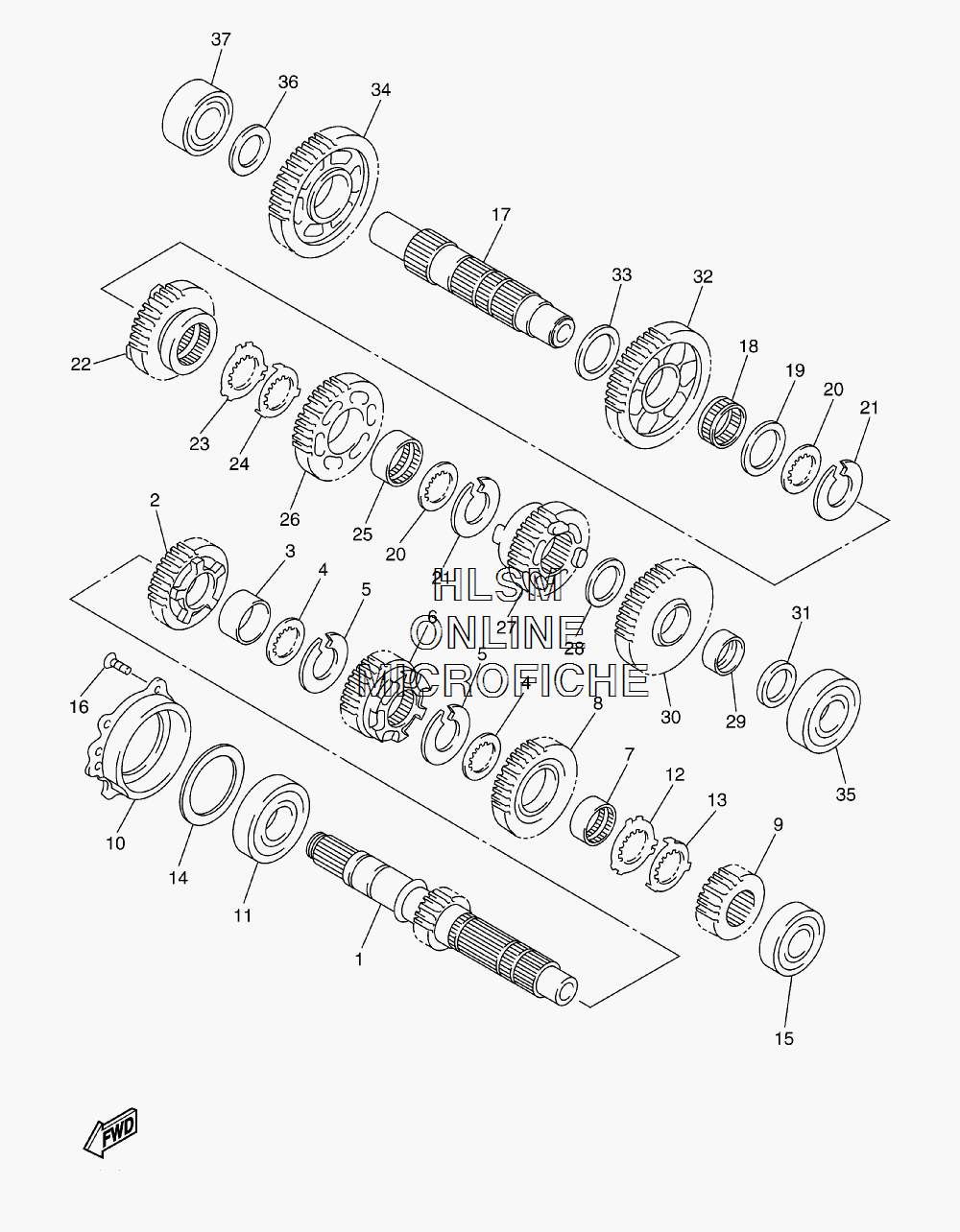

TRANSMISSION для Yamaha FJR1300AE - 2008 года выпуска
-
№АртикулНазвание
-
15JW-17411-00-00 AXLE, MAIN (17T)AXLE, MAIN (17T)
-
23P6-17141-00-00 GEAR, 4TH PINION (26T)GEAR, 4TH PINION (26T)
-
390387-32001-00 COLLARCOLLAR
-
490209-28331-00 WASHERWASHER
-
593440-31172-00 CIRCLIPCIRCLIP
-
63P6-17131-00-00 GEAR, 3RD PINION (23T)GEAR, 3RD PINION (23T)
-
790387-2802W-00 COLLAR (3VD)COLLAR (3VD)
-
85JW-17151-00-00 GEAR, 5TH PINION (28T)GEAR, 5TH PINION (28T)
-
95JW-17121-01-00 GEAR, 2ND PINION (22T)GEAR, 2ND PINION (22T)
-
103P6-15163-00-00 HOUSING, BEARING 1HOUSING, BEARING 1
-
1193306-37810-00 BEARINGBEARING
-
1290209-29329-00 WASHER (3VD)WASHER (3VD)
-
1390209-28330-00 WASHER (3VD)WASHER (3VD)
-
1490201-51013-00 WASHER, PLATEWASHER, PLATE
-
1593306-37209-00 BEARINGBEARING
-
1690149-06086-00 SCREWSCREW
-
175JW-17402-00-00 DRIVE AXLE ASSYDRIVE AXLE ASSY
-
1893310-33306-00 BEARINGBEARING
-
1990201-33008-00 WASHER, PLATEWASHER, PLATE
-
2090209-30344-00 WASHERWASHER
-
2193440-32063-00 CIRCLIP, OUTERCIRCLIP, OUTER
-
225JW-17241-00-00 GEAR, 4TH WHEEL (28T)GEAR, 4TH WHEEL (28T)
-
2390209-30345-00 WASHERWASHER
-
2490209-30343-00 WASHERWASHER
-
2590387-3310V-00 COLLARCOLLAR
-
265JW-17231-00-00 GEAR, 3RD WHEEL (31T)GEAR, 3RD WHEEL (31T)
-
275JW-17251-00-00 GEAR, 5TH WHEEL (26T)GEAR, 5TH WHEEL (26T)
-
2890201-286K9-00 WASHER, PLATE (T1.0)WASHER, PLATE (T1.0)
-
2990387-281T8-00 COLLARCOLLAR
-
305JW-17221-00-00 GEAR, 2ND WHEEL (39T)GEAR, 2ND WHEEL (39T)
-
3190201-25013-00 WASHER, PLATEWASHER, PLATE
-
325JW-17211-00-00 GEAR,1ST WHEEL (43T)GEAR,1ST WHEEL (43T)
-
3390201-33013-00 WASHER, PLATEWASHER, PLATE
-
343P6-17582-00-00 GEAR, MIDDLE DRIVE (37T)GEAR, MIDDLE DRIVE (37T)
-
3593306-30557-00 BEARINGBEARING
-
3690201-25008-00 WASHER, PLATEWASHER, PLATE
-
3793304-20508-00 BEARINGBEARING
