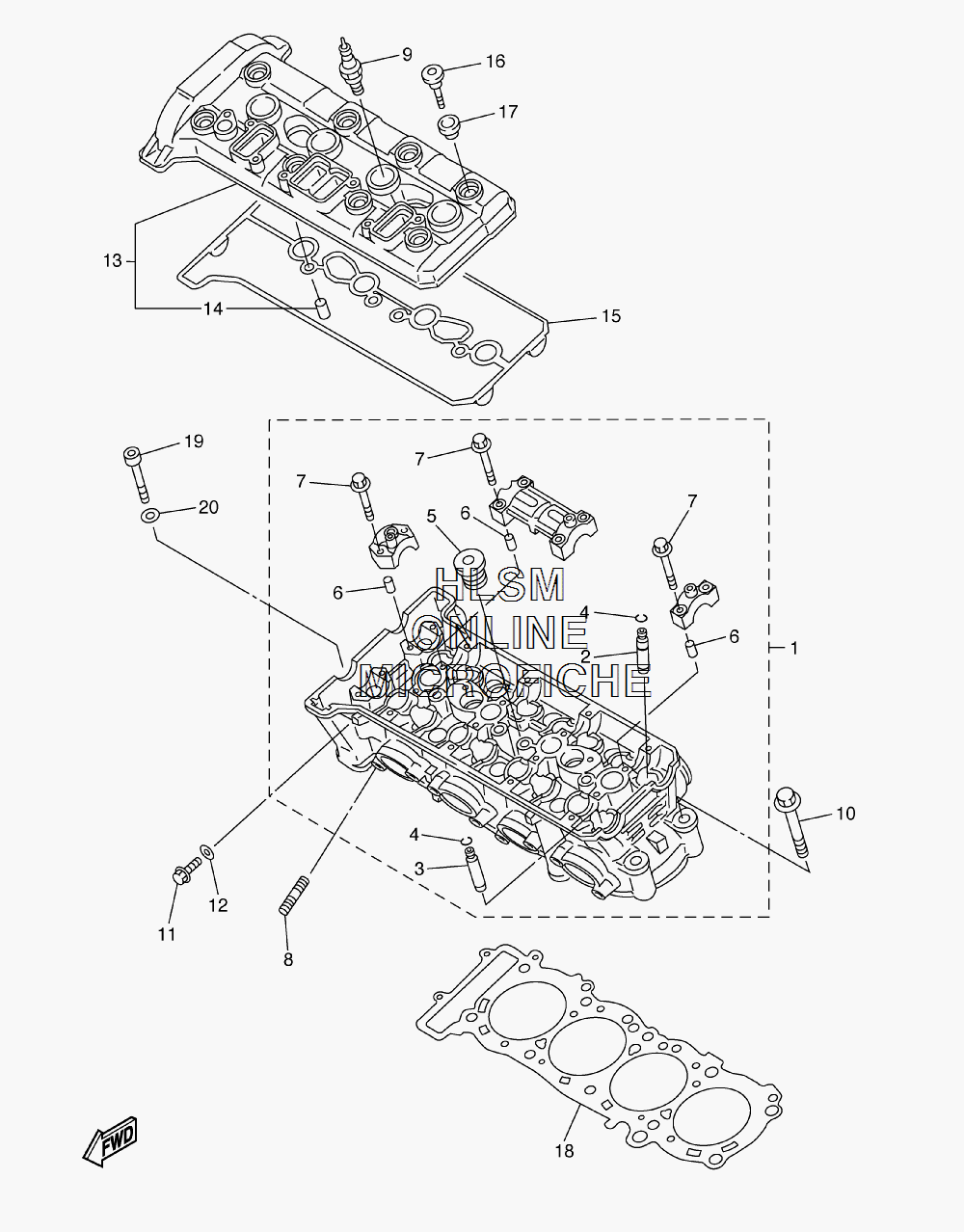

CYLINDER для Yamaha FJR1300AE - 2008 года выпуска
-
№АртикулНазвание
-
15JW-11102-10-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
25JW-11133-10-00 ...GUIDE, INTAKE VALVE 1...GUIDE, INTAKE VALVE 1
-
33P6-11134-10-00 ...GUIDE, VALVE 2...GUIDE, VALVE 2
-
493440-09141-00 ...CIRCLIP, OUTER...CIRCLIP, OUTER
-
590340-27001-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
691808-16023-00 ...PIN, DOWEL...PIN, DOWEL
-
790105-06026-00 ...BOLT, WASHER BASED...BOLT, WASHER BASED
-
895612-08620-00 BOLT, STUDBOLT, STUD
-
9NGK-CR8E0-00-00 PLUG, SPARK (NGK CR8E)PLUG, SPARK (NGK CR8E)
-
1090119-10004-00 BOLT WITH WASHERBOLT WITH WASHER
-
1195022-08012-00 BOLT, FLANGEBOLT, FLANGE
-
1290430-08119-00 GASKETGASKET
-
133P6-11190-00-00 COVER, CYLINDER HEAD 1COVER, CYLINDER HEAD 1
-
1491810-20001-00 ...PIN, DOWEL...PIN, DOWEL
-
155JW-11193-00-00 GASKET, HEAD COVER 1GASKET, HEAD COVER 1
-
1690109-066F0-00 BOLTBOLT
-
175VY-1111G-00-00 RUBBER, MOUNT 1RUBBER, MOUNT 1
-
185JW-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
1991312-06065-00 BOLTBOLT
-
2090201-06034-00 WASHER, PLATEWASHER, PLATE
