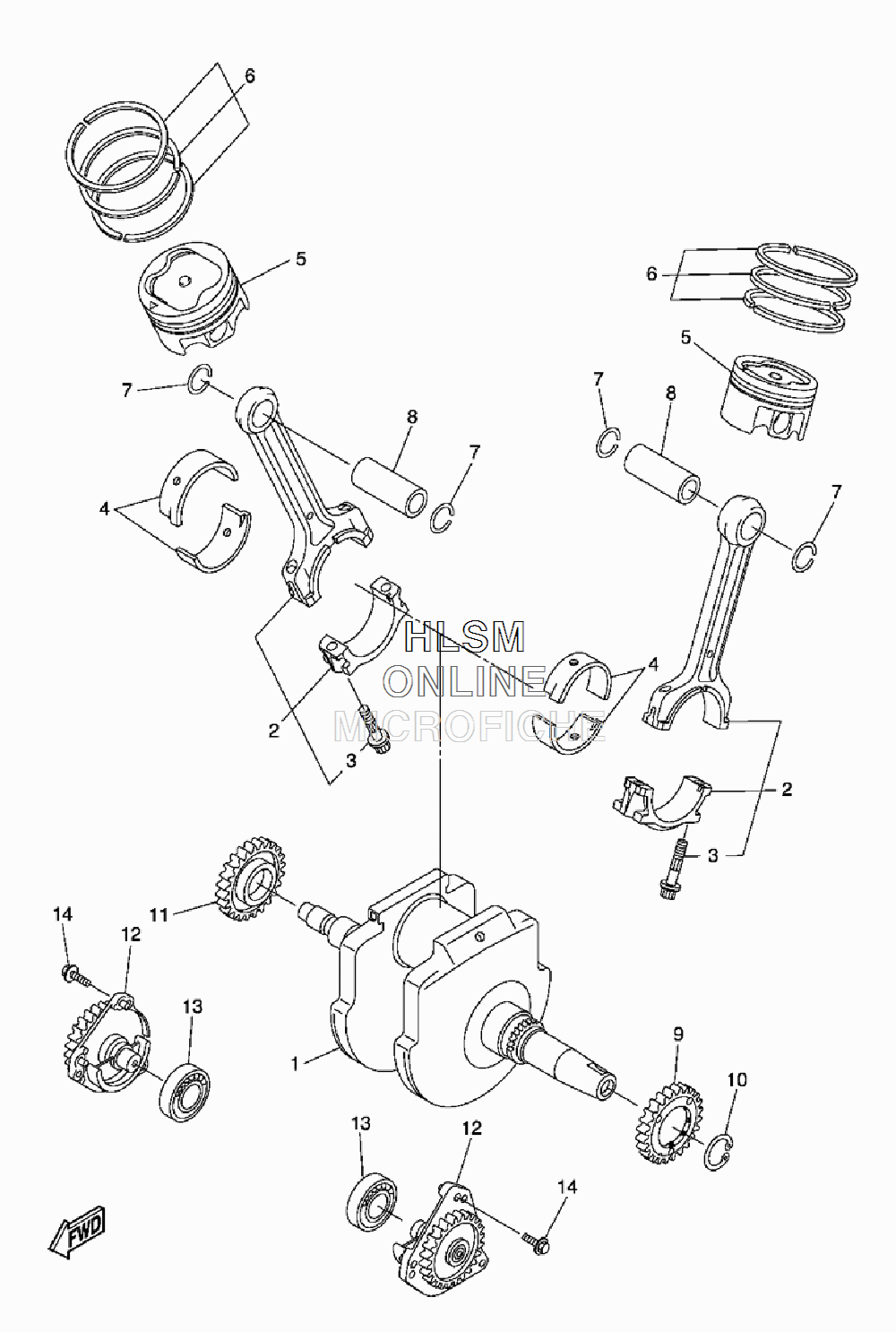

CRANKSHAFT - PISTON для Yamaha V STAR 1300 TOURER - 2009 года выпуска
-
№АртикулНазвание
-
13D8-11400-00-00 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
23D8-11650-00-00 CONNECTING ROD ASSYCONNECTING ROD ASSY
-
35YU-11654-00-00 BOLT, CONNECTING RODBOLT, CONNECTING ROD
-
45YU-11656-00-00 PLANE BEARING, CONNECTING ROD (BLUE)PLANE BEARING, CONNECTING ROD (BLUE)
-
45YU-11656-10-00 PLANE BEARING, CONNECTING ROD (BLACK)PLANE BEARING, CONNECTING ROD (BLACK)
-
45YU-11656-20-00 PLANE BEARING, CONNECTING ROD (BROWN)PLANE BEARING, CONNECTING ROD (BROWN)
-
45YU-11656-30-00 PLANE BEARING, CONNECTING ROD (GREEN)PLANE BEARING, CONNECTING ROD (GREEN)
-
45YU-11656-40-00 PLANE BEARING, CONNECTING ROD (YELLOW)PLANE BEARING, CONNECTING ROD (YELLOW)
-
53D8-11631-00-00 PISTON (STD)PISTON (STD)
-
61D7-11610-00-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
793450-24154-00 CIRCLIPCIRCLIP
-
85VK-11633-00-00 PIN, PISTONPIN, PISTON
-
93D8-11530-00-00 BALANCER WEIGHT GEAR COMP.BALANCER WEIGHT GEAR COMP.
-
1099009-40400-00 CIRCLIPCIRCLIP
-
113D8-11543-00-00 GEAR, 1GEAR, 1
-
123D8-11500-00-00 BALANCER ASSYBALANCER ASSY
-
1393306-20458-00 BEARINGBEARING
-
1490109-06015-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
