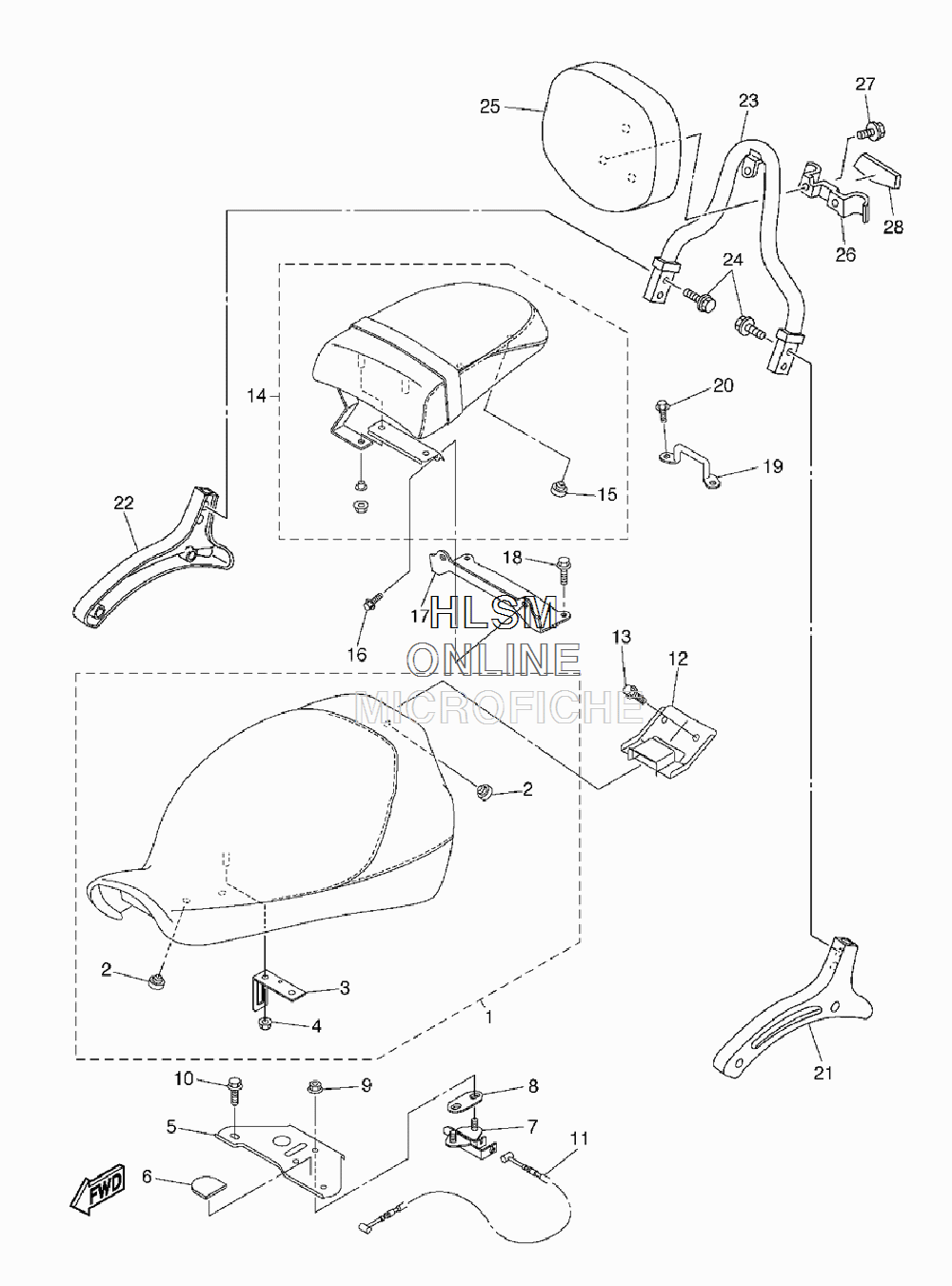

SEAT для Yamaha V STAR 1300 TOURER - 2009 года выпуска
-
№АртикулНазвание
-
13D8-24710-00-00 SINGLE SEAT ASSYSINGLE SEAT ASSY
-
222W-24741-00-00 PAD, SEATPAD, SEAT
-
34NK-24728-00-00 BRACKET, SEATBRACKET, SEAT
-
495604-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
53D8-21341-00-00 BRACKET, SEAT 1BRACKET, SEAT 1
-
65PX-21735-00-00 SEAL 2SEAL 2
-
74BP-24780-00-00 SEAT LOCK ASSYSEAT LOCK ASSY
-
84BP-24792-00-00 PLATEPLATE
-
995780-06500-00 NUT, FLANGENUT, FLANGE
-
1095817-06014-00 BOLT, FLANGEBOLT, FLANGE
-
115PX-2478E-00-00 CABLE, SEAT LOCKCABLE, SEAT LOCK
-
123D8-2475N-00-00 BRACKETBRACKET
-
1392012-08012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
143D8-24750-00-00 TANDEM SEAT ASSYTANDEM SEAT ASSY
-
1522W-24741-00-00 PAD, SEATPAD, SEAT
-
1695022-08012-00 BOLT, FLANGEBOLT, FLANGE
-
171D7-2475H-00-00 BRACKET, SEAT LEVER 1BRACKET, SEAT LEVER 1
-
1895022-08012-00 BOLT, FLANGEBOLT, FLANGE
-
193D8-2475R-00-00 BRACKET 6BRACKET 6
-
2095022-08012-00 BOLT, FLANGEBOLT, FLANGE
-
215S6-2164A-00-00 GRIP 1GRIP 1
-
225S6-2164E-00-00 GRIP 2GRIP 2
-
235S6-2164F-00-00 STAY 1STAY 1
-
2495024-08012-00 BOLT, FLANGEBOLT, FLANGE
-
255GA-2840F-20-00 BACK REST ASSYBACK REST ASSY
-
265GA-2164G-00-00 STAY 2STAY 2
-
2795024-06010-00 BOLT, FLANGEBOLT, FLANGE
-
285GA-24786-01-00 EMBLEMEMBLEM
