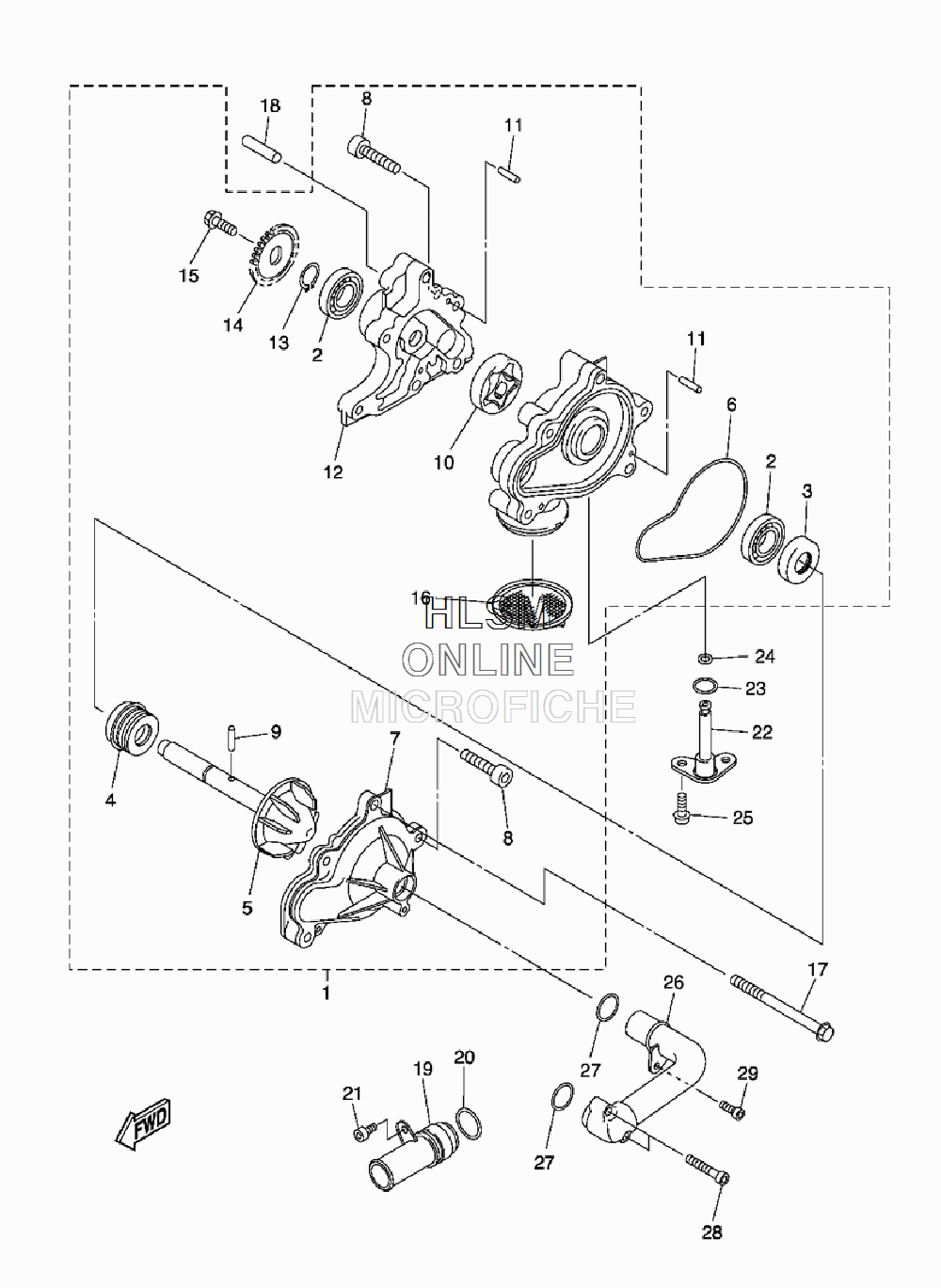

WATER PUMP для Yamaha V STAR 1300 TOURER - 2009 года выпуска
-
№АртикулНазвание
-
13D8-12420-02-00 WATER PUMP ASSYWATER PUMP ASSY
-
293306-00105-00 BEARINGBEARING
-
393102-12372-00 OIL SEALOIL SEAL
-
411H-12438-10-00 SEAL, MECHANICALSEAL, MECHANICAL
-
53D8-12450-01-00 IMPELLER SHAFT ASSYIMPELLER SHAFT ASSY
-
63D8-12439-00-00 O-RINGO-RING
-
73D8-12422-00-00 COVER, HOUSINGCOVER, HOUSING
-
891317-06025-00 BOLTBOLT
-
993603-17070-00 PIN, DOWELPIN, DOWEL
-
103D8-13310-00-00 ROTOR ASSY 1ROTOR ASSY 1
-
1193603-12007-00 PIN, DOWELPIN, DOWEL
-
123D8-13336-00-00 HOUSING, ROTORHOUSING, ROTOR
-
1399009-12400-00 CIRCLIPCIRCLIP
-
143D8-13355-00-00 SPROCKET, DRIVENSPROCKET, DRIVEN
-
1590105-06066-00 BOLT, FLANGEBOLT, FLANGE
-
163D8-13411-00-00 STRAINER, OILSTRAINER, OIL
-
1790110-08049-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1899530-08012-00 PIN, DOWELPIN, DOWEL
-
193D8-1248E-00-00 PIPE 9PIPE 9
-
2093210-27778-00 O-RINGO-RING
-
2191317-06012-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
223D8-12562-00-00 BODY, DRAIN COCKBODY, DRAIN COCK
-
2393210-15639-00 O-RINGO-RING
-
2493210-06667-00 O-RINGO-RING
-
2590110-06245-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
263D8-12564-00-00 PIPE, WATERPIPE, WATER
-
2793210-235A1-00 O-RINGO-RING
-
2890110-06208-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2991317-06016-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
