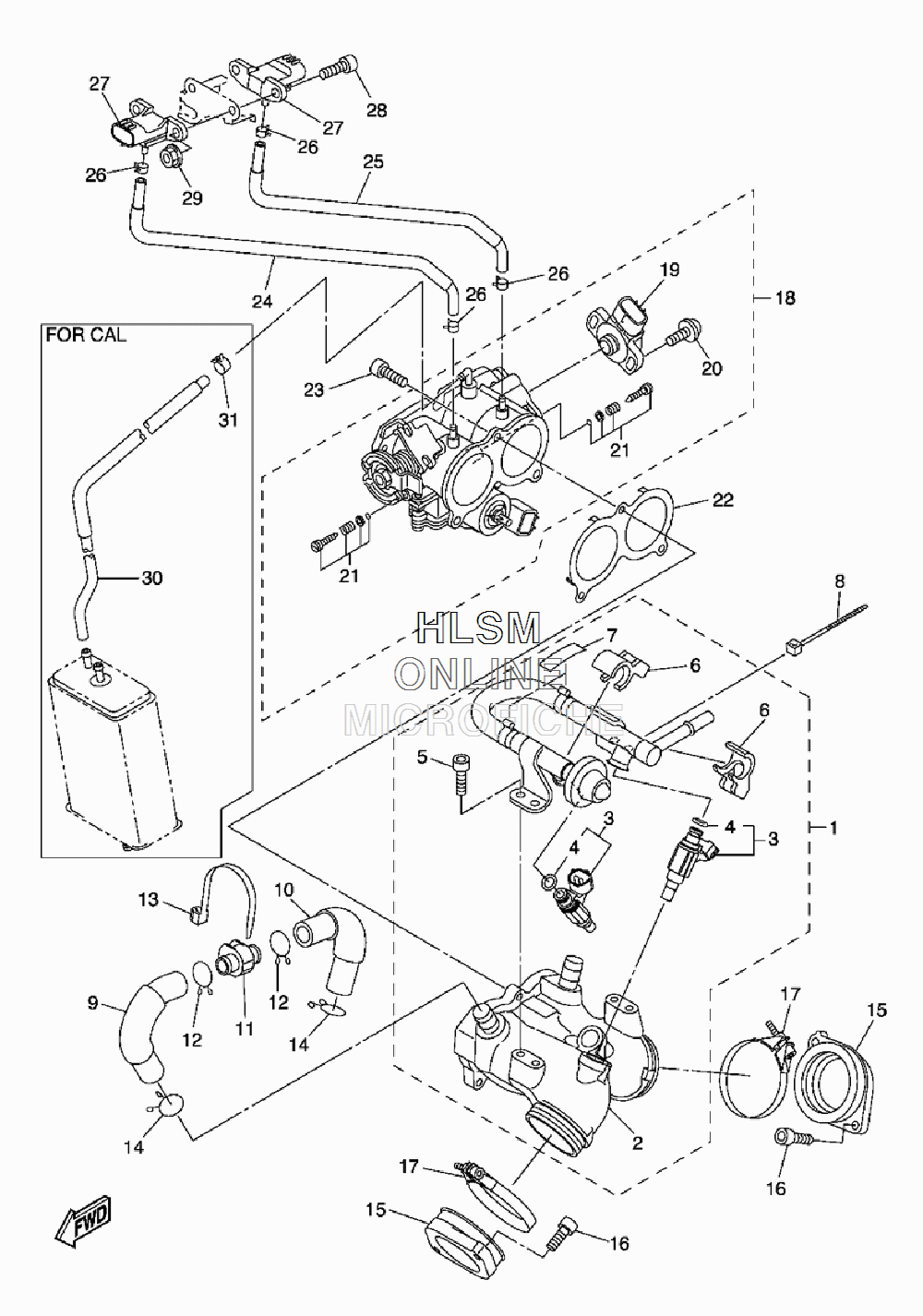

THROTTLE BODY ASSY. для Yamaha V STAR 1300 TOURER - 2009 года выпуска
-
№АртикулНазвание
-
13D8-13590-10-00 CARBURETOR JOINT ASSYCARBURETOR JOINT ASSY
-
23D8-13640-00-00 MANIFOLDMANIFOLD
-
33D8-13761-00-00 INJECTORINJECTOR
-
45FL-14147-00-00 O-RINGO-RING
-
591312-06014-00 BOLTBOLT
-
63D8-14261-00-00 HOLDERHOLDER
-
73D8-1442F-00-00 PROTECTORPROTECTOR
-
84KM-14137-00-00 CLIPCLIP
-
93D8-1441J-00-00 PIPE, SILENCERPIPE, SILENCER
-
103D8-1442J-00-00 PIPE, SILENCER 2PIPE, SILENCER 2
-
113D8-14862-00-00 PLUGPLUG
-
1290467-18196-00 CLIPCLIP
-
1390464-15195-00 CLAMPCLAMP
-
1490467-18196-00 CLIPCLIP
-
153D8-13586-00-00 JOINT, CARBURETOR 1JOINT, CARBURETOR 1
-
1691314-06020-00 BOLTBOLT
-
1790450-59008-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
183D8-13750-20-00 THROTTLE BODY ASSY (EXCEPT CALIF.)THROTTLE BODY ASSY (EXCEPT CALIF.)
-
183D8-13750-30-00 THROTTLE BODY ASSY (CALIF. ONLY)THROTTLE BODY ASSY (CALIF. ONLY)
-
198GL-85885-00-00 THROTTLE SENSOR ASSYTHROTTLE SENSOR ASSY
-
204KM-24453-00-00 SCREWSCREW
-
213D8-14104-00-00 AIR SCREW SETAIR SCREW SET
-
223D8-14467-00-00 SEALSEAL
-
2391314-06020-00 BOLTBOLT
-
243D8-13895-00-00 HOSE, AIRHOSE, AIR
-
253D8-13892-00-00 HOSE, AIR 2HOSE, AIR 2
-
2690467-07093-00 CLIP, SCISSORCLIP, SCISSOR
-
275PS-82380-00-00 SENSOR, PRESSURESENSOR, PRESSURE
-
2891314-06020-00 BOLTBOLT
-
2995780-06500-00 NUT, FLANGENUT, FLANGE
-
303D8-14148-10-00 PIPEPIPE
-
3190467-09120-00 CLIPCLIP
