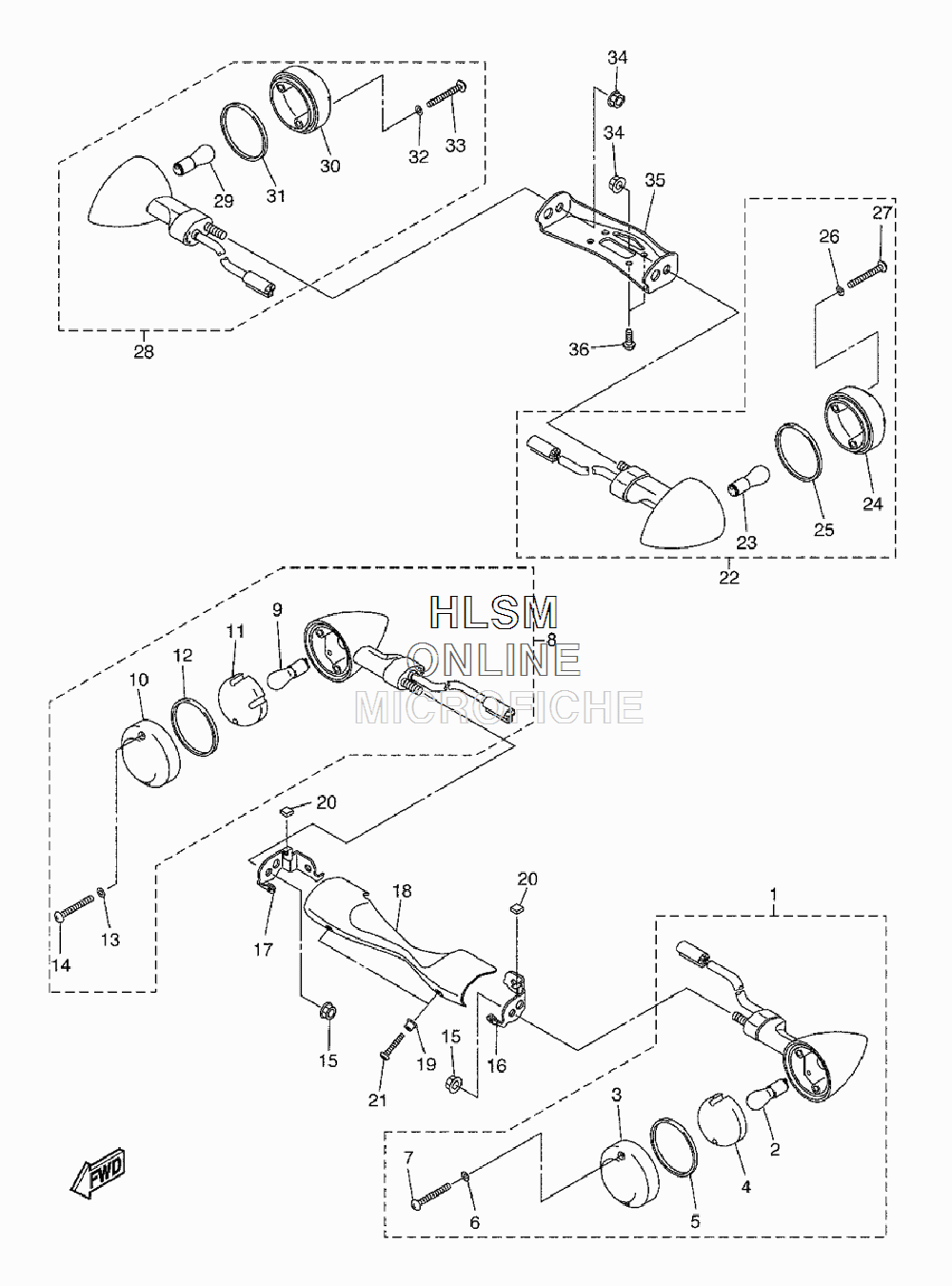

FLASHER LIGHT для Yamaha V STAR 1300 TOURER - 2009 года выпуска
-
№АртикулНазвание
-
13D8-83310-00-00 FRONT FLASHER LIGHT ASSY 1FRONT FLASHER LIGHT ASSY 1
-
21A2-84714-41-00 BULB (12V-21/5W)BULB (12V-21/5W)
-
33D8-83312-00-00 LENS, FLASHERLENS, FLASHER
-
43D8-8333L-00-00 LENS, INNER 1LENS, INNER 1
-
53D8-83313-00-00 GASKET, FLASHER LENSGASKET, FLASHER LENS
-
63D8-83348-00-00 WASHERWASHER
-
797780-40130-00 SCREW, PANHEADSCREW, PANHEAD
-
83D8-83320-00-00 FRONT FLASHER LIGHT ASSY 2FRONT FLASHER LIGHT ASSY 2
-
91A2-84714-41-00 BULB (12V-21/5W)BULB (12V-21/5W)
-
103D8-83312-00-00 LENS, FLASHERLENS, FLASHER
-
113D8-8333L-00-00 LENS, INNER 1LENS, INNER 1
-
123D8-83313-00-00 GASKET, FLASHER LENSGASKET, FLASHER LENS
-
133D8-83348-00-00 WASHERWASHER
-
1497780-40130-00 SCREW, PANHEADSCREW, PANHEAD
-
1595704-10500-00 NUT, WITH WASHERNUT, WITH WASHER
-
163D8-83318-10-00 STAY, FLASHER 1STAY, FLASHER 1
-
173D8-83328-00-00 STAY, FLASHER 2STAY, FLASHER 2
-
183D8-23122-00-00 COVER, OUTER 1COVER, OUTER 1
-
1990387-06163-00 COLLARCOLLAR
-
203MA-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
2190111-05024-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
223D8-83330-00-00 REAR FLASHER LIGHT ASSY 1REAR FLASHER LIGHT ASSY 1
-
233D8-83311-00-00 BULB, FLASHER (12V21W)BULB, FLASHER (12V21W)
-
243D8-83312-00-00 LENS, FLASHERLENS, FLASHER
-
253D8-83313-00-00 GASKET, FLASHER LENSGASKET, FLASHER LENS
-
263D8-83348-00-00 WASHERWASHER
-
2797780-40130-00 SCREW, PANHEADSCREW, PANHEAD
-
283D8-83340-00-00 REAR FLASHER LIGHT ASSY 2REAR FLASHER LIGHT ASSY 2
-
293D8-83311-00-00 BULB, FLASHER (12V21W)BULB, FLASHER (12V21W)
-
303D8-83312-00-00 LENS, FLASHERLENS, FLASHER
-
313D8-83313-00-00 GASKET, FLASHER LENSGASKET, FLASHER LENS
-
323D8-83348-00-00 WASHERWASHER
-
3397780-40130-00 SCREW, PANHEADSCREW, PANHEAD
-
3495704-10500-00 NUT, WITH WASHERNUT, WITH WASHER
-
353D8-83368-00-00 STAY, FLASHER 1STAY, FLASHER 1
-
3690111-06031-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
