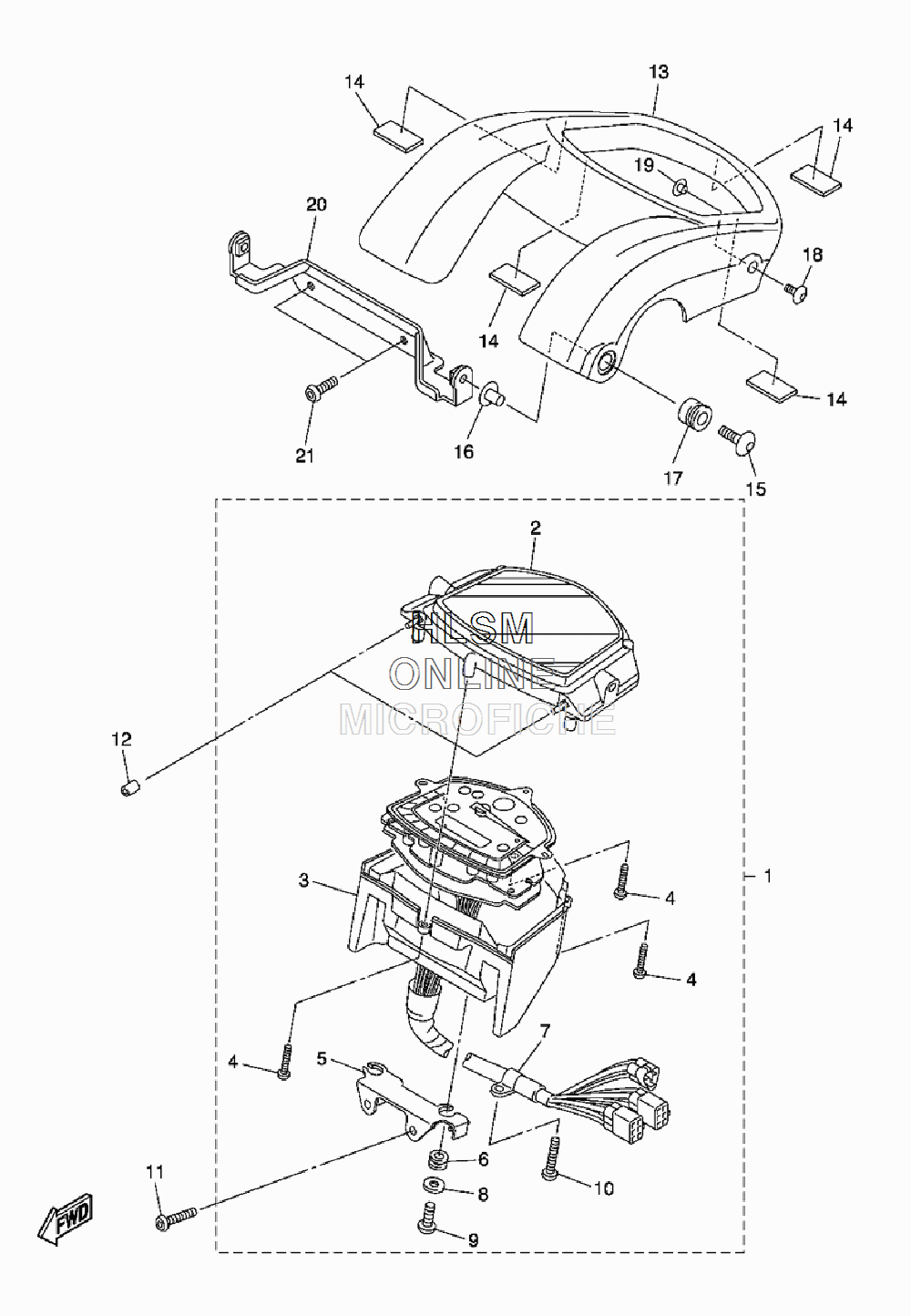

INSTRUMENT PANEL для Yamaha V STAR 1300 TOURER - 2009 года выпуска
-
№АртикулНазвание
-
13D8-83500-01-00 SPEEDOMETER ASSY (MPH)SPEEDOMETER ASSY (MPH)
-
23D8-8353E-00-00 CASE, METER UPPERCASE, METER UPPER
-
33D8-83572-00-00 CASE, SPEEDOMETER LOWERCASE, SPEEDOMETER LOWER
-
497707-30014-00 SCREW, TAPPINGSCREW, TAPPING
-
53D8-83519-00-00 BRACKET, METERBRACKET, METER
-
64XV-83513-00-00 DAMPERDAMPER
-
73D8-8357E-00-00 CLAMPCLAMP
-
890201-05033-00 WASHER, SPECIALWASHER, SPECIAL
-
997707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
1097707-40014-00 SCREW, TAPPINGSCREW, TAPPING
-
1192012-08035-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1290445-05004-00 HOSEHOSE
-
133D8-83559-00-00 COVER, METERCOVER, METER
-
143D8-83541-00-00 DAMPERDAMPER
-
1590110-06202-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1690387-06162-00 COLLARCOLLAR
-
1790480-13020-00 GROMMETGROMMET
-
1890110-05201-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1990387-05035-00 COLLARCOLLAR
-
203D8-8350E-00-00 BRACKETBRACKET
-
2190111-06062-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
