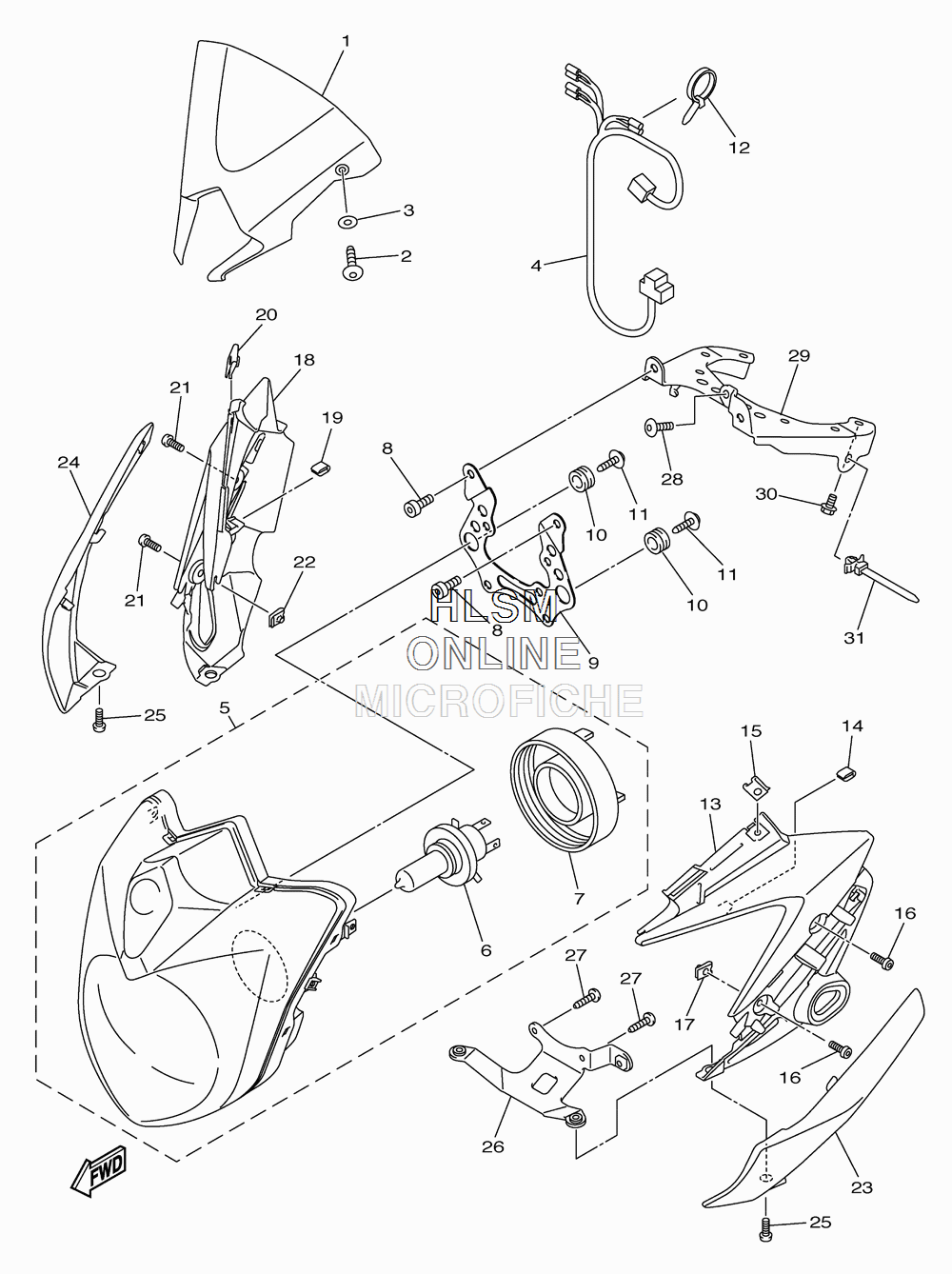

HEADLIGHT для Yamaha FZ8 - 2012 года выпуска
-
№АртикулНазвание
-
139P-83559-00-P3 COVER, METER (MAT BLACK 2)COVER, METER (MAT BLACK 2)
-
290167-05076-00 SCREW, TAPPINGSCREW, TAPPING
-
390202-05002-00 WASHER, PLATEWASHER, PLATE
-
439P-82509-10-00 WIRE, SUB LEADWIRE, SUB LEAD
-
539P-84300-11-00 HEADLIGHT ASSYHEADLIGHT ASSY
-
62F9-84314-00-00 ...BULB (12V-60/55W) (HALOGEN)...BULB (12V-60/55W) (HALOGEN)
-
75JW-84397-00-00 ...COVER, SOCKET...COVER, SOCKET
-
891312-06010-00 BOLTBOLT
-
920S-28396-00-00 PLATE 1PLATE 1
-
1090480-14004-00 GROMMETGROMMET
-
1190164-05001-00 SCREW, TAPPINGSCREW, TAPPING
-
1290465-10098-00 CLAMPCLAMP
-
1339P-23121-00-00 COVER, UPPER 1COVER, UPPER 1
-
1420S-28376-00-00 TRIMTRIM
-
1590183-05042-00 NUT, SPRINGNUT, SPRING
-
1690111-06127-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1790183-06069-00 NUT, SPRINGNUT, SPRING
-
1839P-23131-00-00 COVER, UPPER 2COVER, UPPER 2
-
1920S-28376-00-00 TRIMTRIM
-
2090183-05042-00 NUT, SPRINGNUT, SPRING
-
2190111-06127-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2290183-06069-00 NUT, SPRINGNUT, SPRING
-
2339P-23122-00-P1 COVER, OUTER 1 (MAT BLACK 2)COVER, OUTER 1 (MAT BLACK 2)
-
2439P-23132-00-P1 COVER, OUTER 2 (MAT BLACK 2)COVER, OUTER 2 (MAT BLACK 2)
-
2590111-06127-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2639P-8431R-00-00 STAY, SETTINGSTAY, SETTING
-
2797702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
2892012-05012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2939P-84119-00-00 STAY, HEADLIGHT 2STAY, HEADLIGHT 2
-
3095802-06012-00 BOLT, FLANGEBOLT, FLANGE
-
3190464-12089-00 CLAMPCLAMP
