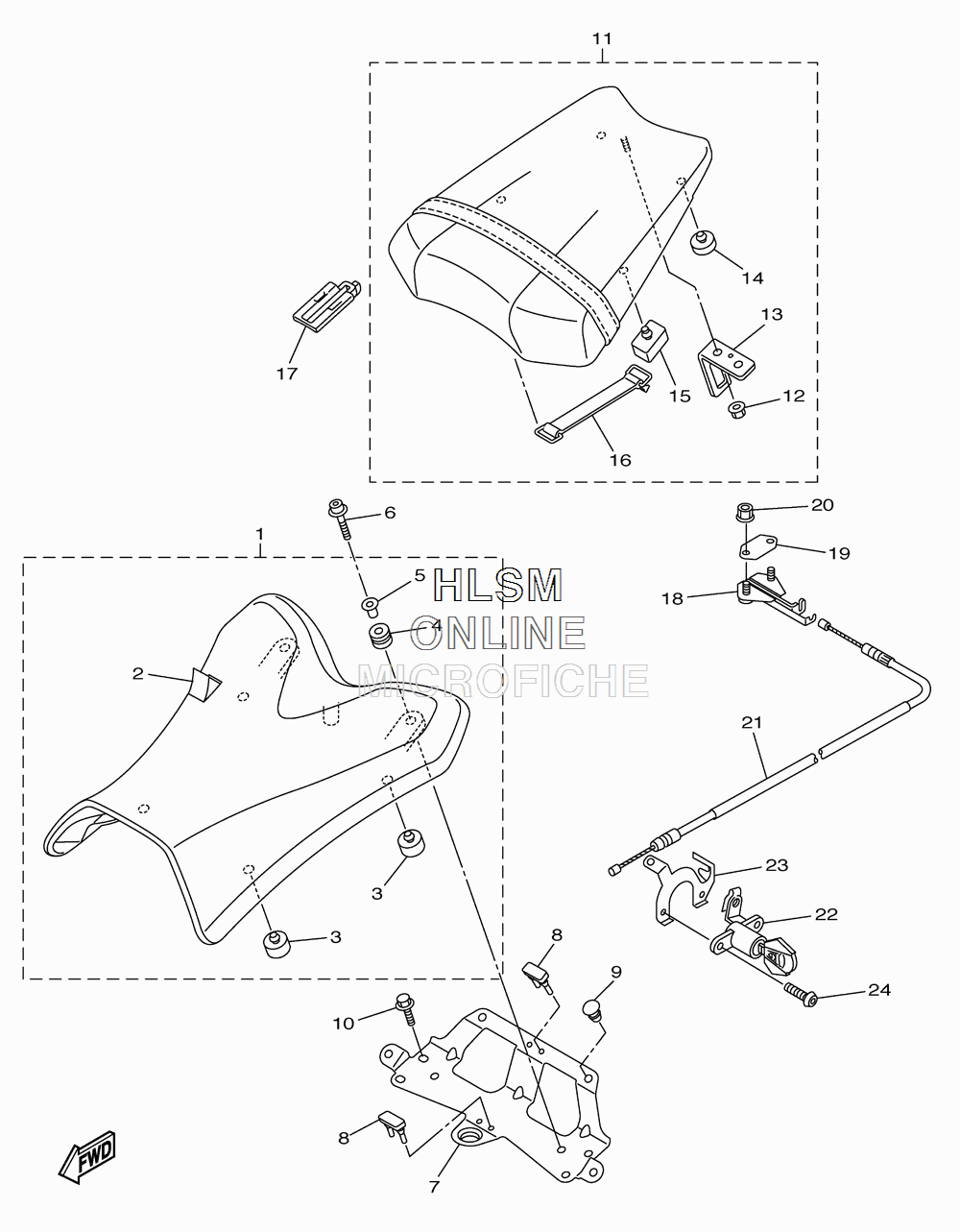

SEAT для Yamaha FZ8 - 2012 года выпуска
-
№АртикулНазвание
-
139P-24710-00-00 SINGLE SEAT ASSYSINGLE SEAT ASSY
-
239P-2470F-00-00 ...SEAT COVER COMP....SEAT COVER COMP.
-
3278-27114-00-00 ...STOPPER, MAIN STAND...STOPPER, MAIN STAND
-
490480-14604-00 ...GROMMET...GROMMET
-
590387-07391-00 ...COLLAR...COLLAR
-
690110-06232-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
739P-21349-00-00 BRACKET, SEATBRACKET, SEAT
-
8682-44532-00-00 STOPPER, UPPER MOUNTSTOPPER, UPPER MOUNT
-
990338-07043-00 PLUGPLUG
-
1095022-06010-00 BOLT, FLANGEBOLT, FLANGE
-
1139P-24750-00-00 TANDEM SEAT ASSYTANDEM SEAT ASSY
-
1295702-06500-00 ...NUT, FLANGE...NUT, FLANGE
-
134NK-24728-00-00 ...BRACKET, SEAT...BRACKET, SEAT
-
1422W-24741-00-00 ...PAD, SEAT...PAD, SEAT
-
1539P-24741-00-00 ...PAD, SEAT...PAD, SEAT
-
1618G-82131-00-00 ...BAND, BATTERY...BAND, BATTERY
-
1739P-24768-00-00 STOPPERSTOPPER
-
184BP-24780-00-00 SEAT LOCK ASSYSEAT LOCK ASSY
-
194BP-24792-00-00 PLATEPLATE
-
2095702-06500-00 NUT, FLANGENUT, FLANGE
-
212D1-2478E-00-00 CABLE, SEAT LOCKCABLE, SEAT LOCK
-
222TV-W2470-00-00 SEAT LOCK ASSYSEAT LOCK ASSY
-
234XV-2117K-00-00 STAY, LOCKSTAY, LOCK
-
2490149-06134-00 SCREWSCREW
