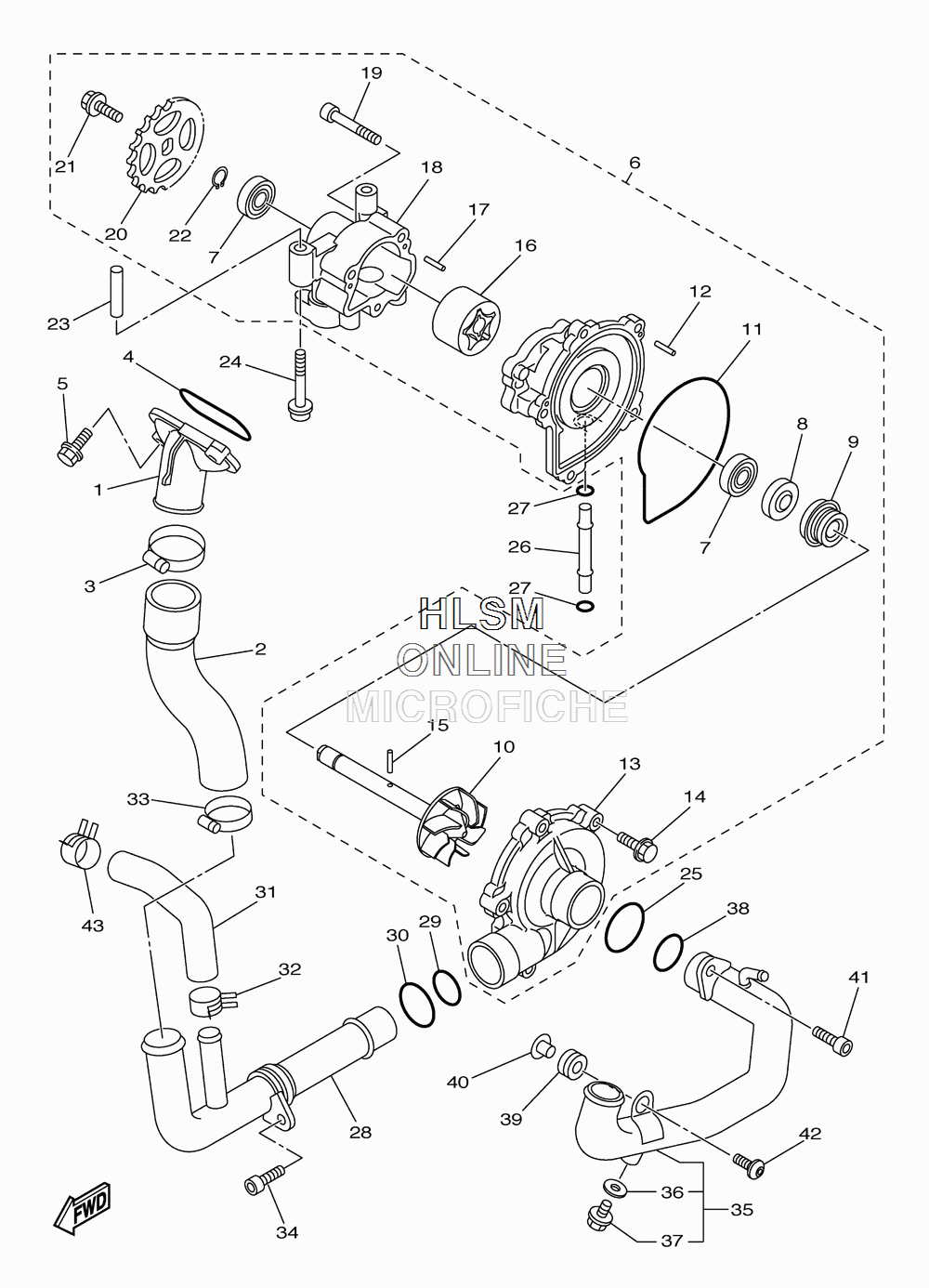

WATER PUMP для Yamaha FZ8 - 2012 года выпуска
-
№АртикулНазвание
-
114B-12469-10-00 JOINT 1JOINT 1
-
239P-12576-00-00 HOSE 1HOSE 1
-
390450-38040-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
493210-46044-00 O-RINGO-RING
-
595024-06025-00 BOLT, FLG.(SMALL HEAD)BOLT, FLG.(SMALL HEAD)
-
64C8-12420-20-00 WATER PUMP ASSYWATER PUMP ASSY
-
793306-00106-00 ...BEARING...BEARING
-
893102-12372-00 ...OIL SEAL...OIL SEAL
-
94C8-12438-00-00 ...SEAL, MECHANICAL...SEAL, MECHANICAL
-
104C8-12450-10-00 ...IMPELLER SHAFT ASSY...IMPELLER SHAFT ASSY
-
114XV-12439-00-00 ...O-RING...O-RING
-
1293603-12007-00 ...PIN, DOWEL...PIN, DOWEL
-
135VY-12422-00-00 ...COVER, HOUSING...COVER, HOUSING
-
1490105-06065-00 ...BOLT, FLANGE...BOLT, FLANGE
-
1593603-17070-00 ...PIN, DOWEL...PIN, DOWEL
-
165VY-13310-10-00 ...ROTOR ASSY 1...ROTOR ASSY 1
-
1793603-12007-00 ...PIN, DOWEL...PIN, DOWEL
-
185VY-13336-00-00 ...HOUSING, ROTOR...HOUSING, ROTOR
-
1991312-06040-00 ...BOLT...BOLT
-
205VY-13355-00-00 ...SPROCKET, DRIVEN...SPROCKET, DRIVEN
-
2190105-06066-00 ...BOLT, FLANGE...BOLT, FLANGE
-
2299009-12400-00 ...CIRCLIP...CIRCLIP
-
2391808-30031-00 PIN, DOWELPIN, DOWEL
-
2490110-06167-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2593210-357A2-00 O-RINGO-RING
-
264XV-12485-00-00 PIPE 5PIPE 5
-
2793210-06667-00 O-RINGO-RING
-
2839P-12481-00-00 PIPE 1PIPE 1
-
2993210-235A1-00 O-RINGO-RING
-
3093210-27370-00 O-RINGO-RING
-
315VY-12588-00-00 HOSE 5HOSE 5
-
3290467-200A0-00 CLIPCLIP
-
3390450-32006-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
3490110-06161-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
352D1-12484-01-00 PIPE 4PIPE 4
-
3690430-06014-00 ...GASKET...GASKET
-
3790153-06002-00 ...SCREW, HEXAGON...SCREW, HEXAGON
-
3893210-235A1-00 O-RINGO-RING
-
3990480-12010-00 GROMMETGROMMET
-
4090387-06112-00 COLLARCOLLAR
-
4190110-06161-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
4290149-06022-00 SCREWSCREW
-
4390467-200A0-00 CLIPCLIP
