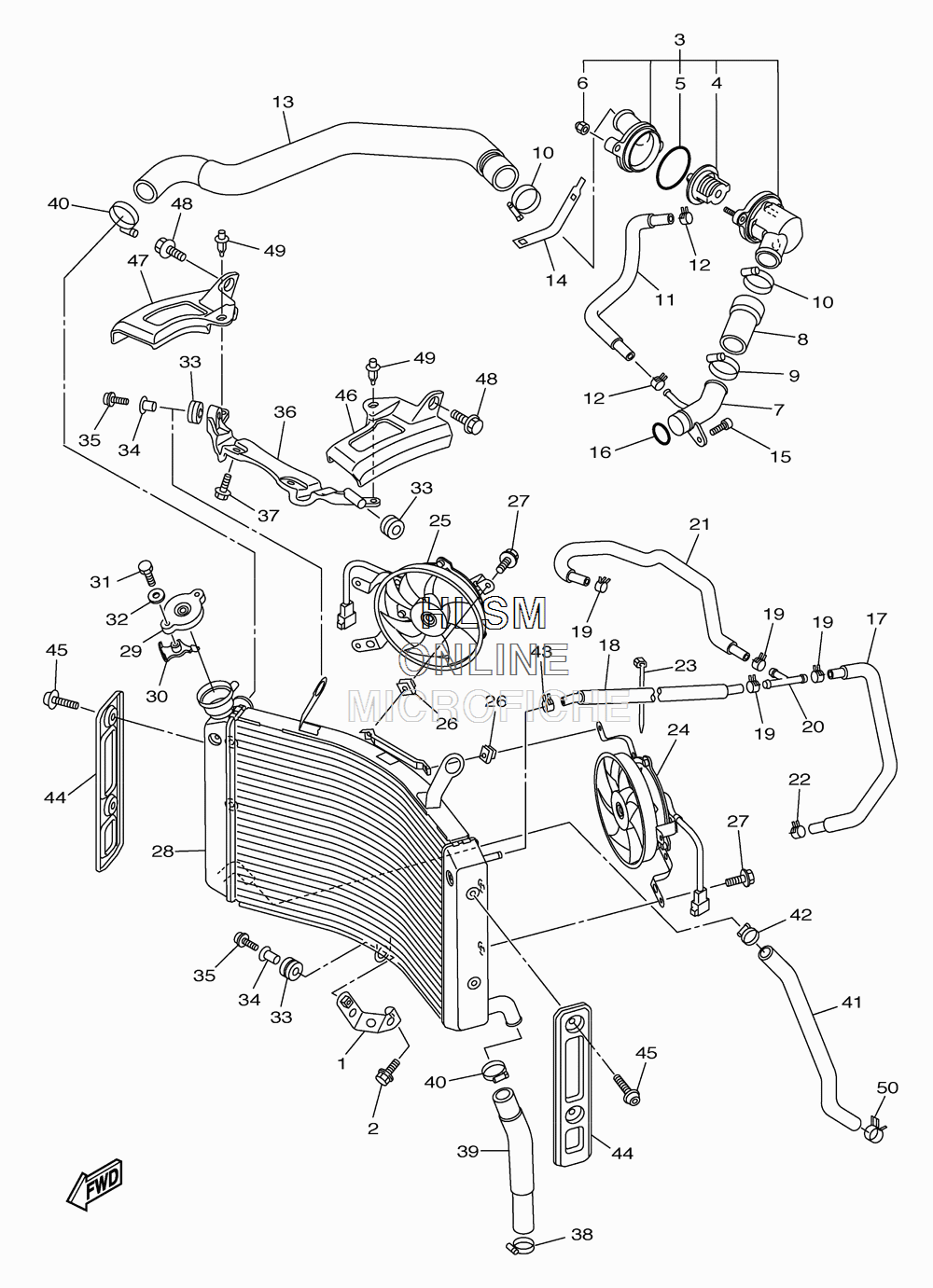

RADIATOR для Yamaha FZ8 - 2012 года выпуска
-
№АртикулНазвание
-
139P-12637-00-00 STAY 1STAY 1
-
295024-06012-00 BOLT, FLG.(SMALL HEAD)BOLT, FLG.(SMALL HEAD)
-
32D1-12410-00-00 THERMOSTAT ASSYTHERMOSTAT ASSY
-
45LP-12411-00-00 ...THERMOSTAT...THERMOSTAT
-
593210-49046-00 ...O-RING...O-RING
-
690176-06014-00 ...NUT, CROWN...NUT, CROWN
-
75VY-12485-10-00 PIPE 5PIPE 5
-
85VY-12579-00-00 HOSE 4HOSE 4
-
990450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
1090450-38040-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
1139P-1243F-00-00 HOSE, 3HOSE, 3
-
1290467-11090-00 CLIP, SCISSORCLIP, SCISSOR
-
1339P-12578-00-00 HOSE 3HOSE 3
-
145GV-1246A-00-00 COVER 1COVER 1
-
1590110-06161-00 BOLT (4MY)BOLT (4MY)
-
1693210-235A1-00 O-RINGO-RING
-
175VY-1243A-00-00 HOSE 1HOSE 1
-
182D1-1244G-00-00 HOSE, 4HOSE, 4
-
1990467-11090-00 CLIP,SCISSORCLIP,SCISSOR
-
2090413-07023-00 WAY 3WAY 3
-
2139P-1243E-00-00 HOSE 2HOSE 2
-
2290467-10039-00 CLIPCLIP
-
2390464-13073-00 CLAMPCLAMP
-
242D1-12405-01-00 BLOWER ASSYBLOWER ASSY
-
2539P-12405-10-00 BLOWER ASSYBLOWER ASSY
-
261AA-12535-00-00 PLATEPLATE
-
272D1-12675-00-00 BOLT, BLOWER HOLDINGBOLT, BLOWER HOLDING
-
282D1-12461-00-00 RADIATOR COMPRADIATOR COMP
-
294FL-12462-00-00 CAP, RADIATORCAP, RADIATOR
-
305FC-12437-00-00 STOPPERSTOPPER
-
3197007-05012-00 BOLTBOLT
-
3292907-05600-00 WASHER, PLATEWASHER, PLATE
-
3390480-15363-00 GROMMETGROMMET
-
3490387-07391-00 COLLARCOLLAR
-
3590110-06172-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3639P-12464-00-00 STAY, RADIATORSTAY, RADIATOR
-
3795802-06016-00 BOLT, FLANGEBOLT, FLANGE
-
3890450-32001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
392D1-12551-00-00 HOSE 7HOSE 7
-
4090450-32001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
4139P-12589-00-00 HOSE 6HOSE 6
-
4290450-22017-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
4390467-11090-00 CLIP, SCISSORCLIP, SCISSOR
-
4439P-1240J-00-00 RADIATOR COVER ASSY 1RADIATOR COVER ASSY 1
-
4590111-06079-00 BOLTBOLT
-
4639P-1246A-00-00 COVER 1COVER 1
-
4739P-1246E-00-00 COVER 2COVER 2
-
4895022-06014-00 BOLT, FLANGEBOLT, FLANGE
-
4990269-06001-00 RIVETRIVET
-
5090467-200A0-00 CLIPCLIP
