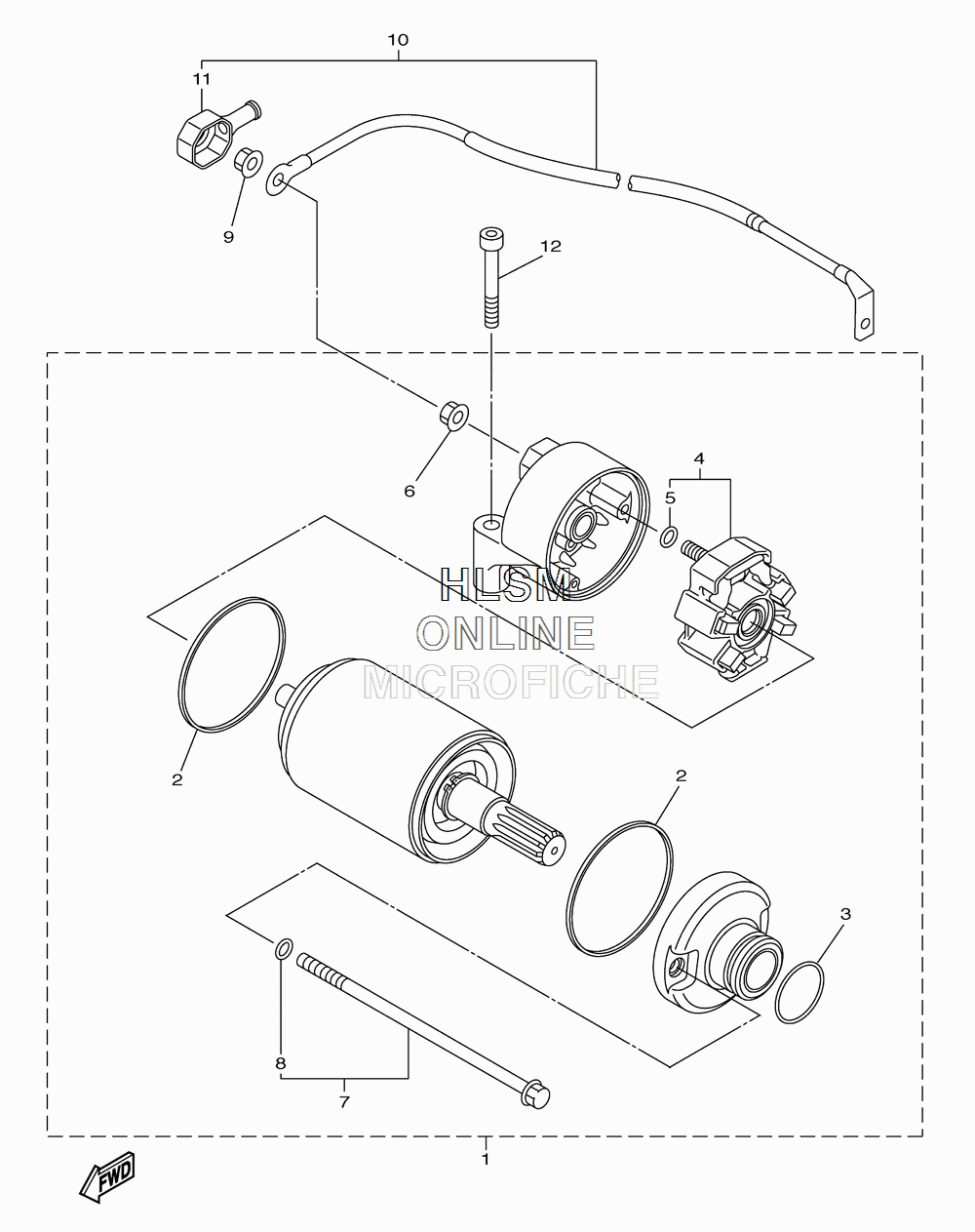

STARTING MOTOR для Yamaha FZ8 - 2012 года выпуска
-
№АртикулНазвание
-
139P-81800-00-00 STARTING MOTOR ASSYSTARTING MOTOR ASSY
-
211H-81844-00-00 ...GASKET...GASKET
-
31FK-81847-00-00 ...O-RING...O-RING
-
44B5-81840-00-00 ...BRUSH HOLDER ASSY...BRUSH HOLDER ASSY
-
53TB-81847-00-00 ......O-RING......O-RING
-
64XV-8182A-00-00 ...NUT...NUT
-
728P-81826-00-00 ...BOLT...BOLT
-
83TB-81847-00-00 ......O-RING......O-RING
-
94XV-8182A-00-00 NUTNUT
-
1039P-81815-00-00 CORD, STARTER MOTORCORD, STARTER MOTOR
-
114B5-81871-00-00 ...CAP...CAP
-
1291312-06040-00 BOLTBOLT
