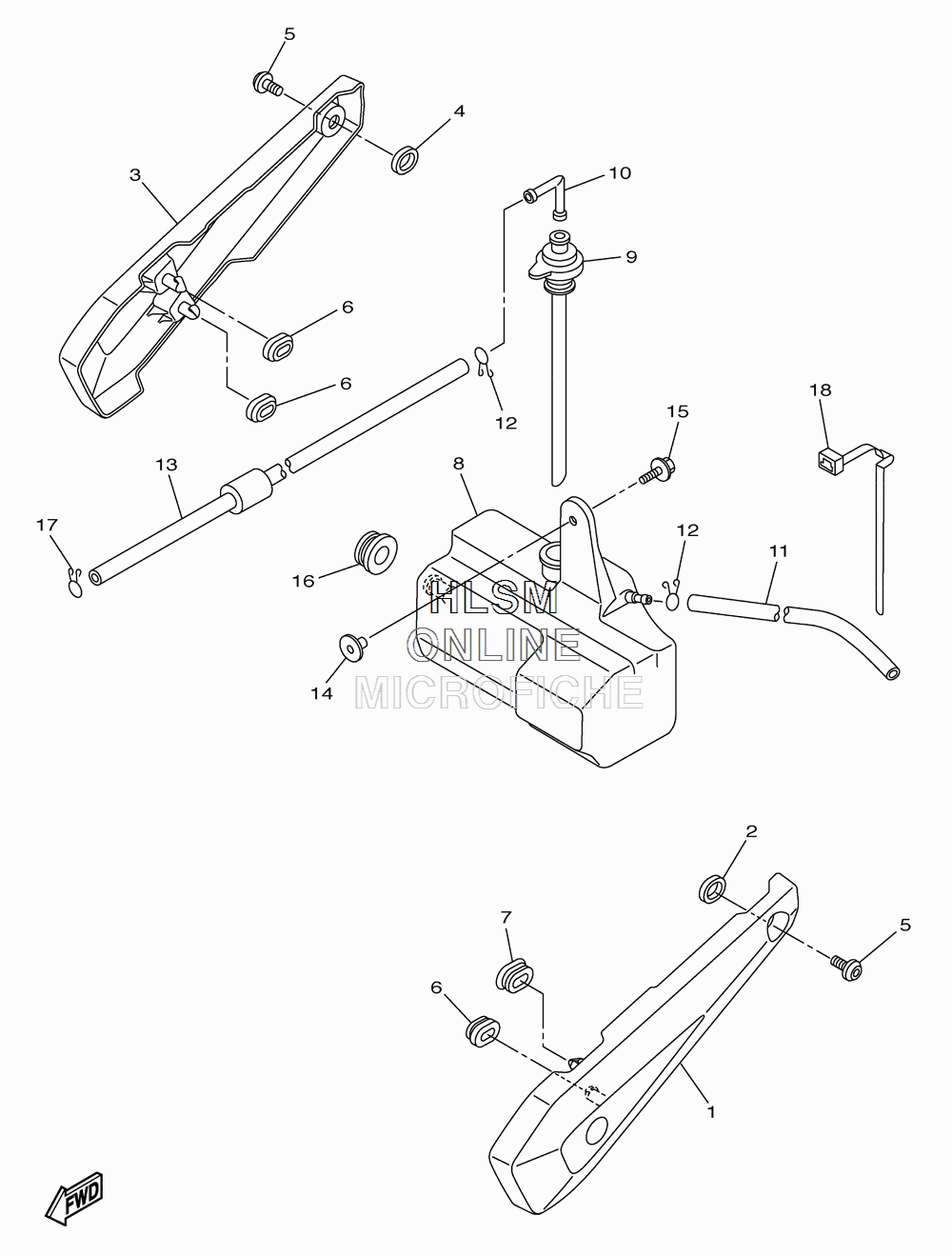

SIDE COVER для Yamaha FZ8 - 2012 года выпуска
-
№АртикулНазвание
-
139P-21711-00-00 COVER, SIDE 1COVER, SIDE 1
-
239P-2174X-00-00 DAMPERDAMPER
-
339P-21721-00-00 COVER, SIDE 2COVER, SIDE 2
-
439P-2174X-00-00 DAMPERDAMPER
-
590149-06298-00 SCREWSCREW
-
690480-01559-00 GROMMETGROMMET
-
72D1-21719-00-00 GROMMETGROMMET
-
82D1-21871-00-00 TANK, RECOVERYTANK, RECOVERY
-
95VY-21875-00-00 CAPCAP
-
1026H-21828-00-00 ELBOWELBOW
-
1190445-08022-00 HOSEHOSE
-
1290467-08075-00 CLIP,SCISSORCLIP,SCISSOR
-
1390445-087K6-00 HOSE (L700)HOSE (L700)
-
1490387-062M9-00 COLLARCOLLAR
-
1590119-06230-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1690480-20001-00 GROMMETGROMMET
-
1790467-08075-00 CLIP,SCISSORCLIP,SCISSOR
-
1890464-07M40-00 CLAMPCLAMP
