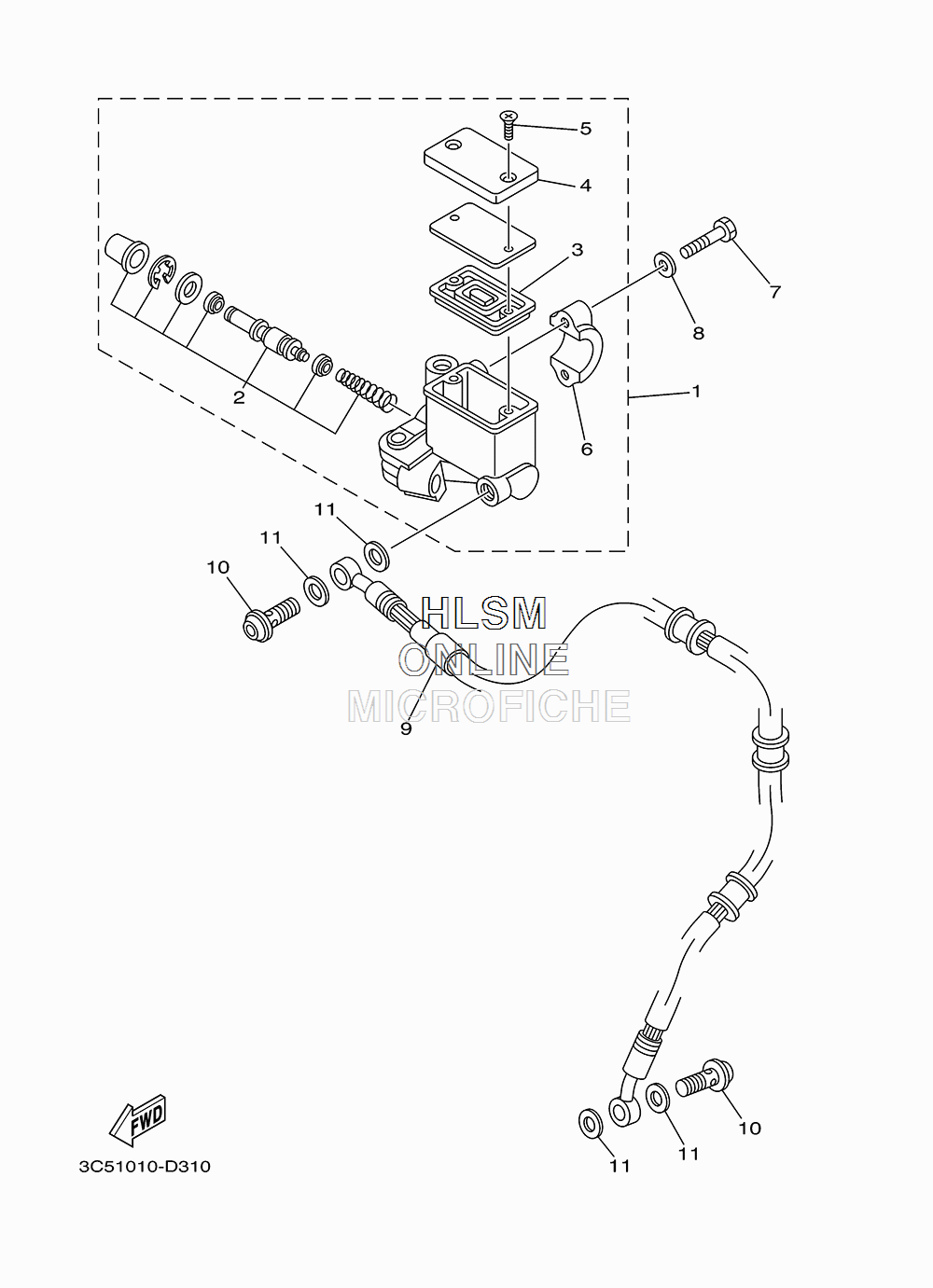

BRAKE - FRONT MASTER CYLINDER для Yamaha XT250 [XT250G] - 2016 года выпуска
-
№АртикулНазвание
-
15XT-2583T-00-00 MASTER CYLINDER ASSYMASTER CYLINDER ASSY
-
25XT-W0041-00-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
355U-25854-00-00 DIAPHRAGM, RESERVOIRDIAPHRAGM, RESERVOIR
-
43GM-25852-22-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
598706-04012-00 ...SCREW, FLAT HEAD...SCREW, FLAT HEAD
-
656A-25867-00-00 ...BRACKET, MASTER CYLINDER...BRACKET, MASTER CYLINDER
-
797007-06025-00 BOLTBOLT
-
892907-06600-00 ...WASHER, PLATE...WASHER, PLATE
-
93C5-25872-00-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
1090401-10172-00 BOLT, UNIONBOLT, UNION
-
1190430-10005-00 GASKETGASKET
