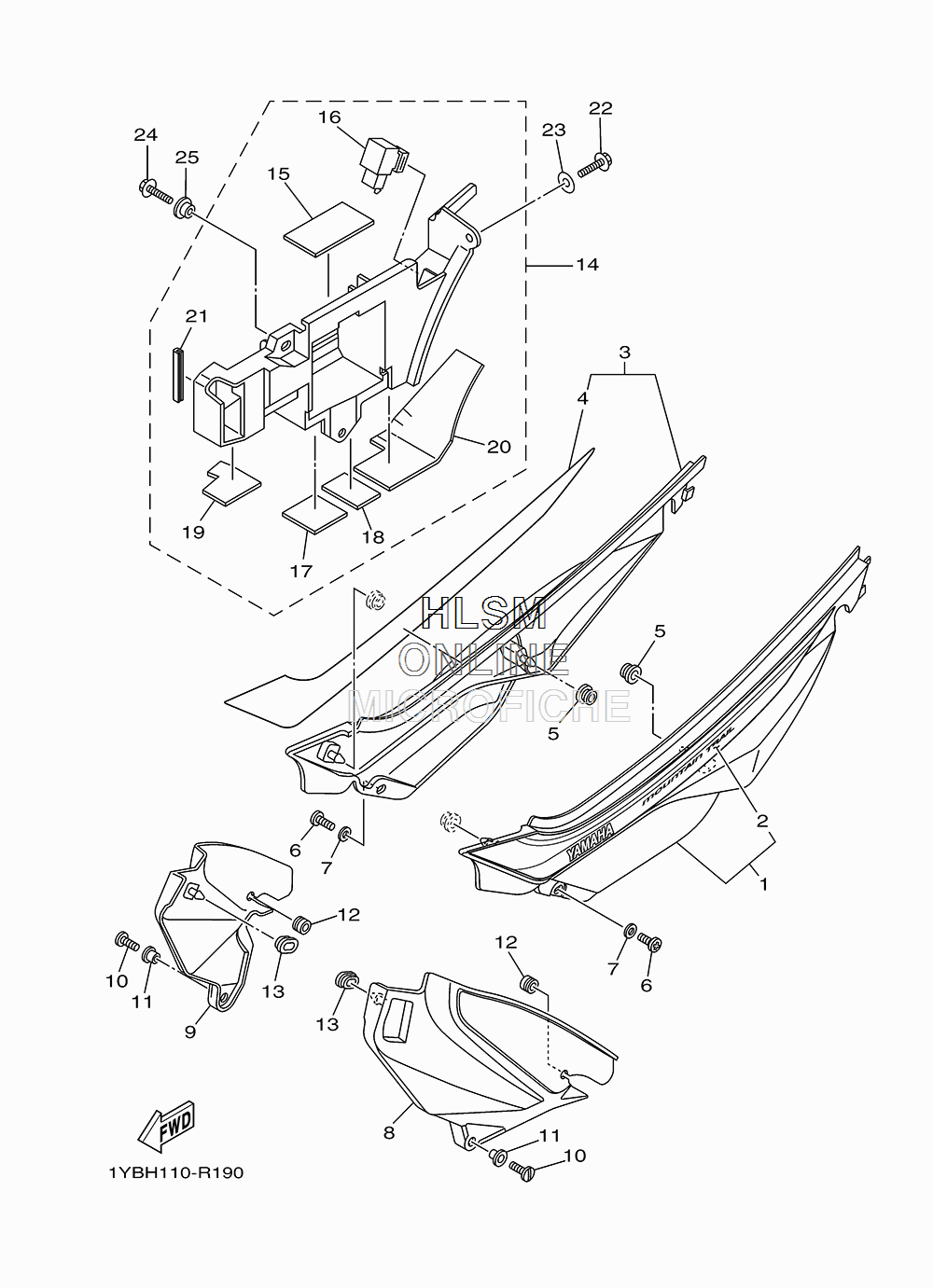

SIDE COVER для Yamaha XT250 [XT250G] - 2016 года выпуска
-
№АртикулНазвание
-
13C5-Y2171-V0-00 COVER, SIDE 1COVER, SIDE 1
-
23C5-2173E-P0-00 ...GRAPHIC 1...GRAPHIC 1
-
33C5-Y2172-V0-00 COVER, SIDE 2COVER, SIDE 2
-
43C5-2173F-P0-00 ...GRAPHIC 2...GRAPHIC 2
-
590480-01558-00 GROMMETGROMMET
-
690149-06298-00 SCREW SPEC'L SHAPESCREW SPEC'L SHAPE
-
790201-06058-00 WASHER, PLATEWASHER, PLATE
-
83C5-21731-00-00 COVER, SIDE 3COVER, SIDE 3
-
93C5-21741-00-00 COVER, SIDE 4COVER, SIDE 4
-
1090146-06014-00 SCREW, OVAL FILLISTERSCREW, OVAL FILLISTER
-
1190387-06048-00 ...COLLAR...COLLAR
-
1290480-10334-00 GROMMETGROMMET
-
1390480-01141-00 GROMMETGROMMET
-
141YB-8210E-20-00 BATTERY BOX ASSYBATTERY BOX ASSY
-
155EJ-2414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
-
164MY-83350-01-00 FLASHER RELAY ASSYFLASHER RELAY ASSY
-
175XT-2174A-00-00 ...INSULATOR, SIDE COVER...INSULATOR, SIDE COVER
-
185XT-2174T-00-00 ...INSULATOR, SIDE COVER 2...INSULATOR, SIDE COVER 2
-
195XT-2172S-00-00 ...INSULATOR 3...INSULATOR 3
-
205XT-2173S-00-00 ...INSULATOR 4...INSULATOR 4
-
2131A-24188-01-00 ...MOLD, FUEL TANK...MOLD, FUEL TANK
-
2290105-06057-00 BOLT, FLANGEBOLT, FLANGE
-
2390201-06063-00 WASHER, PLATEWASHER, PLATE
-
2495802-06014-00 BOLT, FLANGEBOLT, FLANGE
-
2590387-06066-00 COLLARCOLLAR
