TAILLIGHT для Yamaha XT250 [XT250G] - 2016 года выпуска
-

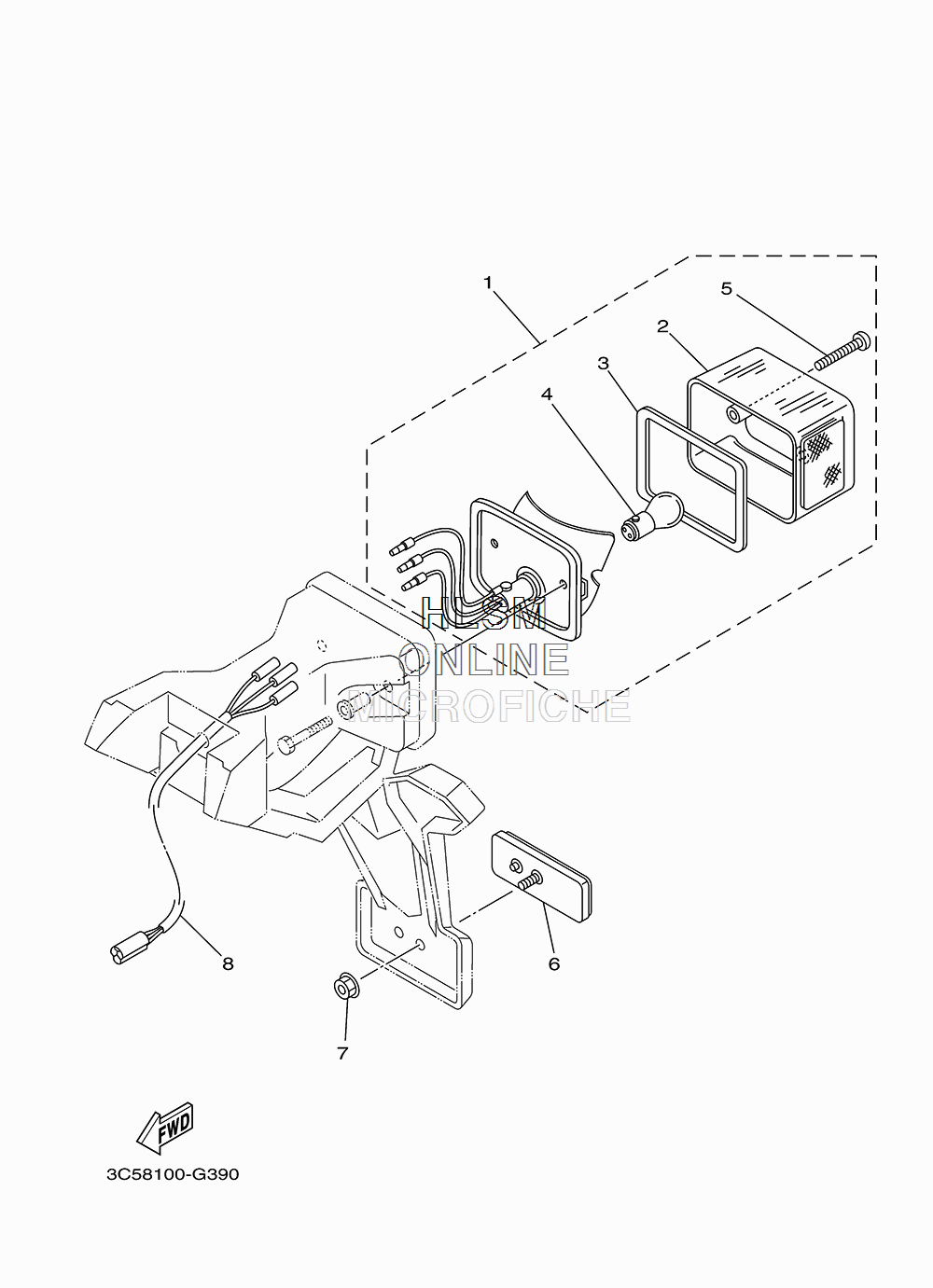

№АртикулНазвание
-
11W9-84710-61-00 TAILLIGHT UNIT ASSYTAILLIGHT UNIT ASSY
-
21M1-84521-60-00 ...LENS, TAILLIGHT...LENS, TAILLIGHT
-
31M1-84523-60-00 ...GASKET, LENS...GASKET, LENS
-
4256-84714-61-00 ...BULB (12V-27/8W)...BULB (12V-27/8W)
-
51M1-84524-60-00 ...SCREW, LENS FITTING...SCREW, LENS FITTING
-
63Y6-85130-02-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
795702-05500-00 NUT, FLANGENUT, FLANGE
-
83C5-84717-00-00 CORD, TAILLIGHTCORD, TAILLIGHT
