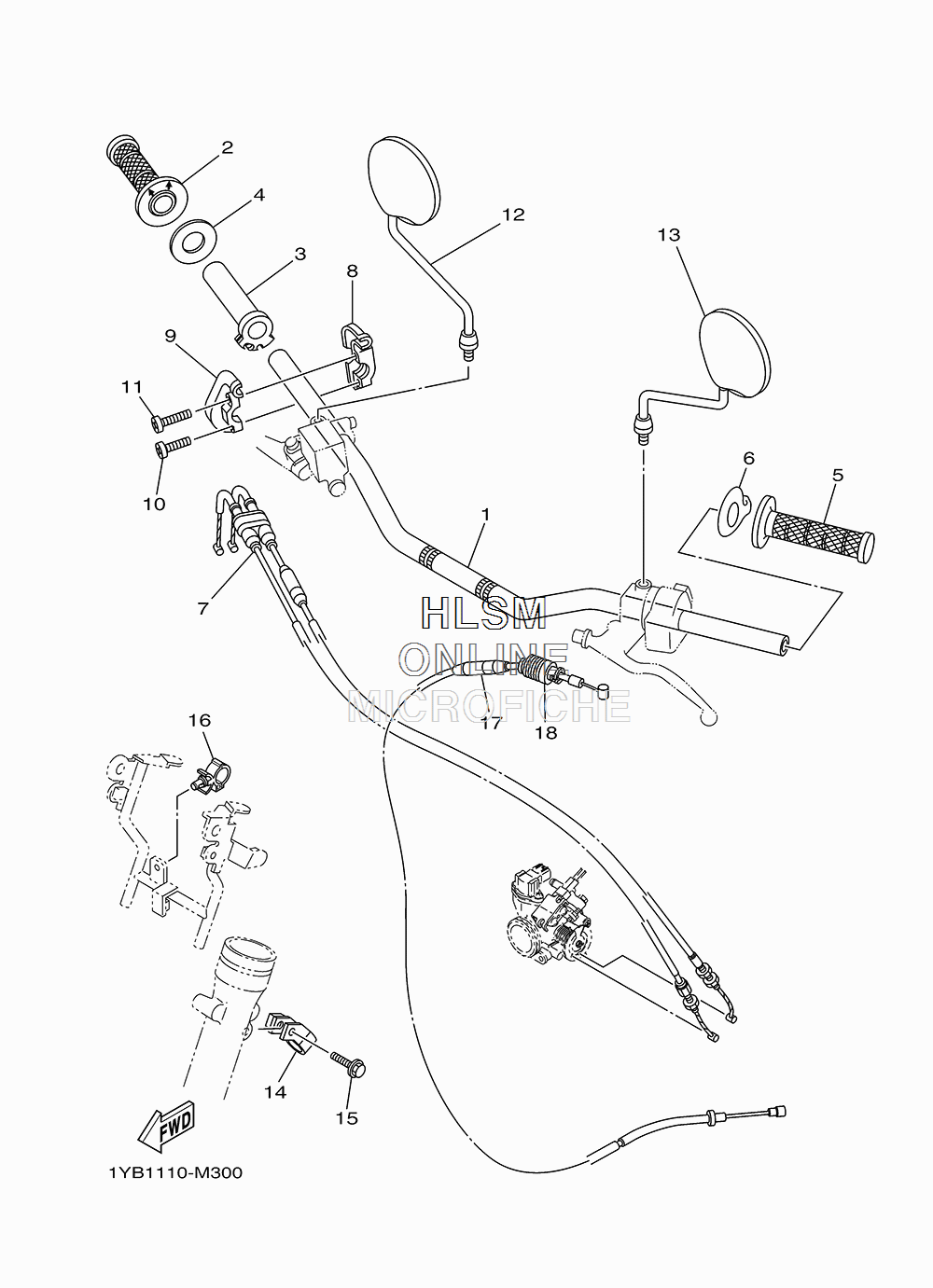

HANDLEBAR W/ CABLES - MIRRORS для Yamaha XT250 [XT250G] - 2016 года выпуска
-
№АртикулНазвание
-
13C5-26111-00-00 HANDLEBARHANDLEBAR
-
24GY-26242-00-00 ...GRIP (RIGHT)...GRIP (RIGHT)
-
35BE-26243-00-00 TUBE, THROTTLE GUIDETUBE, THROTTLE GUIDE
-
43Y1-26249-00-00 RING, LEAFRING, LEAF
-
54GY-26241-00-00 GRIPGRIP
-
64RR-26129-00-00 WASHERWASHER
-
73C5-26302-10-00 THROTTLE CABLE ASSYTHROTTLE CABLE ASSY
-
83LN-26281-01-00 CAP, GRIP UPPERCAP, GRIP UPPER
-
93LN-26282-01-00 CAP, GRIP LOWERCAP, GRIP LOWER
-
1098507-05020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1198507-05025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
123Y1-26290-00-00 BACK MIRROR ASSY (R.H)BACK MIRROR ASSY (R.H)
-
133Y1-26290-10-00 BACK MIRROR ASSY (L.H)BACK MIRROR ASSY (L.H)
-
143C5-25886-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
1595027-06025-00 BOLT, FLANGEBOLT, FLANGE
-
1690464-16012-00 CLAMPCLAMP
-
173C5-26335-00-00 CABLE, CLUTCHCABLE, CLUTCH
-
181E6-26342-00-00 BOOT, CABLEBOOT, CABLE
