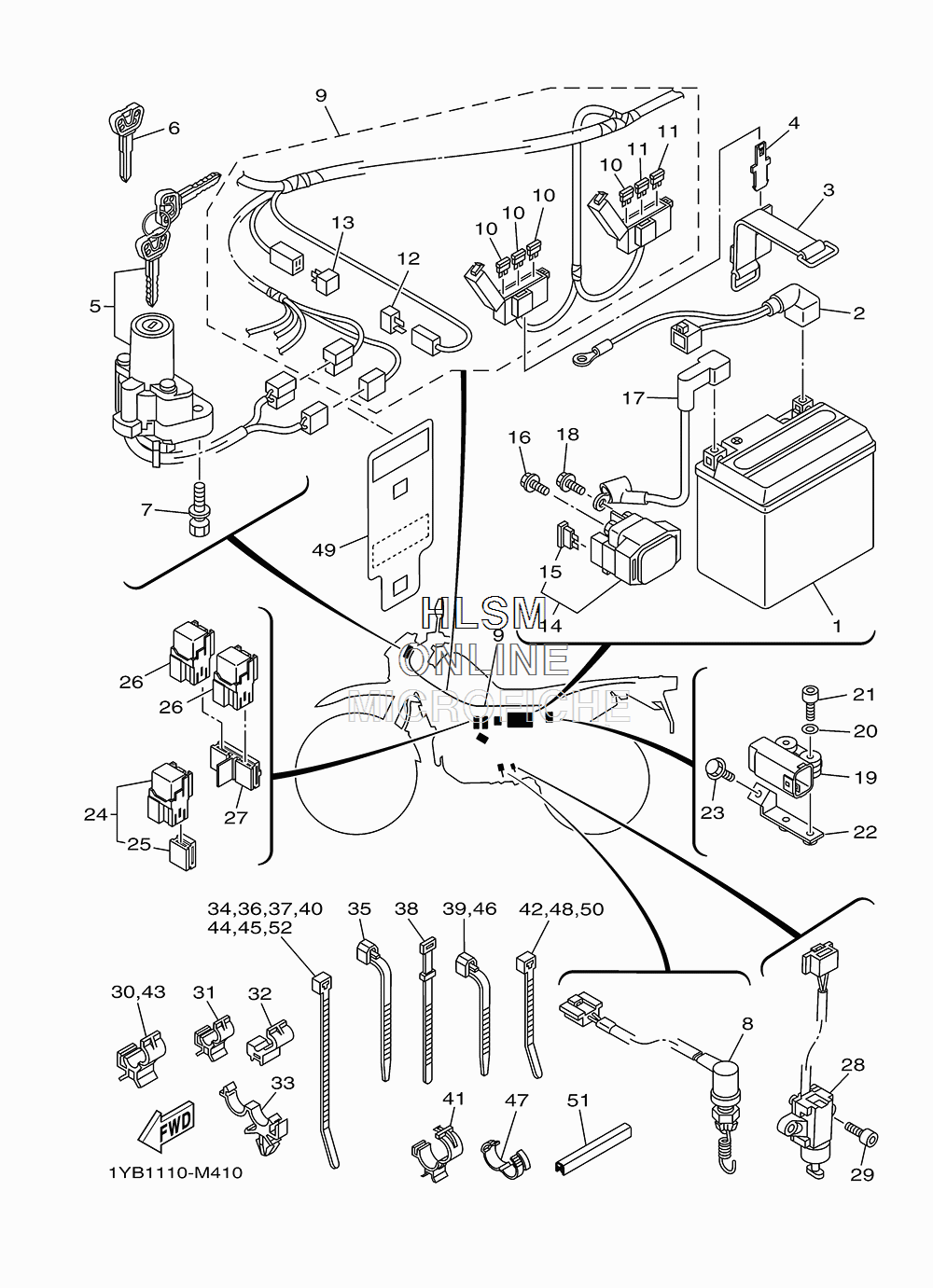

ELECTRICAL для Yamaha XT250 [XT250G] - 2016 года выпуска
-
№АртикулНазвание
-
11S4-82100-10-00 BATTERY ASSY (YTZ7S)BATTERY ASSY (YTZ7S)
-
25XT-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
35XT-82131-00-00 BAND, BATTERYBAND, BATTERY
-
45XT-82171-00-00 STAY, FUSE BOXSTAY, FUSE BOX
-
53C5-82501-10-00 MAIN SWITCH STEERING LOCKMAIN SWITCH STEERING LOCK
-
64BH-82511-09-00 BLANK KEY (AP)BLANK KEY (AP)
-
790109-08195-00 BOLTBOLT
-
85C1-82530-00-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
91YB-82590-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
105JJ-82151-30-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
115JJ-82151-10-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
124WA-81980-00-00 ...DIODE ASSY...DIODE ASSY
-
133XV-81980-00-00 ...DIODE ASSY...DIODE ASSY
-
144YR-81940-02-00 STARTER RELAY ASSY (RC19-018)STARTER RELAY ASSY (RC19-018)
-
151AE-82151-00-00 ...FUSE (30A-BL)...FUSE (30A-BL)
-
1695027-06008-00 BOLT, FLANGEBOLT, FLANGE
-
175XT-82115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
1895027-06008-00 BOLT, FLANGEBOLT, FLANGE
-
195VU-82576-01-00 SENSOR, LEAN ANGLESENSOR, LEAN ANGLE
-
2090201-047A2-00 WASHER, PLATEWASHER, PLATE
-
2191312-04025-00 BOLTBOLT
-
225XT-2141A-00-00 BRACKET 1BRACKET 1
-
2395022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
241ST-81950-00-00 RELAY ASSY (1ST-00)RELAY ASSY (1ST-00)
-
255JJ-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
-
265UM-81950-E0-00 RELAY ASSY (5UM-E0)RELAY ASSY (5UM-E0)
-
275XT-81952-00-00 HOLDER, RELAYHOLDER, RELAY
-
285XT-82566-00-00 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
2990110-05227-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3090464-10190-00 CLAMPCLAMP
-
3190464-08189-00 CLAMPCLAMP
-
3290464-05188-00 CLAMPCLAMP
-
3390464-16006-00 CLAMPCLAMP
-
341UA-82591-00-00 ...BAND...BAND
-
3590464-13073-00 CLAMPCLAMP
-
361UA-82591-00-00 ...BAND...BAND
-
371UA-82591-00-00 ...BAND...BAND
-
383TB-83936-00-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
3990464-13077-00 CLAMPCLAMP
-
401UA-82591-00-00 ...BAND...BAND
-
4190464-20191-00 CLAMPCLAMP
-
4290465-10098-00 CLAMPCLAMP
-
4390464-10190-00 CLAMPCLAMP
-
441UA-82591-00-00 ...BAND...BAND
-
451UA-82591-00-00 ...BAND...BAND
-
4690464-13077-00 CLAMPCLAMP
-
4790464-16001-00 CLAMPCLAMP
-
4890465-10098-00 CLAMPCLAMP
-
492D1-82589-00-00 PROTECTER, WIRE HARNESSPROTECTER, WIRE HARNESS
-
5090465-10098-00 CLAMPCLAMP
-
515VN-24188-00-00 MOLD, FUEL TANKMOLD, FUEL TANK
-
521UA-82591-00-00 ...BAND...BAND
