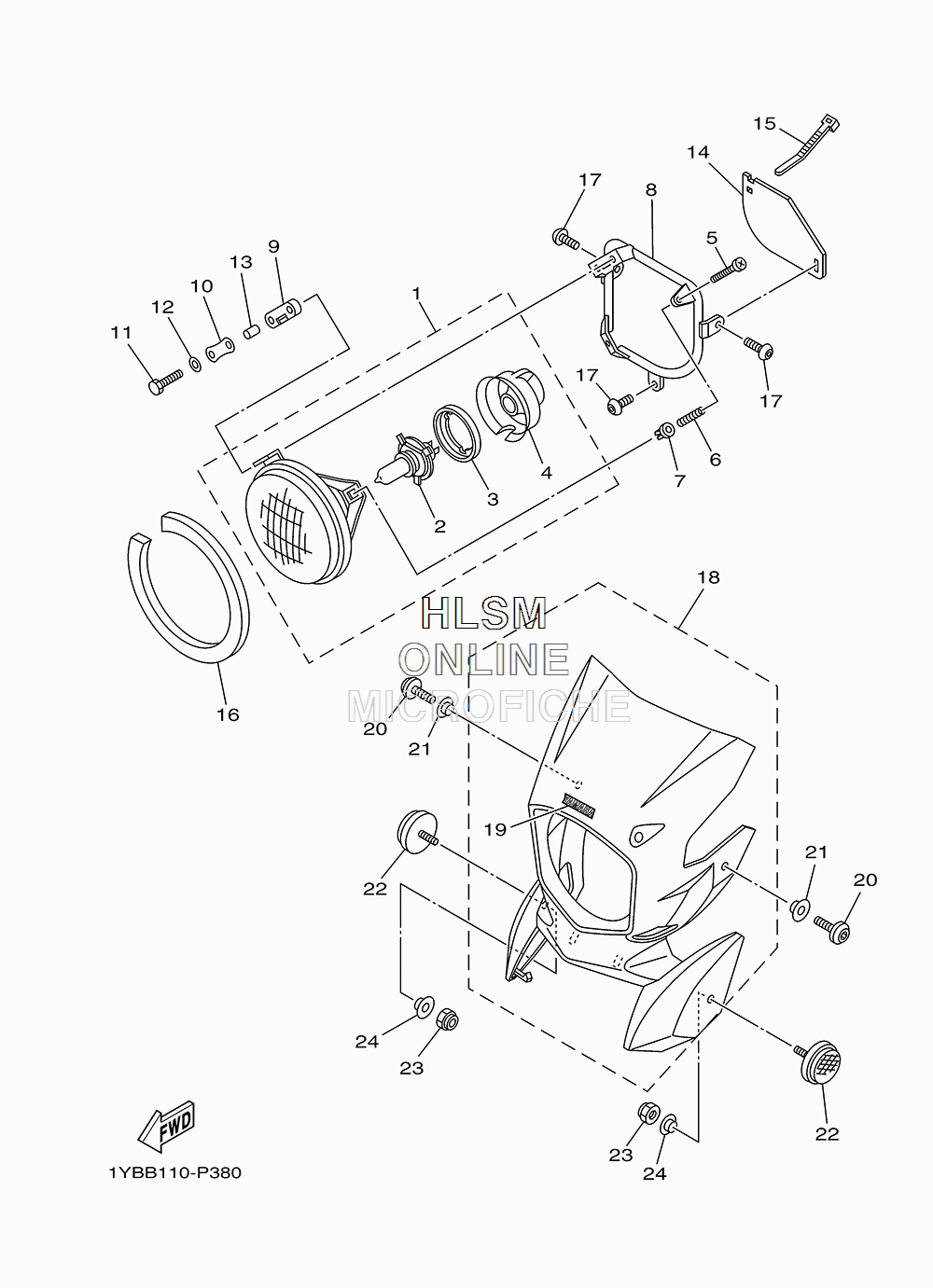

HEADLIGHT для Yamaha XT250 [XT250G] - 2016 года выпуска
-
№АртикулНазвание
-
13C5-84320-00-00 LENS ASSYLENS ASSY
-
22F9-84314-00-00 BULB (12V-60/55W) ((H4) HALOGEN)BULB (12V-60/55W) ((H4) HALOGEN)
-
32F9-84375-00-00 SETTING PLATE, BULBSETTING PLATE, BULB
-
42F9-84397-01-00 COVER, SOCKETCOVER, SOCKET
-
52F9-84331-00-00 SCREW, RIM ADJUSTINGSCREW, RIM ADJUSTING
-
6341-84332-60-00 SPRING, SCREWSPRING, SCREW
-
74B4-84334-00-00 NUT, ADJUSTINGNUT, ADJUSTING
-
83C5-84315-00-00 RIM, HEADLIGHTRIM, HEADLIGHT
-
93C5-84366-00-00 DAMPER, HEADLIGHT 1DAMPER, HEADLIGHT 1
-
103C5-84127-00-00 WASHER, SPECIALWASHER, SPECIAL
-
1197002-05020-00 BOLTBOLT
-
1292902-05600-00 WASHER, PLATEWASHER, PLATE
-
1390387-05383-00 COLLARCOLLAR
-
143C5-84144-00-00 COVER, HEADLIGHTCOVER, HEADLIGHT
-
1590465-10098-00 CLAMPCLAMP
-
163C5-84559-00-00 DAMPERDAMPER
-
1792012-06010-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
183C5-Y8450-T0-00 COVER COMP. ASSYCOVER COMP. ASSY
-
193WF-2153E-10-00 ...EMBLEM, YAMAHA...EMBLEM, YAMAHA
-
2090111-06038-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2190387-061M0-00 COLLARCOLLAR
-
222EK-85111-00-00 REFLECTOR, FRONT 1REFLECTOR, FRONT 1
-
2395602-05100-00 NUT, UNUT, U
-
2490387-05038-00 COLLARCOLLAR
