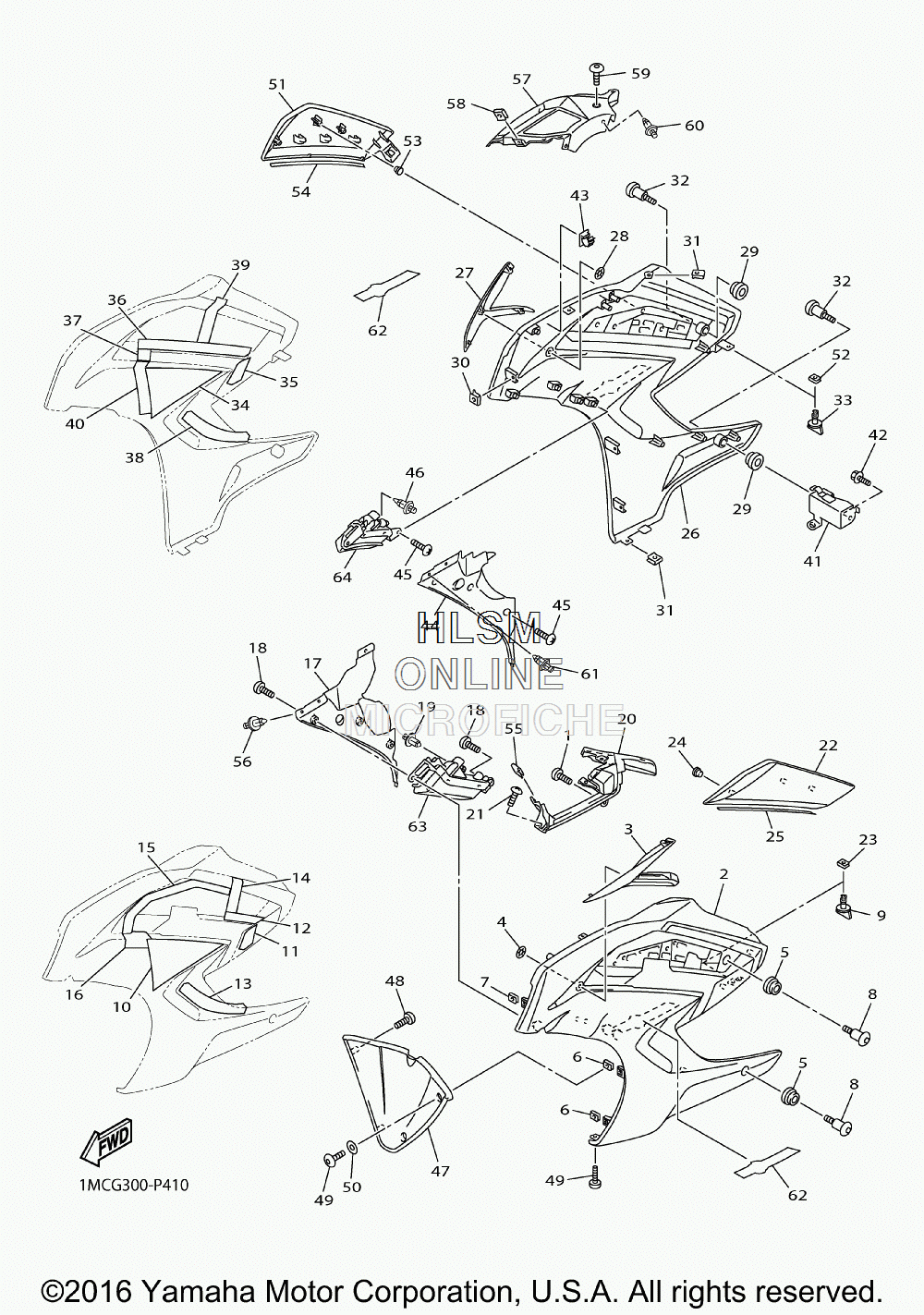

COWLING 2 для Yamaha FJR 1300ES - 2017 года выпуска
-
№АртикулНазвание
-
197702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
21MC-2835J-00-P0 BODY, FRONT UNDER 1 (SMX - BLACK METALLIC)BODY, FRONT UNDER 1 (SMX - BLACK METALLIC)
-
31MC-2835U-00-P1 PANEL 1 (S3 - SILVER 3)PANEL 1 (S3 - SILVER 3)
-
490183-05M02-00 NUT, SPRINGNUT, SPRING
-
590480-13398-00 GROMMETGROMMET
-
690183-05076-00 NUT, SPRINGNUT, SPRING
-
790183-05042-00 NUT, SPRINGNUT, SPRING
-
890109-06037-00 BOLTBOLT
-
91MC-28386-00-00 HEADHEAD
-
101MC-28371-00-00 DAMPERDAMPER
-
111MC-28415-00-00 DAMPER 1DAMPER 1
-
121MC-28425-00-00 DAMPER 3DAMPER 3
-
1390520-50004-00 DAMPER, PLATEDAMPER, PLATE
-
1490520-40002-00 DAMPER, PLATEDAMPER, PLATE
-
1590520-40003-00 DAMPER, PLATEDAMPER, PLATE
-
161MC-2847P-00-00 DAMPER 9DAMPER 9
-
173P6-2836K-00-00 PANEL, INNER 1PANEL, INNER 1
-
1897702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
1990269-06001-00 RIVETRIVET
-
201MC-2836M-00-00 PANEL, INNER 3PANEL, INNER 3
-
2197702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
221MC-2830C-00-P0 VISOR, SIDE 1 (SMX - BLACK METALLIC)VISOR, SIDE 1 (SMX - BLACK METALLIC)
-
235PW-2177L-01-00 PLATE, SPRINGPLATE, SPRING
-
2490338-06018-00 PLUGPLUG
-
2590520-01003-00 DAMPER, PLATEDAMPER, PLATE
-
261MC-2835K-00-P0 BODY, FRONT UNDER 2BODY, FRONT UNDER 2
-
271MC-2835V-00-P1 PANEL 2 (S3 - SILVER 3)PANEL 2 (S3 - SILVER 3)
-
2890183-05M02-00 NUT, SPRINGNUT, SPRING
-
2990480-13398-00 GROMMETGROMMET
-
3090183-05042-00 NUT, SPRINGNUT, SPRING
-
3190183-05076-00 NUT, SPRINGNUT, SPRING
-
3290109-06037-00 BOLTBOLT
-
331MC-28386-00-00 HEADHEAD
-
341MC-28372-00-00 DAMPERDAMPER
-
351MC-28416-00-00 DAMPER 2DAMPER 2
-
361MC-28435-00-00 DAMPER 4DAMPER 4
-
3790520-30006-00 DAMPER, PLATEDAMPER, PLATE
-
3890520-50004-00 DAMPER, PLATEDAMPER, PLATE
-
3990520-40002-00 DAMPER, PLATEDAMPER, PLATE
-
401MC-2847R-00-00 DAMPER 10DAMPER 10
-
411MC-2836F-00-00 BRACKET 3BRACKET 3
-
4295822-06012-00 BOLT, FLANGEBOLT, FLANGE
-
4390464-54086-00 CLAMPCLAMP
-
443P6-2836L-00-00 PANEL, INNER 2PANEL, INNER 2
-
4597702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
4690269-06001-00 RIVETRIVET
-
473P6-28385-10-P0 COVER, UNDER (SMX - BLACK METALLIC)COVER, UNDER (SMX - BLACK METALLIC)
-
4897702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
4990110-05201-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
5090202-05180-00 WASHER, PLATEWASHER, PLATE
-
511MC-2830D-00-P0 VISOR, SIDE 2 (SMX - BLACK METALLIC)VISOR, SIDE 2 (SMX - BLACK METALLIC)
-
525PW-2177L-01-00 PLATE, SPRINGPLATE, SPRING
-
5390338-06018-00 PLUGPLUG
-
5490520-01003-00 DAMPER, PLATEDAMPER, PLATE
-
5590183-05076-00 NUT, SPRINGNUT, SPRING
-
5690269-06008-00 RIVETRIVET
-
571MC-2836N-01-00 PANEL, INNER 4PANEL, INNER 4
-
5890183-05076-00 NUT, SPRINGNUT, SPRING
-
5990111-05021-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
6090269-06008-00 RIVETRIVET
-
6190269-06008-00 RIVETRIVET
-
621MC-2839B-00-00 EMBLEM 3DEMBLEM 3D
-
631MC-83310-10-00 FRONT FLASHER LIGHT ASSY 1FRONT FLASHER LIGHT ASSY 1
-
641MC-83320-10-00 FRONT FLASHER LIGHT ASSY 2FRONT FLASHER LIGHT ASSY 2
